FUHR NB649N - 3 Installation Advice; Delivery Scope; Terminal Connection Diagrams

WWW.FUHR.DE6
834
autotronic
881
multitronic
approx. 300 mm (depending on the door situation)
Cable G
Enclosed in packaging
Cable H
Enclosed in packaging
Radio fingerprint scanner NB649N
on the outside of the door
1234567
Cable 1, 2, 3
of the doors’
tappet contacts
6 = +12VDC (RED)
5 = 0V (BLACK)
3 = +12VDC (RED)
2 = 0V (BLACK)
1 = (WHITE)
CABLE TO RADIO MODULE
PLEASE NOTE:
Please observe the +/-
cable’s correct polarity!
1 2 3 5 6
Note the plug assignment!
approx. 300 mm (depending on the door situation)
Cable G
Enclosed in packaging
Cable H
Enclosed in packaging
Radio fingerprint scanner NB649N
on the outside of the door
1234567
Cable 1, 2, 3
of the doors’
tappet contacts
6 = +12VDC (RED)
5 = 0V (BLACK)
3 = +12VDC (RED)
2 = 0V (BLACK)
1 = (WHITE)
CABLE TO RADIO MODULE
PLEASE NOTE:
Please observe the +/-
cable’s correct polarity!
1 2 3 5 6
Note the plug assignment!

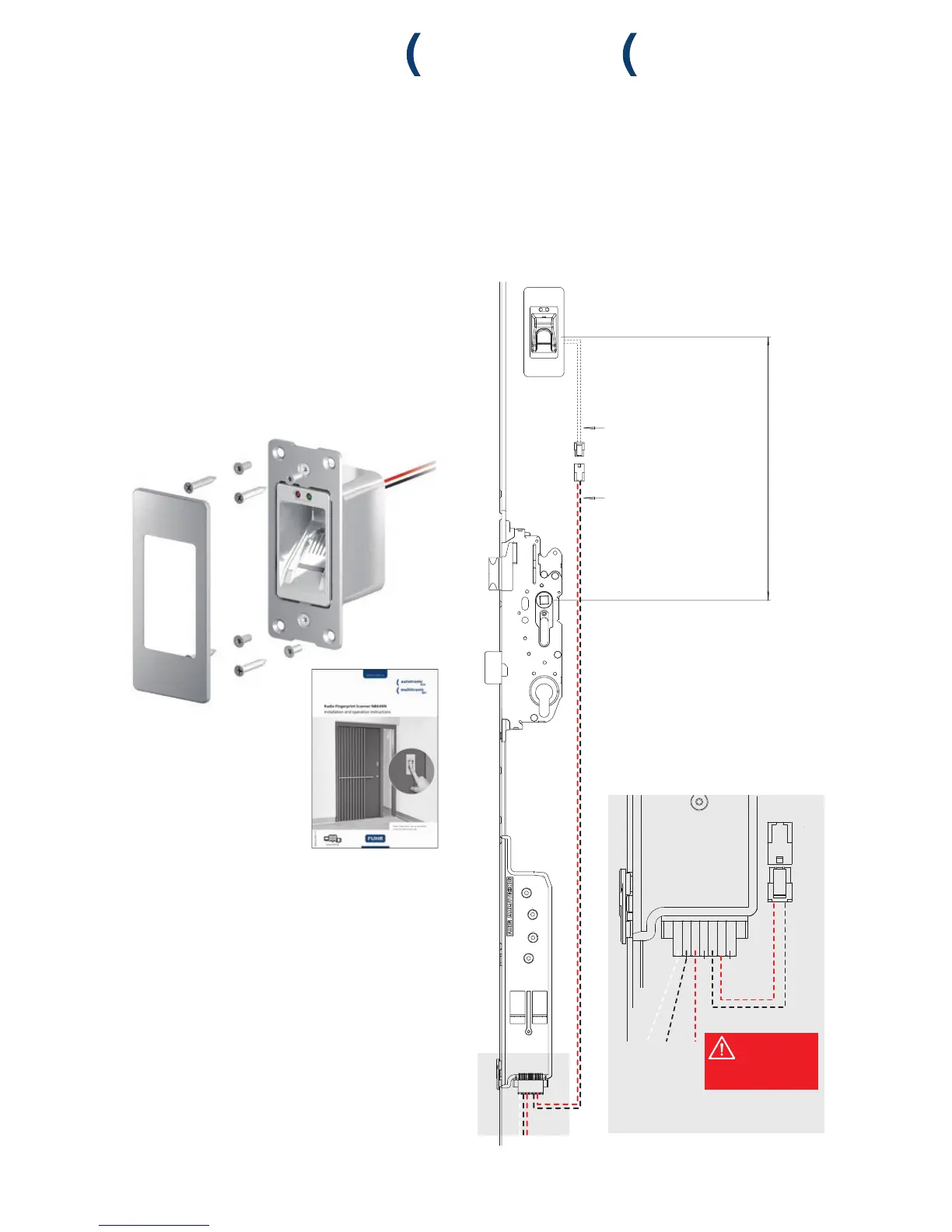

3 Installation advice
3.1 Delivery scope
• Radio fi ngerprint scanner with fl at stainless
steel cover and connection cable (1600 mm)
• 4 fi xing screws M3 x 8 mm for aluminium +
steel
• 4 fi xing screws 3 x 20 mm for timber + PVC
• Installation and operating instructions
3.2 Terminal connection diagrams
