OUTDOOR UNIT
OUTDOOR UNIT
2005.03.24
4
INDOOR UNIT
INDOOR UNIT
EVAPORATOR
Refrigerant pipe
19.05mm (3/4")
Refrigerant pipe
19.05mm (3/4")

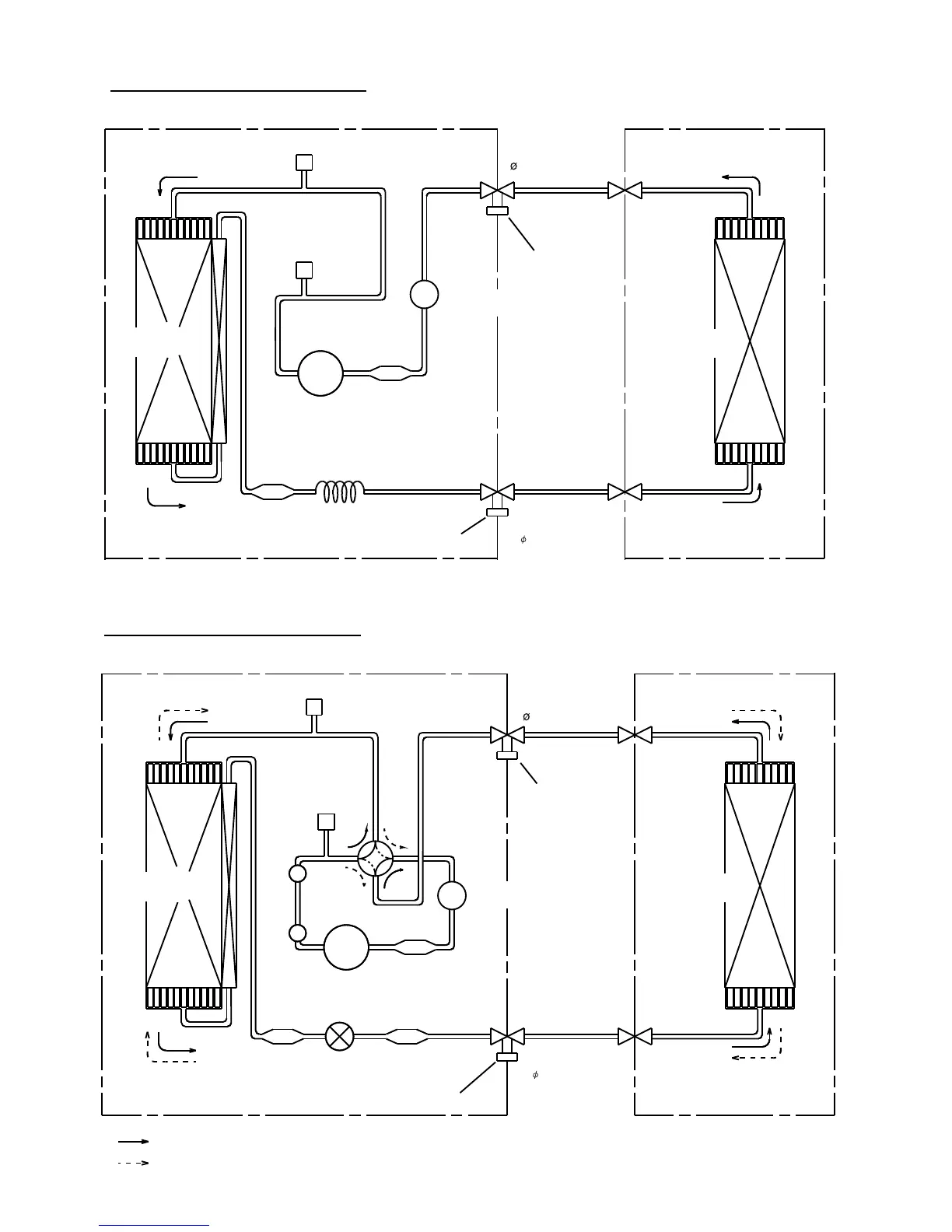

REFRIGERANT SYSTEM DIAGRAM
Models : RD-60FA / ROD-60FA
Models : RD-60UA / ROD-60UA
: COOL
: HEAT
EVAPORATOR
Refrigerant pipe
9.53mm (3/8")
Refrigerant pipe
9.53mm (3/8")
Charging valve
Charging
Valve
ACCUMULATOR
ACCUMULATOR
STRAINER
COMPRESSOR
EXPANSION
VALVE
STRAINER
CONDENSER
CONDENSER
STRAINER
4-way
Valve
MUFFLER x 2
STRAINER
STRAINER
CAPPILLARY
TUBE
COMPRESSOR
PRESSURE
CHECK VALVE
PRESSURE
CHECK VALVE
HIGH
PRESSURE
SWITCH
HIGH
PRESSURE
SWITCH
Charging
Valve
Charging Valve
