Product Overview
46
Product Overview
2

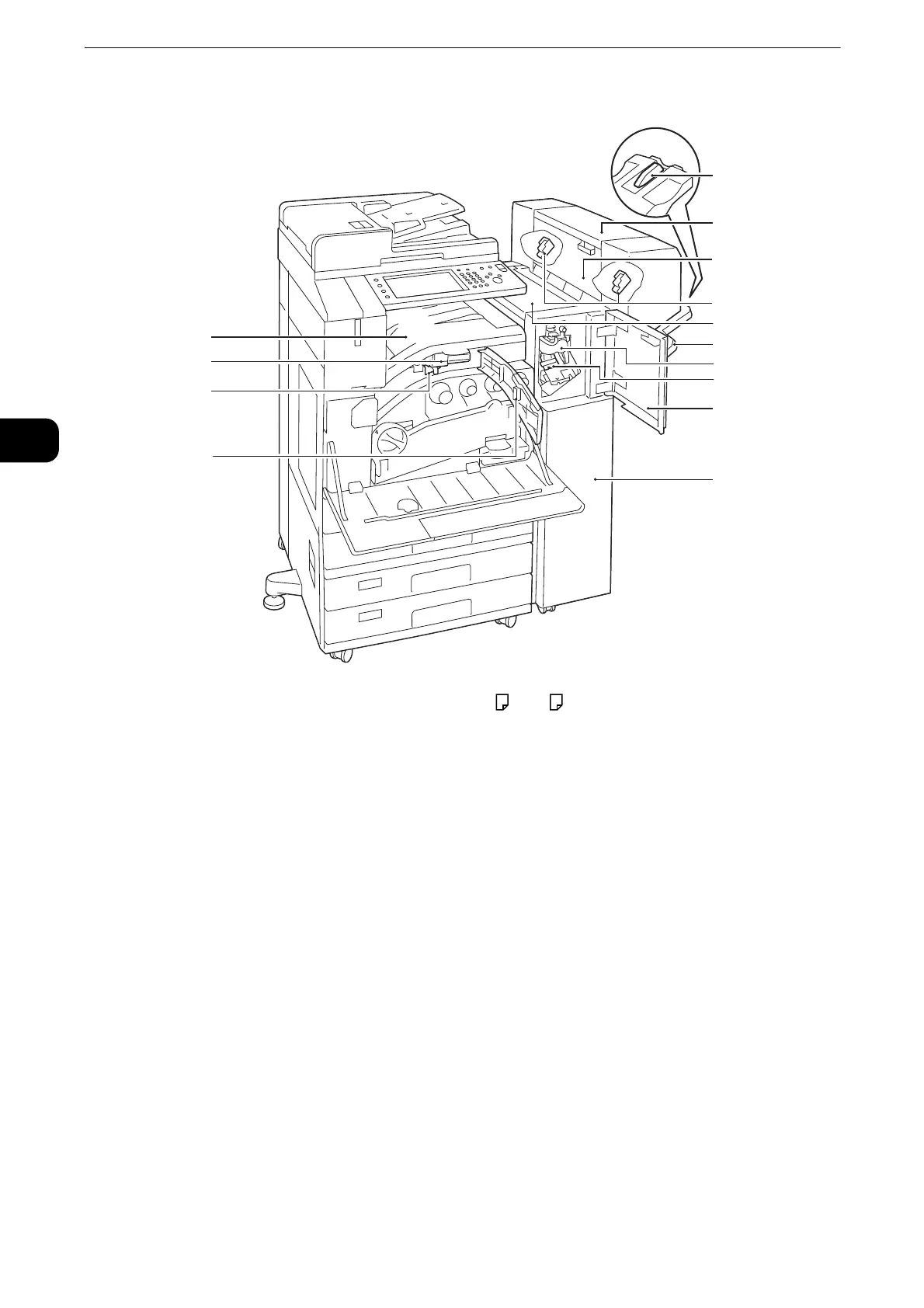

îš„ Finisher B1 (optional)
1 Tray attachment
Install this attachment when delivering A4 or B5 paper to the finisher tray without
stapling.
z
For more information, refer to "Installing the Tray Attachment on the Finisher B1" (P.78).
2 Booklet unit (optional)
Staples creased outputs.
3 Booklet unit side cover
Open this cover when replacing the booklet staple cartridge.
4 Booklet staple cartridge
Contains staples. Remove this cartridge when replacing or adding staples, or clearing staple
jams.
5Top cover
Open this cover to clear paper jams.
6Finisher tray
Stapled or creased outputs are delivered here.
7 Creaser unit
Creases outputs in half.
8 Staple cartridge
Contains staples.
9Front cover
Open this cover when clearing paper jams or replacing staples.
14
13
12
11
3
4
5
6
7
9
10
2
1
8
