Machine Components
45
Product Overview
2

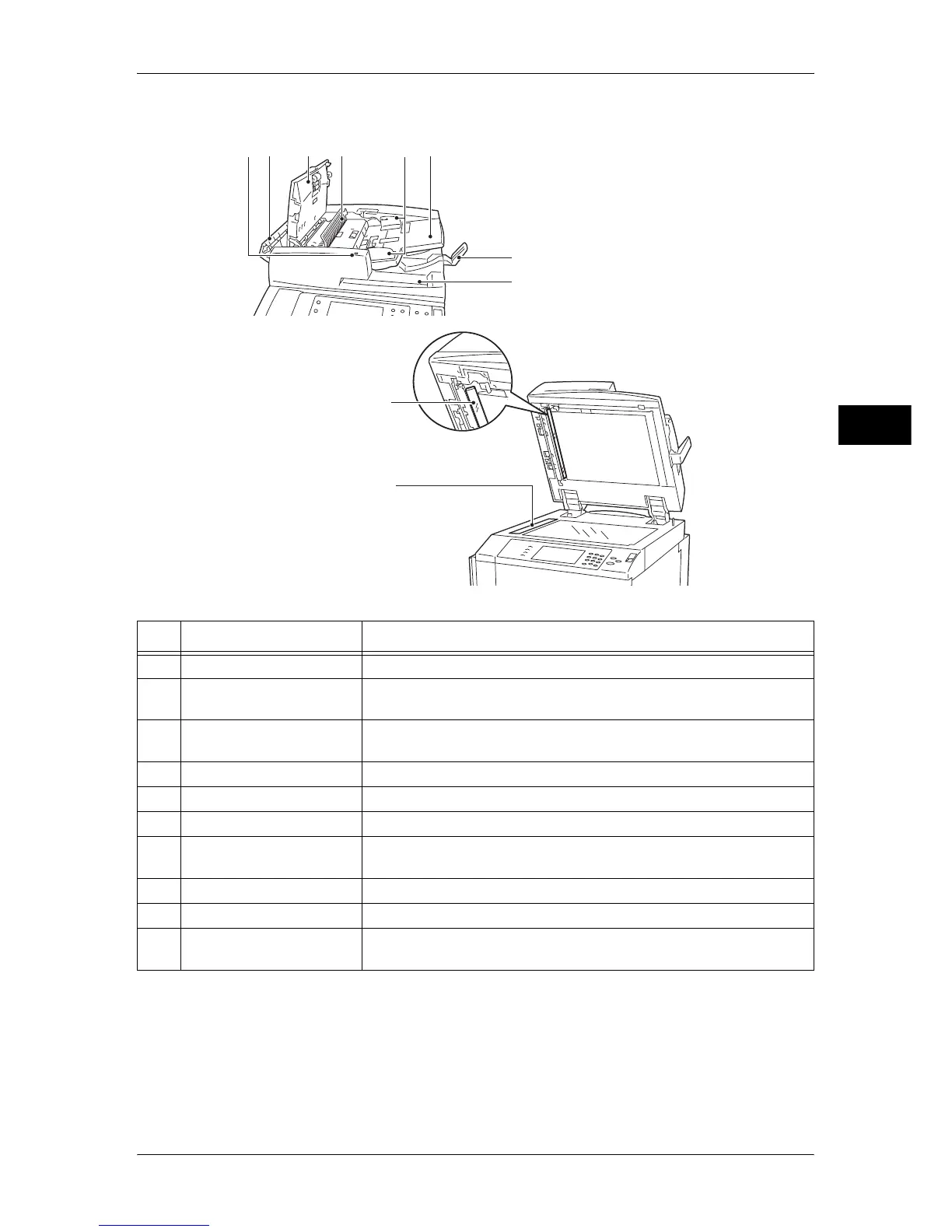

Duplex automatic document feeder
Note • In this guide, the duplex automatic document feeder is referred to as the “document feeder”
or “DADF”.
No. Component Function
1 Confirmation indicator Lights up when a document is loaded correctly.
2 Left cover The left cover slightly opens when the top cover is opened. Open this
cover widely to clear paper jams.
3 Top cover Open this cover to access the insides of the machine to clear paper
jams.
4 Inner cover Open this cover to clear paper jams.
5 Document guides Use these guides to align the edges of documents.
6 Document feeder tray Load documents here.
7 Document stopper Used when copying or scanning large size documents such as A3.
Open the stopper rightward when using it.
8 Document output tray Scanned documents are delivered here.
9 Optical glass Scans the backside of a loaded document.
10 Constant velocity transport
glass
Scans a loaded document.
8
7
12 3 5 6
4
10
9
To Next Page
