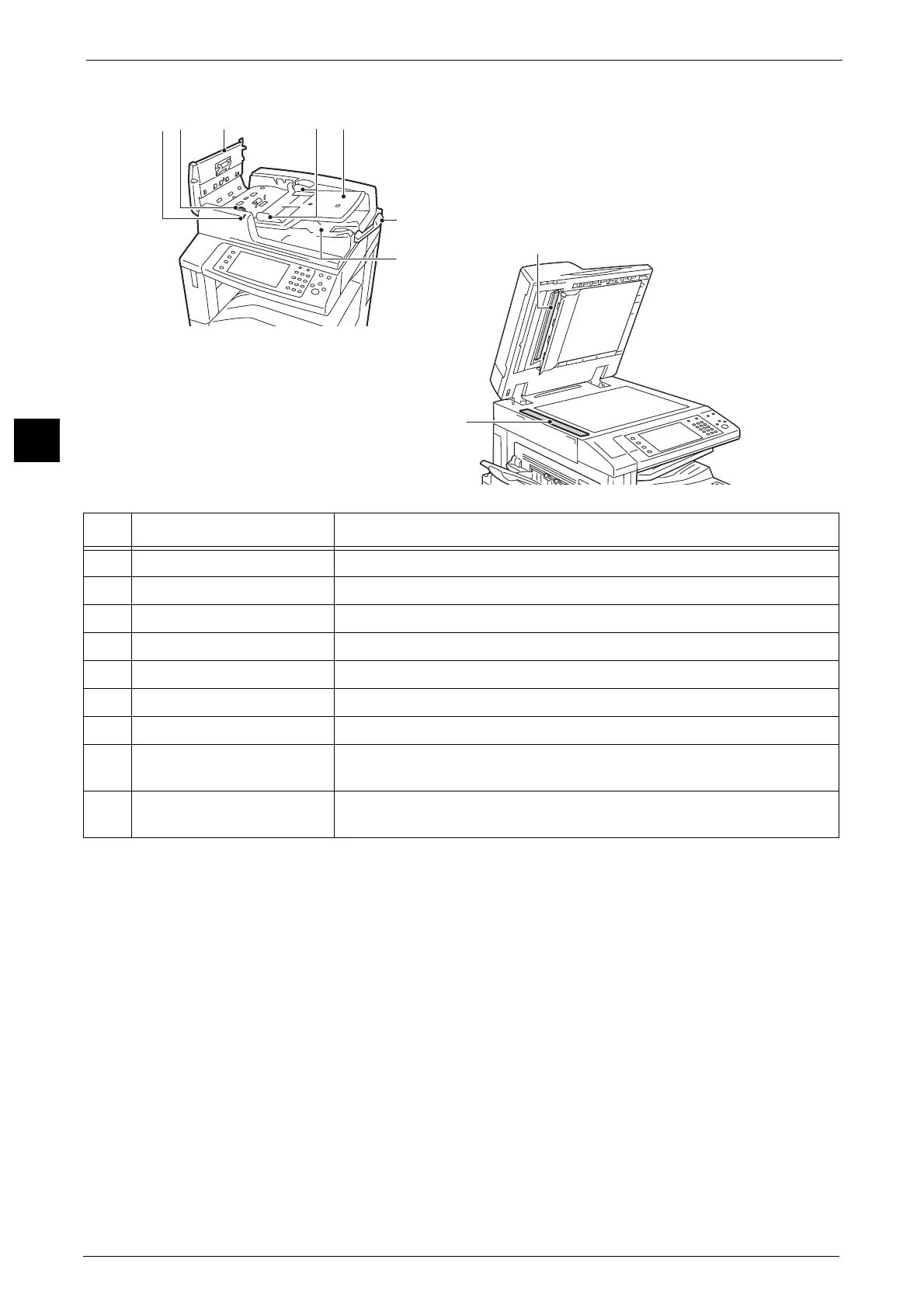

Product Overview
2
îš„ Duplex Automatic Document Feeder B1-PC (optional)
Note • In this guide, "document feeder" means both the Duplex Automatic Document Feeder B1-C and the
Duplex Automatic Document Feeder B1-PC (optional) unless expressly restricted to one of them.
No. Component Function
1 Confirmation indicator Lights up when a document is loaded correctly.
2 Lever Turn this lever to clear paper jams.
3 Left cover Open this cover to clear paper jams.
4 Inner cover Open this cover to clear paper jams.
5 Document guides Use these guides to align the edges of documents.
6 Document feeder tray Load documents here.
7 Document output tray Scanned documents are delivered here.
8 Side 2 constant velocity
transport glass
Scans Side 2 of the loaded document.
9 Side 1 constant velocity
transport glass
Scans Side 1 of the loaded document.
