Machine Components
57
Product Overview
2

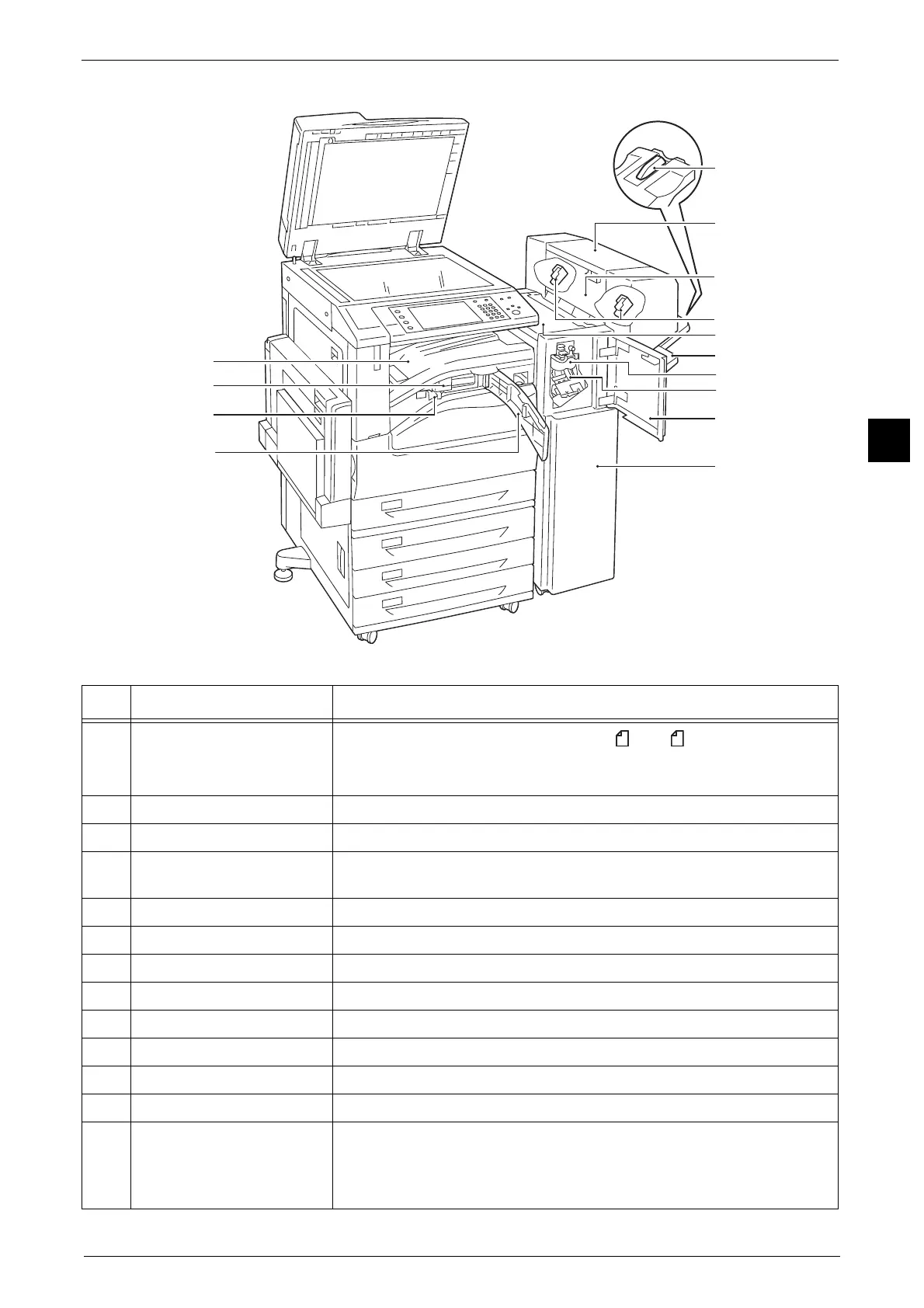

îš„ Finisher-B1 (optional)
No. Component Function
1 Tray attachment
Install this attachment when delivering A4 or B5 paper to the finisher
tray without stapling.
For more information, refer to "Installing the Tray Attachment on the Finisher-B1" (P.84).
2 Booklet unit (optional) Staples creased outputs.
3 Booklet unit side cover Open this cover when replacing the booklet staple cartridge.
4 Booklet staple cartridge Contains staples. Remove this cartridge when replacing or adding staples, or
clearing staple jams.
5 Top cover Open this cover to clear paper jams.
6 Finisher tray Stapled or creased outputs are delivered here.
7 Creaser unit Creases outputs in half.
8 Staple cartridge Contains staples.
9 Front door Open this cover when clearing paper jams or replacing staples.
10 Finisher-B1 Staples copies or prints.
11 Front transport cover Open this cover when discarding punch scraps.
12 Hole-punch waste container Collects scraps from the puncher.
13 US 2/3 Hole Punch Kit
(optional)
2/4 Hole Punch Kit
(optional)
Hole-punches outputs.
Note • The distance between the two holes made with the US 2/3 Hole Punch
Kit (US standard) is 70 mm, which is different from the 80 mm distance
made with the 2/4 Hole Punch Kit.
To Next Page
