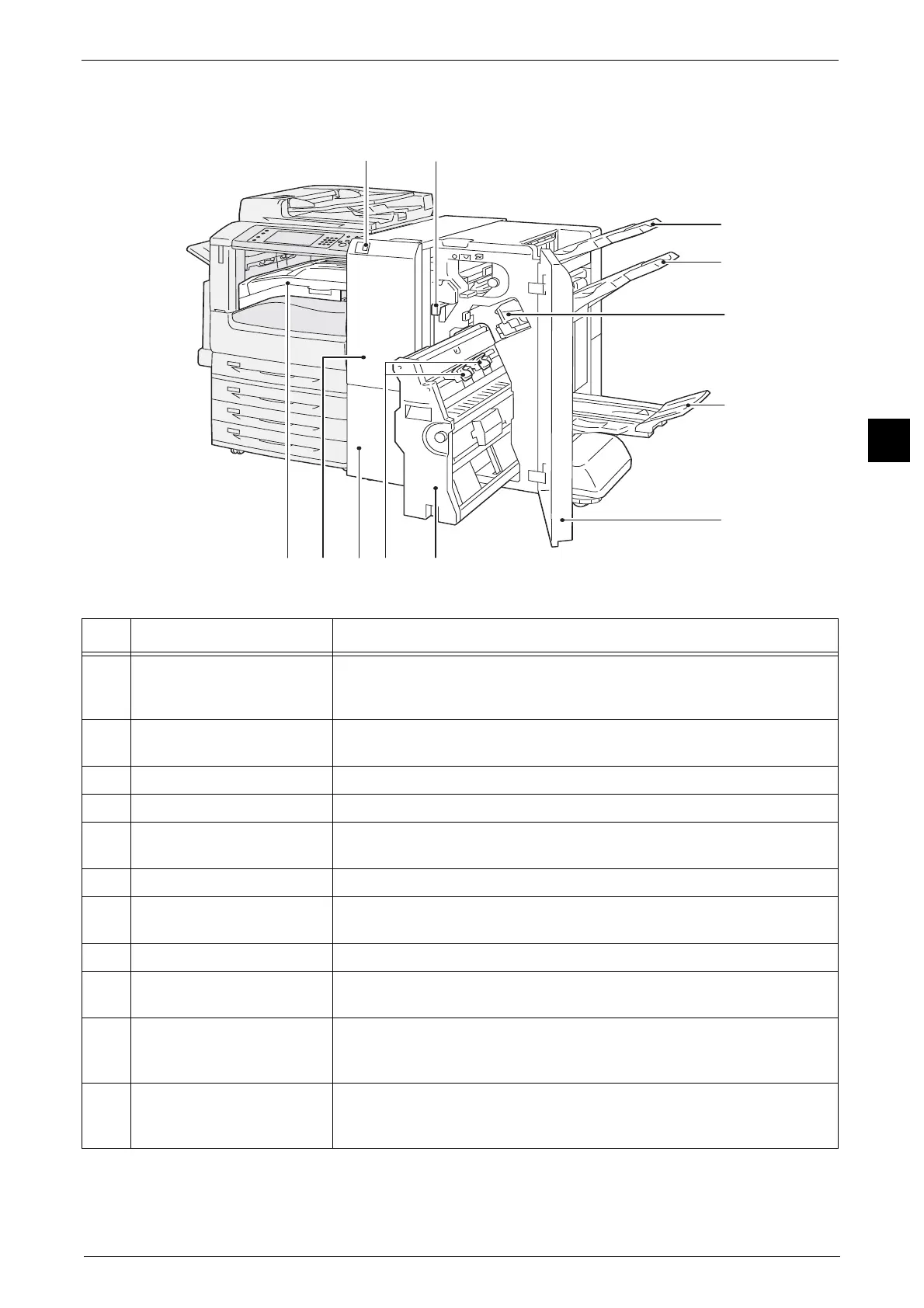

Machine Components
59
Product Overview
2
îš„ C3 Finisher (optional), C3 Finisher with Booklet Maker (optional), and Folder Unit CD1
(optional)
No. Component Function
1 Tri-fold output tray button
(When the optional Folder
Unit CD1 is installed)
Press this button to open the tri-fold output tray.
2 Hole-punch waste container Collects punch scraps from the puncher. Remove this container when
discarding the scraps.
3 Output tray Outputs are delivered here.
4 Finisher tray Outputs are delivered here.
5 Staple cartridge Staples are stored in this cartridge. Pull out this cartridge to replace staples
or clear staple jams.
6 Booklet tray Bound booklets are delivered here.
7 Finisher front door Open this door to clear paper or staple jams, replace staples, or discard
punch scraps.
8 Booklet unit This unit is for folding outputs in half and stapling the folded outputs.
9 Booklet staple cartridge Two staple cartridges for booklet creation. Take out the cartridges when
clearing stapled jams, or when replacing them with new ones.
10 Tri-fold output tray
(When the optional Folder
Unit CD1 is installed)
Tri-folded outputs are delivered here.
11 Folder Unit cover
(When the optional Folder
Unit CD1 is installed)
Open this door to clear paper jams.
