Fuji Xerox DocuPrint P285 dw User Manual

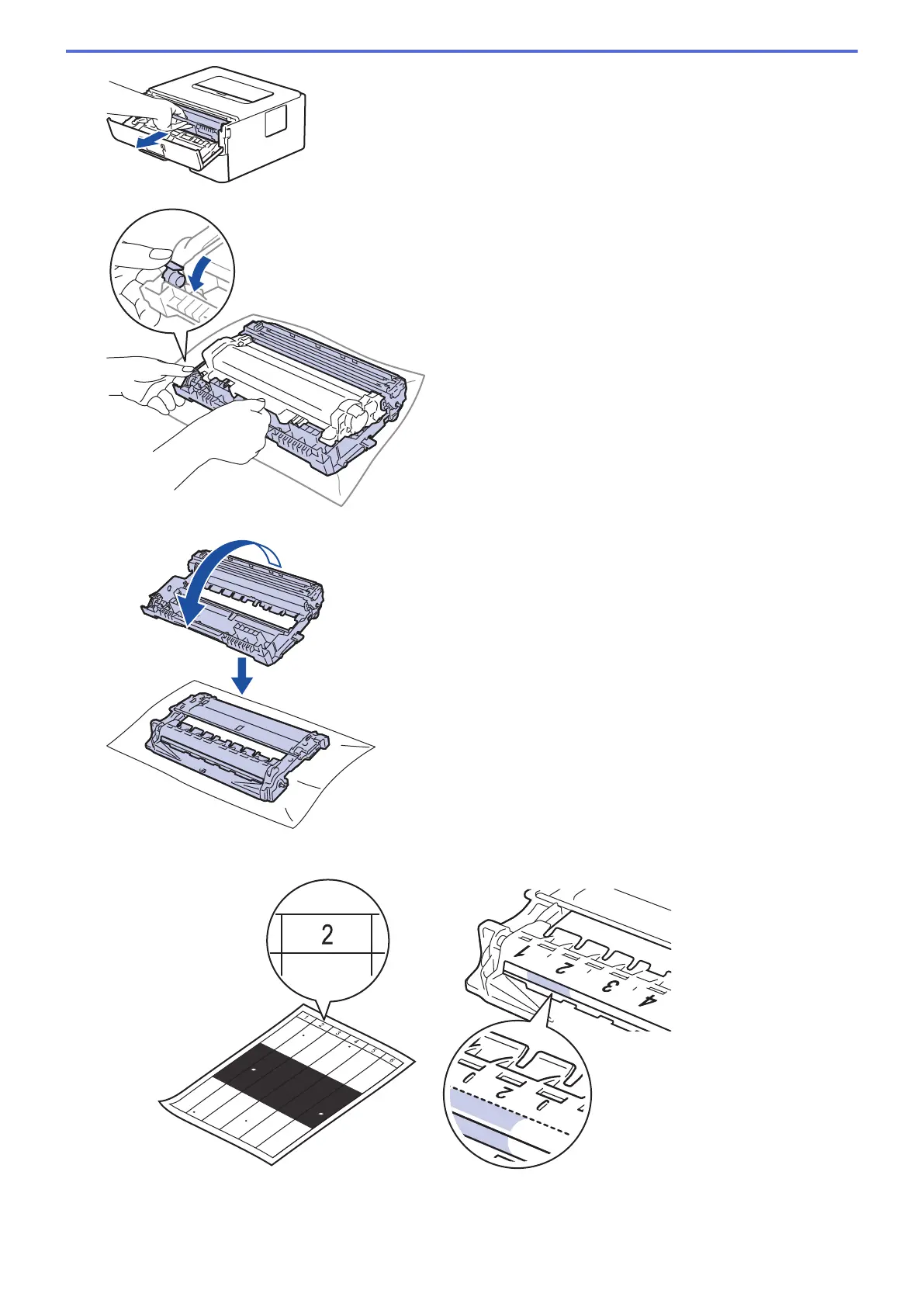

8. Push down the green lock lever and take the toner cartridge out of the drum unit.
9. Turn the drum unit as shown in the illustration. Make sure that the drum unit gear is on the left side.
10. Use the numbered markers next to the drum roller to find the mark on the drum. For example, a dot in column
2 on the check sheet means that there is a mark in drum region “2”.
11. Turn the edge of the drum unit towards you while looking at the drum surface to find the mark.
219

Fuji Xerox DocuPrint P285 dw Specifications

General

Brand	Fuji Xerox
Model	DocuPrint P285 dw
Category	Printer
Language	English
