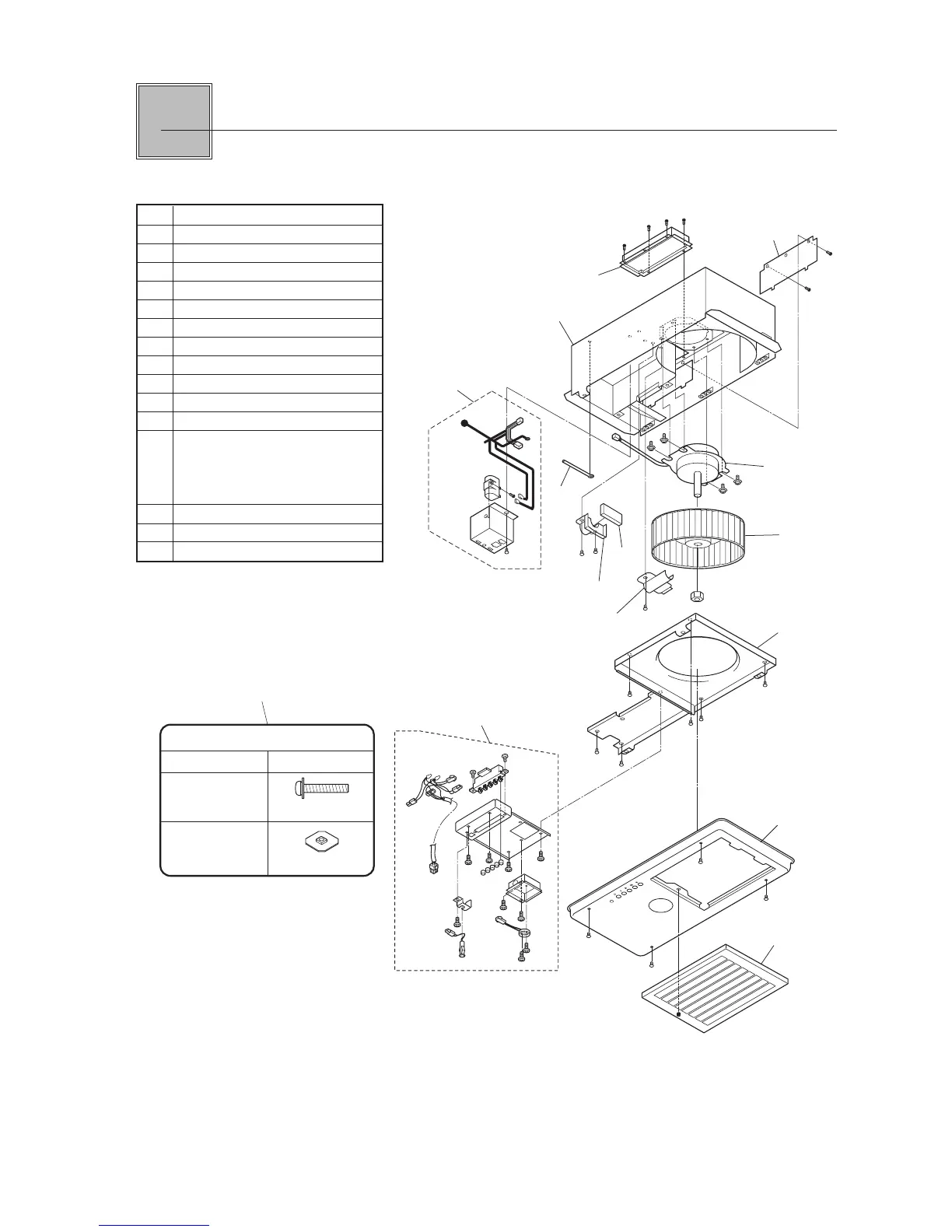

Fujioh BUF-03A - Parts List; Component Breakdown; Attachment Details

11
parts list
1
4
7
3
8
5
6
9
10
13
12
11
2
No. Component / Part
1 Enclosure
2 Cover Plate
3 Earth Wire Unit
4 Motor
5 Wire Holder
6 Seal
7 Sirocco Fan
8 Wire Box Unit
9 Motor Wire Cover
10 Partition Board
11 Control Switch Unit
12 Front Cover (White)
Front Cover (Black)
Front Cover (Biscuit)
Front Cover (Silver Metallic)
13 Filter
14 Exhaust Pipe Unit
15 Attachment
14
Attachment
Name of parts Figure
Four(4) Pieces
Screw
M5 × 30
Four(4) Pieces
Nut with plate
M5
15
