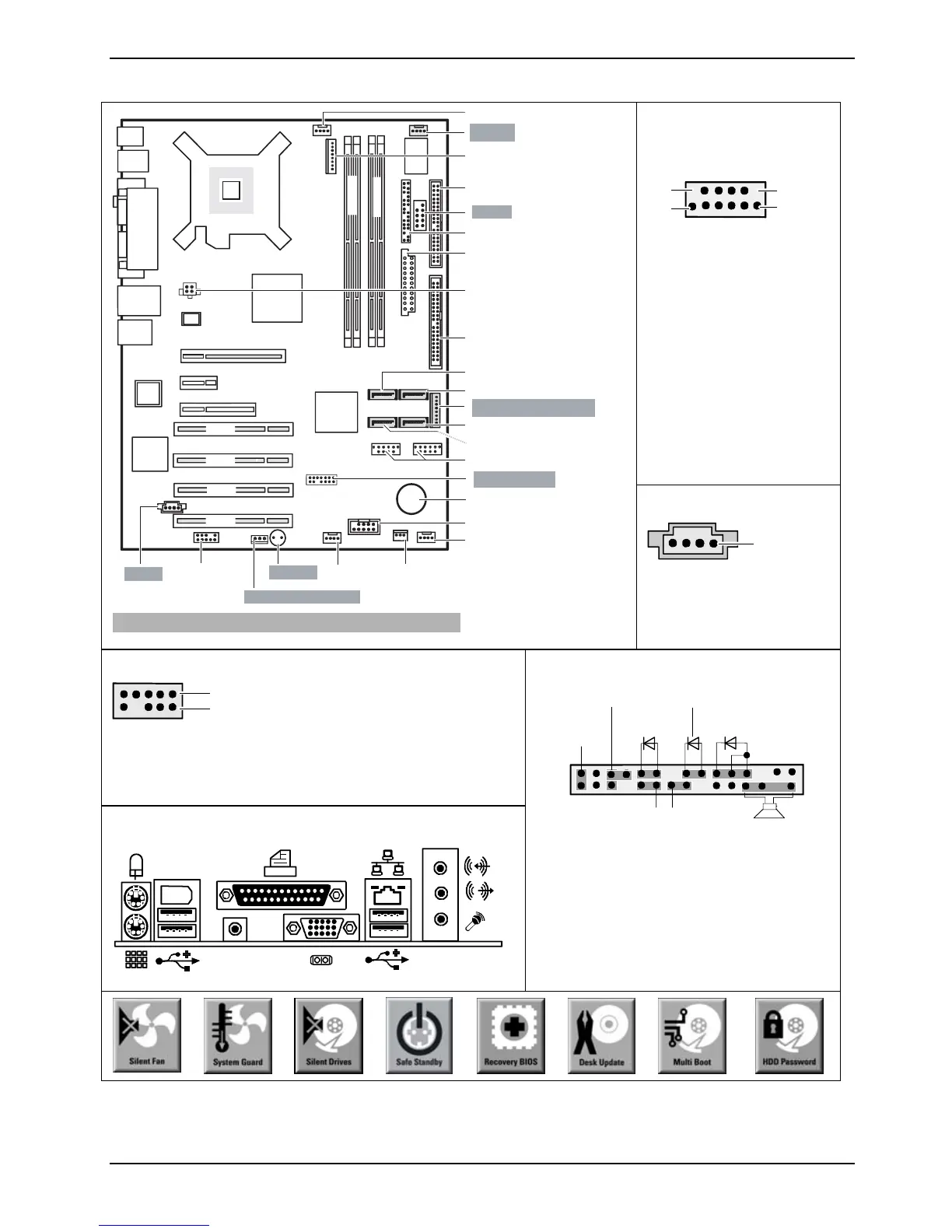

Mainboard D2438 - Internal connectors and slots
USB - dual channel
(internal or external via
special wire)
12
1
2
11
1 = Key
2 = Not connected
3 = VCC X
4 = VCC Y
5 = Data negative Port X
6 = Data negative Port Y
7 = Data positive Port X
8 = Data positive Port Y
9 = GND X
10 = GND Y
11 = Key
12 = Not connected
PCI 1
PCI 2
PCI 4
PCI 3
Floppy disk drive
Front panel
Power supply
Serial ATA 3
Serial ATA 4
Fan 3
Battery
LCD Display
IDE-drives 1/2
slot 1
slot 3
slot 4
slot 2
Channel B
Channel A
PCIe x4 (x16 mechanical possible)
PCIe x8/x16
PCIe x1
Additional
Power supply
Fan 1
CD In
Audio
S/PDIF connector
Fan 2
Power supply
control
Serial ATA 2
Serial ATA 1
Fan 4
IEEE1394
Front-
panel
Com2
Buzzer
Power supply cont.
Intrusion
USB
Optionale Komponenten / Optional components
Audio In
1
1 = Left CD audio input
2 = CD GND
3 = CD GND
4 = Right CD audio input
High Definition Audio
1
2
1 = Micro input left
2 = Analog GND
3 = Micro input right
4 = Presence Detect
5 = Right line / Headphone output
6 = Sense 1 return
7 = Jack sense Send
8 = Key
9 = Left line / Headphone output
10 = Sense 2 return
Front panel
1) Both connector positions possible
2) 2pin or 3pin connector possible
1
2
HD-LED
Power On/Off
Recovery Password
1)
Message LED
Reset
Power On
LED
2)
Speaker
External connectors
1394
LAN
S/PDIF
OUT
Recovery inserted = The system starts
from floppy and allows a BIOS recovery
Password inserted = System- and BIOS
Pass-word are skipped when device is
switched on
A26361-D2348-Z140-1-7619
A26361-D2438-Z110-1-8N19, Ausgabe 1
