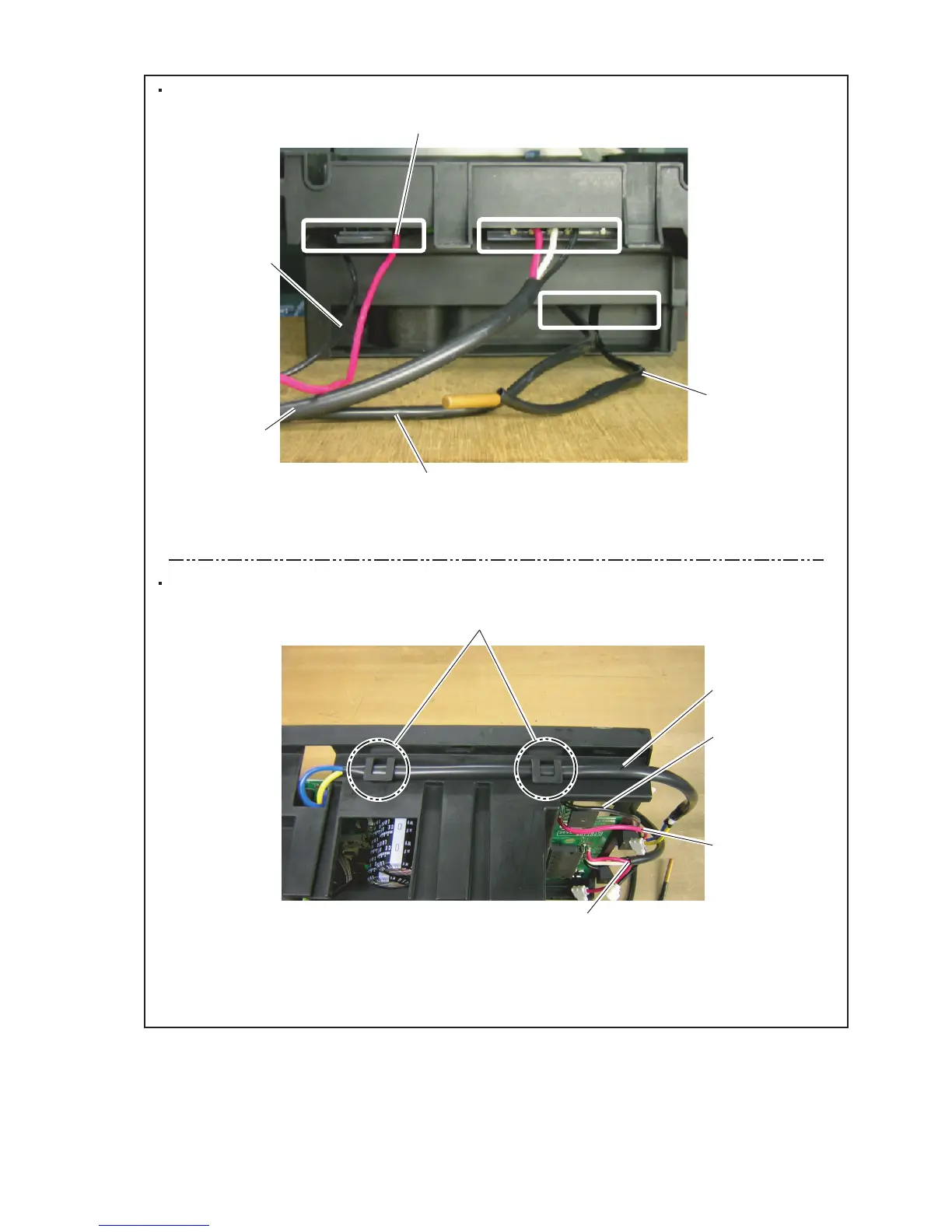

As shown in Fig.4, pull out the wires.
As shown in Fig.5, pull out the wires and fix them.
03-17
W16 (Red)
W17 (Black)
Thermistor
(Heat sink)
CN407
W303 (Black)
W304 (White)
W305 (Red)
Fig. 4
Fig. 5
W12 (Y
ellow)
W13 (Blue)
W17 (Black)
W16 (Red)
W303 (Black)
W304 (White)
W305 (Red)
Hook (2 places)
111
113
Table of Contents
Default Chapter
2
Table of Contents
2
Description of each Control Operation
3
Capacity Control
4
Auto Changeover Operation
4
Indoor Fan Control
5
Outdoor Fan Control
14
Louver Control
15
Compressor Control
24
Timer Operation Control
25
Wireless Remote Controller
25
Electronic Expansion Valve Control
29
Test Operation Control
29
Prevent to Restart for 3 Minutes ( 3 Minutes St )
29
Way Valve Extension Select
29
Auto Restart
30
Manual Auto Operation
30
Compressor Preheating
30
Fresh Air Control
30
External Electrical Heater Control
31
Coil Dry Operation Control
31
Defrost Operation Control
32
Drain Pump Operation
35
Energy Save Function
35
Various Protections
36
Trouble Shooting
38
Error Display
39
Indoor Unit Display
39
Outdoor Unit Display
44
Error Contents
44
Wired Remote Controller Display
45
Trouble Shooting with Error Code
49
Trouble Shooting with no Error Code
82
Service Parts Information
87
REPLACEMENT PARTS ( for OUTDOOR UNIT )
95
3 Replacement Parts
96
For AO*18LMAK2/ 24LMAM2
96
Parts Layout Drawing
96
Wiring
98
Disassembly Process
99
For AO*30LMAW4
103
Parts Layout Drawing
103
Wiring
105
Back View
105
Disassembly Process
106
ASSEMBLY PROCESS of INVERTER UNIT
111
5
Based on 1 rating
Ask a question
Give review
