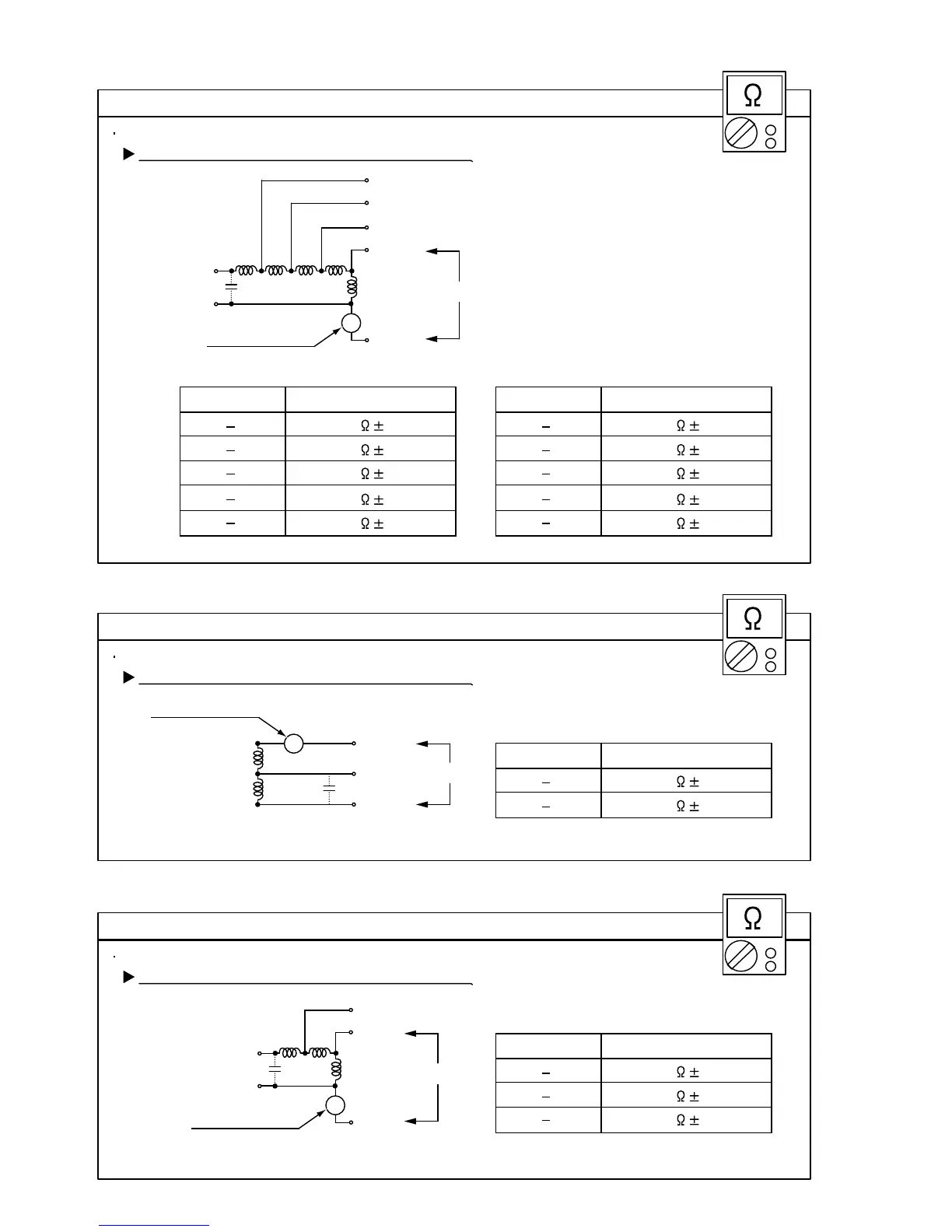

Check Point : AU*12/ 14/ 18LBAB
(AC)
VIOLET
BLUE
YELLOW
PINK
RED
BLACK
WHITE
Thermal protector
140°C
Check each winding resistance of the motor
If Resistance value is abnormal, replace motor.
02-55
Red Pink
Pink Violet
Violet Blue
Blue Black
White Red
Read Wire
431 8%
10.7 8%
55.5 8%
55.5 8%
35.7 8%
Resistance value
at 20°C
AU*18LBAB
Red Pink
Pink Violet
Violet Blue
Blue Black
White Red
Read Wire
427 8%
191 8%
191 8%
92.8 8%
92.8 8%
Resistance value
at 20°C
AU*12/ 14LBAB
Pr
Check Point : AS*18/ 24LBAJ
(AC)
BLUE
YELLOW
RED
BLACK
WHITE
Thermal protector
140°C
Check each winding resistance of the motor
If Resistance value is abnormal, replace motor.
Blue Red
Blue Black
White Red
Read Wire
129 8%
21.0 8%
277 8%
Resistance value
at 20°C
Pr
Check Point : AS*7/ 9/ 12LMACW
Check each winding resistance of the motor
If Resistance value is abnormal, replace motor.
White Yellow
Black Yellow
Read Wire
138 8%
136 8%
Resistance value
at 20°C
(AC)
Thermal protector
WHITE
YELLOW
BLACK
