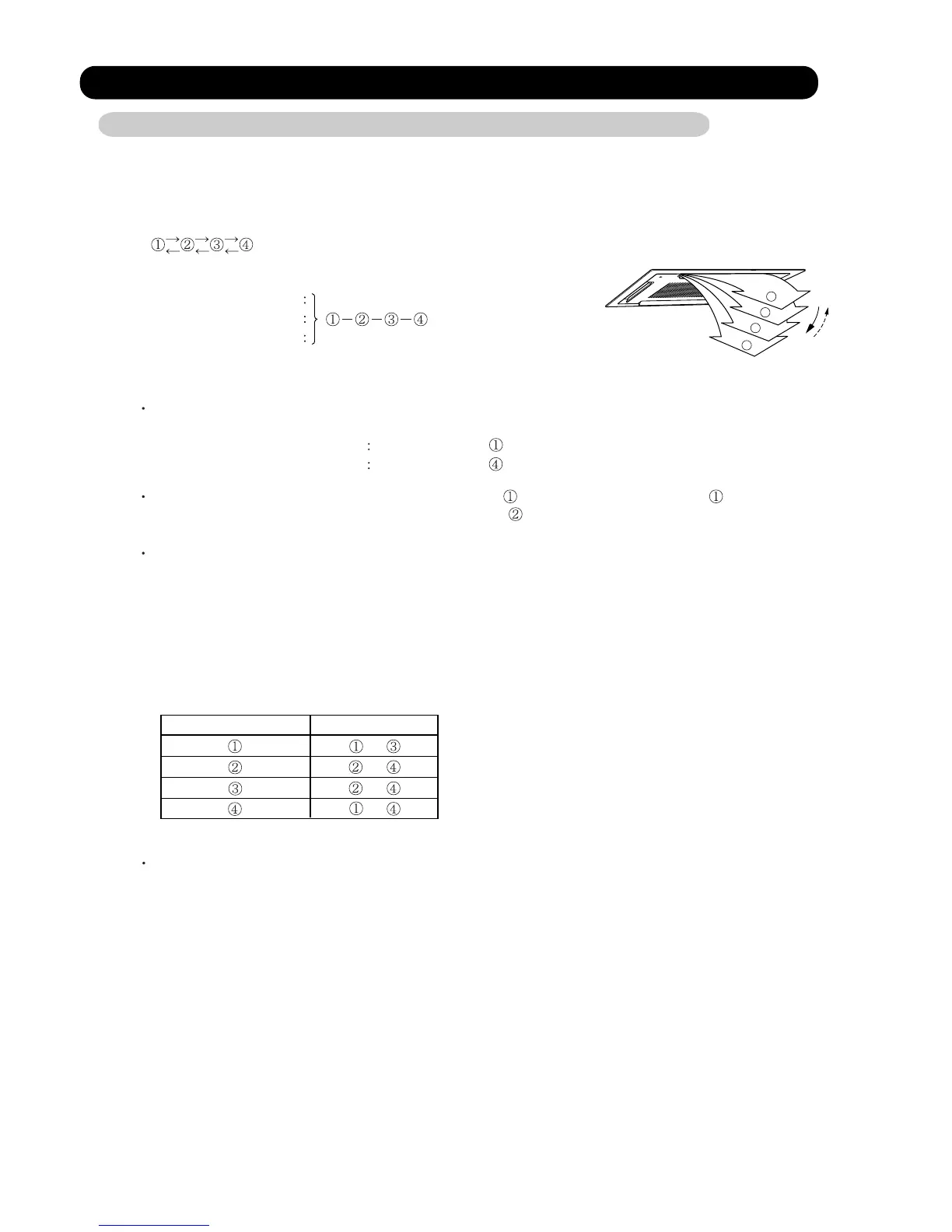

5. LOUVER CONTROL
1. VERTICAL LOUVER CONTROL
Each time the button is pressed, the air direction range will change as follows:
Cooling / Dry mode
Heating mode
Fan mode
Use the air direction adjustments within the ranges shown above.
The vertical airflow direction is set automatically as shown, in accordance with the type of operation
selected.
Cooling / Dry / Fan mode Horizontal flow
Heating mode Downward flow
(Function Range)
(Air Direction Range)
(Operation Range)
1-2. SWING OPERATION
When the swing signal is received from the remote controller, the vertical louver starts to swing.
The range of swing depends on the set airflow direction.
(Swinging Range)
When the indoor fan is either at S-Lo or Stop mode, the swinging operation is interrupted
and the louver stops at the memorized position.
01-12
1
2
3
4
The indoor fan motor starts after the louver reaches to the setting position.
At the start of operation if the setting louver position is ,the setting position is set to
after the louver moves from totally-enclosed position to . (Positioning Control)
( Stop mode means Operation stop.)
Airflow direction set Range of swing
to
to
to
to
5-1 Compact Cassette (AU) type
