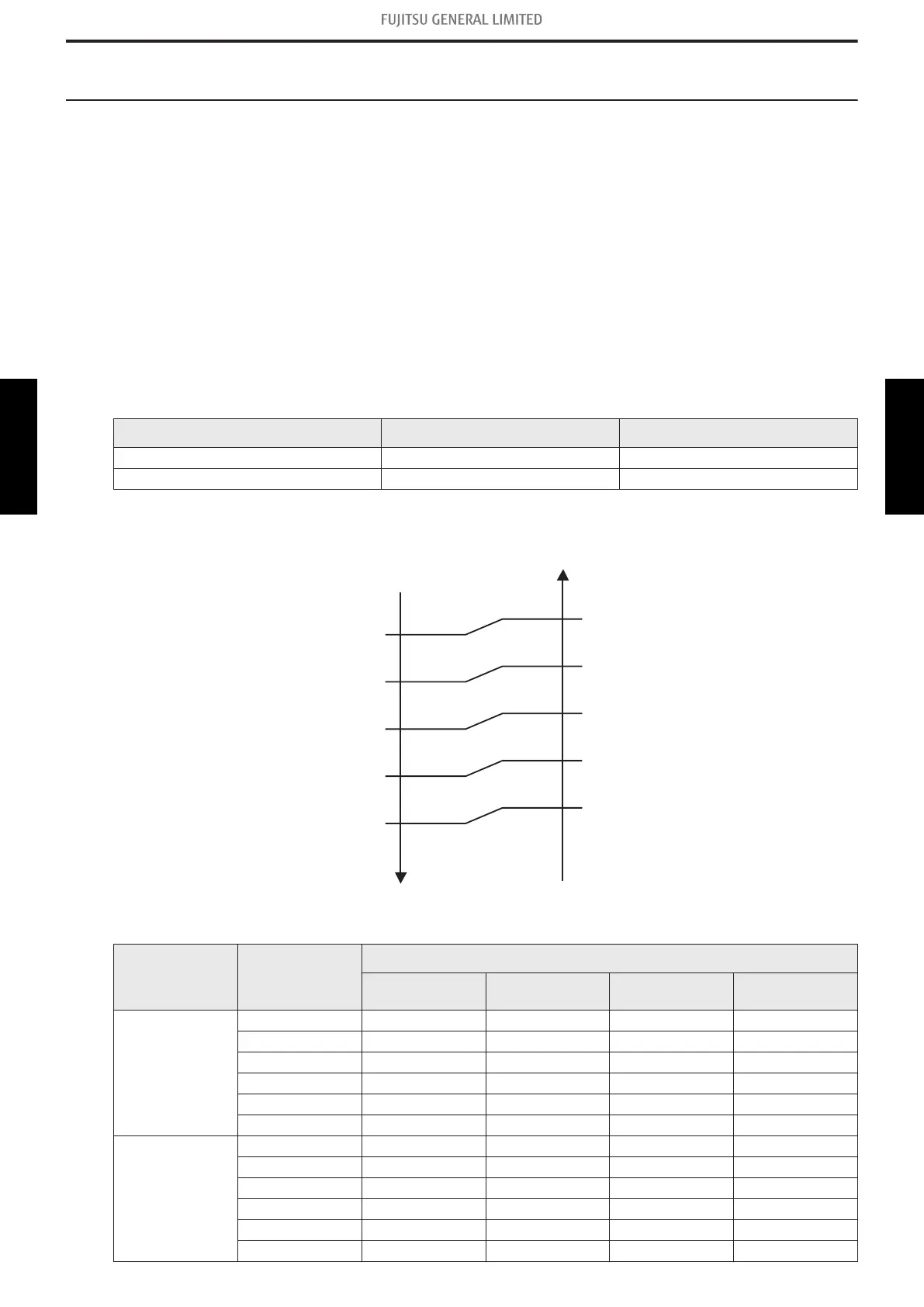

1. Compressor frequency control
1-1. Cooling operation
A sensor (room temperature thermistor) built in the indoor unit body will usually perceive difference
or variation between a set temperature and present room temperature, and controls the operation
frequency of the compressor.
If the room temperature is 6.0 °C higher than a set temperature, the compressor operation fre-
quency will attain to maximum performance.
If the room temperature is 1.0 °C lower than a set temperature, the compressor will be stopped.
When the room temperature is within the range of +6.0°C to -1.0°C of the setting temperature, the
compressor frequency is controlled within the range shown in the table below. However, the maxi-
mum frequency is limited in the range shown in the figure below based on the indoor fan mode
and the outdoor temperature.
Compressor frequency range
Model name Minimum frequency Maximum frequency
ABHG36KRTA 15 rps 98 rps
ABHG45KRTA 20 rps 114 rps
Limit of maximum speed based on outdoor temperature
36°C
A zone
34°C
32°C
B zone
30°C
21°C
C zone
19°C
D zone
E zone
F zone
10°C
0°C
12°C
2°C
Outdoor
temperature drops
Outdoor
temperature rises
Unit: rps
Model name
Outdoor
temperature
zone
Indoor unit fan mode
HIGH MED LOW QUIET
ABHG36KRTA
A zone 98 79 64 44
B zone 98 79 64 44
C zone 85 64 54 44
D zone 64 54 4436
E zone 64 54 4436
F zone 64 54 4436
ABHG45KRTA
A zone 114 79 61 40
B zone 114 79 61 40
C zone 96 61 49 40
D zone 67 49 4232
E zone 67 49 4232
F zone 67 49 4232
1-1. Cooling operation - (04-1) - 1. Compressor frequency control
