ERROR DISPLAY

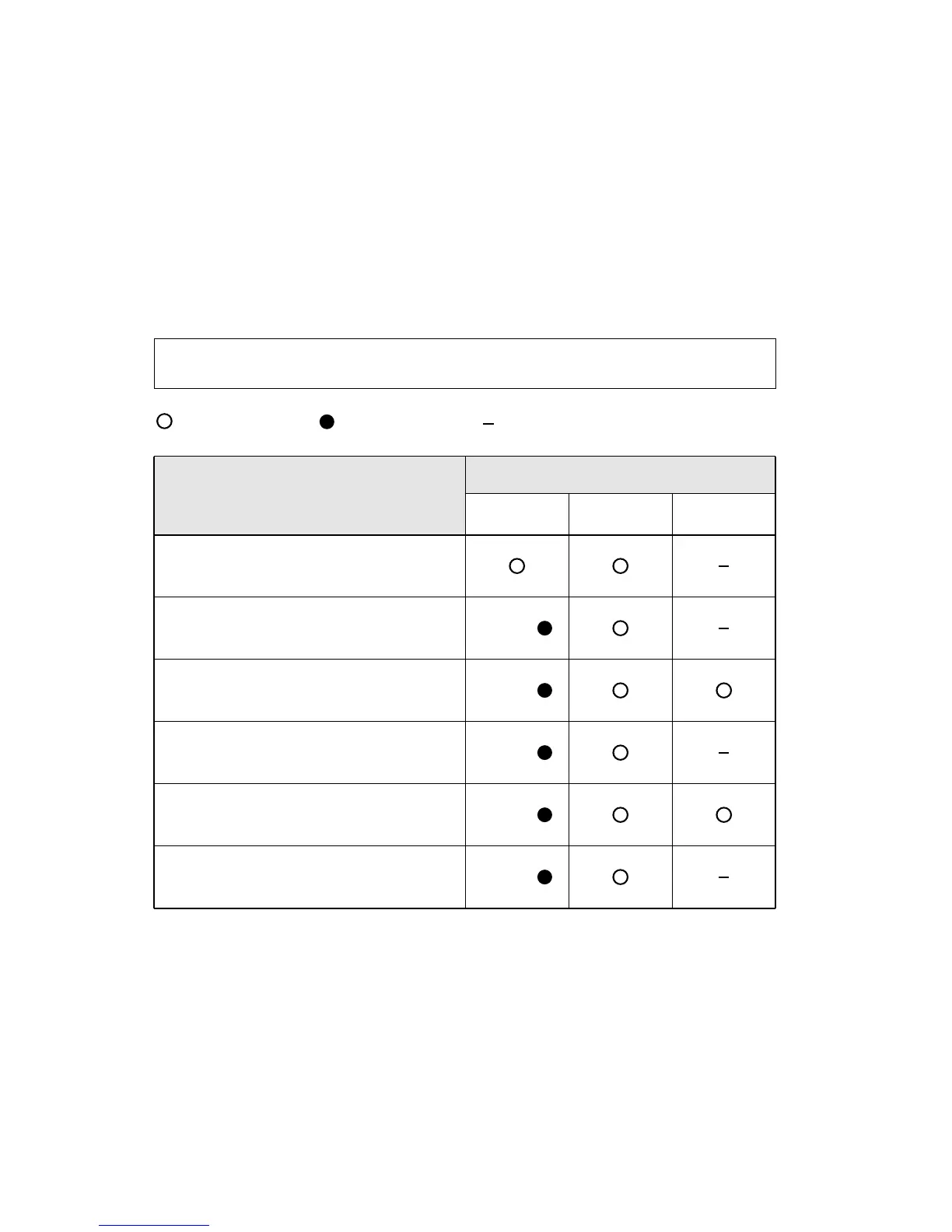

The OPERATION, TIMER and SWING lamps operate as follows according to the error contents.
Error display
OPERATION
(RED)
TIMER
(GREEN)
SWING
(ORANGE)
Error contents
Indoor unit circuit board error
Indoor unit room temperature sensor wire
opened
Indoor unit room temperature sensor wire
short circuited
Indoor unit piping sensor wire opened
Indoor unit piping sensor wire short circuited
Indoor unit fan error
2 times
2 times
3 times
3 times
6 times
:
Fast flashing
:
Slow flashing
:
Off
11
2006.07.24
11
13
Table of Contents
Table of Contents
1
Specifications
2
Outline and Dimensions
4
Refrigerant System Diagram
6
Circuit Diagram
8
Indoor Pcb Circuit Diagram
10
Error Display
12
Disassembly Illustration
13
Parts List
26
Standard Accessories
30
4
