En-3
L
N
O
M
K
H
G
I
J

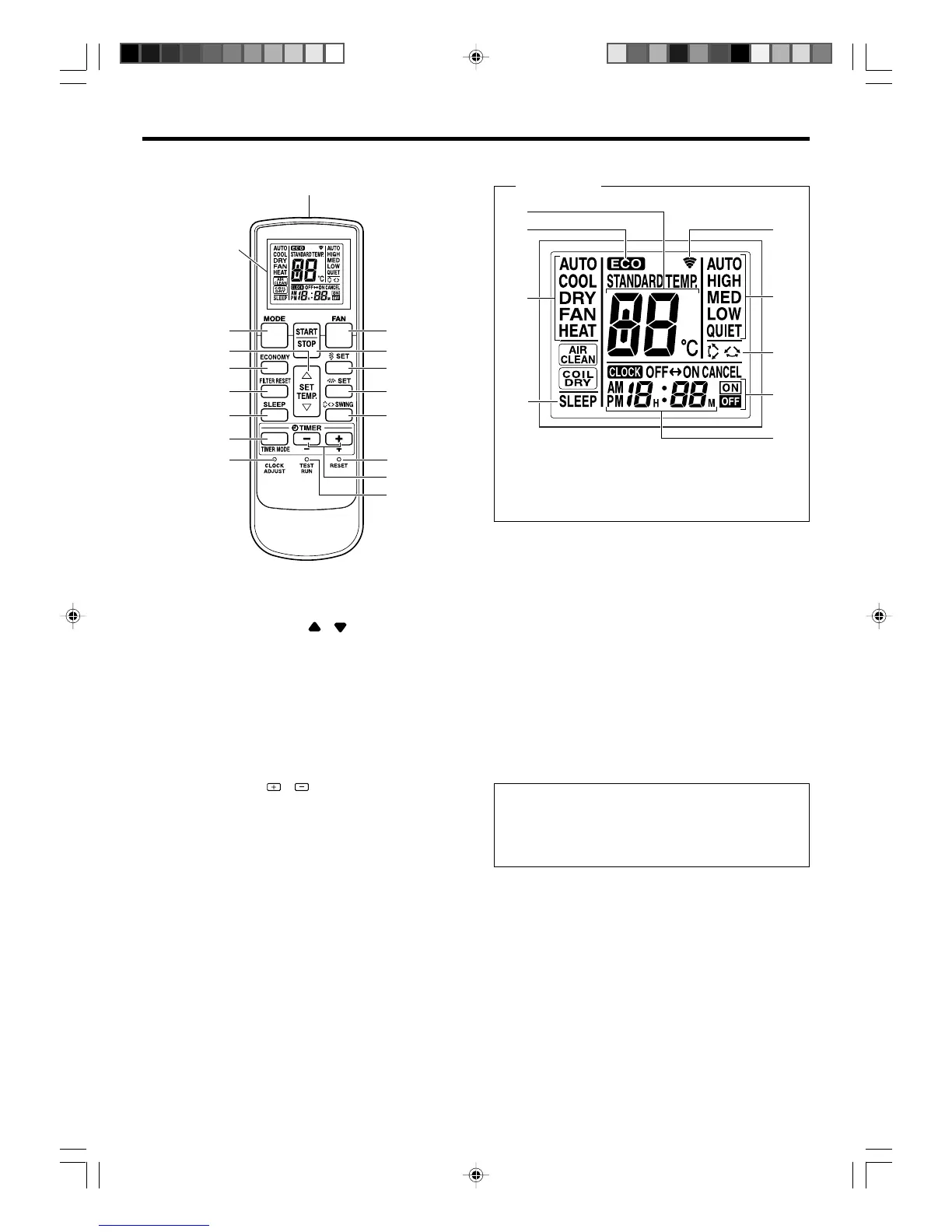

NAME OF PARTS
Display panel
To facilitate explanation, the accompanying illustration
has been drawn to show all possible indicators; in ac-
tual operation, however, the display will only show those
indicators appropriate to the current operation.
1 MODE button
2 ECONOMY button
3 SET TEMP. button (
/ )
4 FILTER RESET button
5 SLEEP button
6 FAN button
7 START/STOP button
8 SET button (Vertical)
9 SET button (Horizontal)
0 SWING button
A TIMER MODE button
B TIMER SET (
/ ) button
C CLOCK ADJUST button
D RESET button
E TEST RUN button
● This button is used when installing the condi-
tioner, and should not be used under normal
conditions, as it will cause the air condition-
er’s thermostat function to operate incorrectly.
● If this button is pressed during normal opera-
tion, the unit will switch to test operation
mode, and the Indoor Unit’s OPERATION In-
dicator Lamp and TIMER Indicator Lamp will
begin to flash simultaneously.
● To stop the test operation mode, press the
START/STOP button to stop the air condi-
tioner.
F Signal Transmitter
G Temperature SET Display
H ECONOMY Display
I Operating Mode Display
J SLEEP Display
K Transmit Indicator
L Fan Speed Display
M SWING Display
N Timer Mode Display
O Clock Display
Some indoor units may not be equipped with the func-
tions corresponding to all of the buttons on this remote
controller. The indoor unit will beep and the OPERATION,
TIMER and FILTER lamp flash when a remote controller
button is pressed if the function is not available.
Remote controller
F
1
2
7
4
5
6
8
9
0
A
CD
3
B
E
Display
Display
