3. Installation space
3-1. Models: AOYG72LRLA and AOYG90LRLA
¢
Space requirement

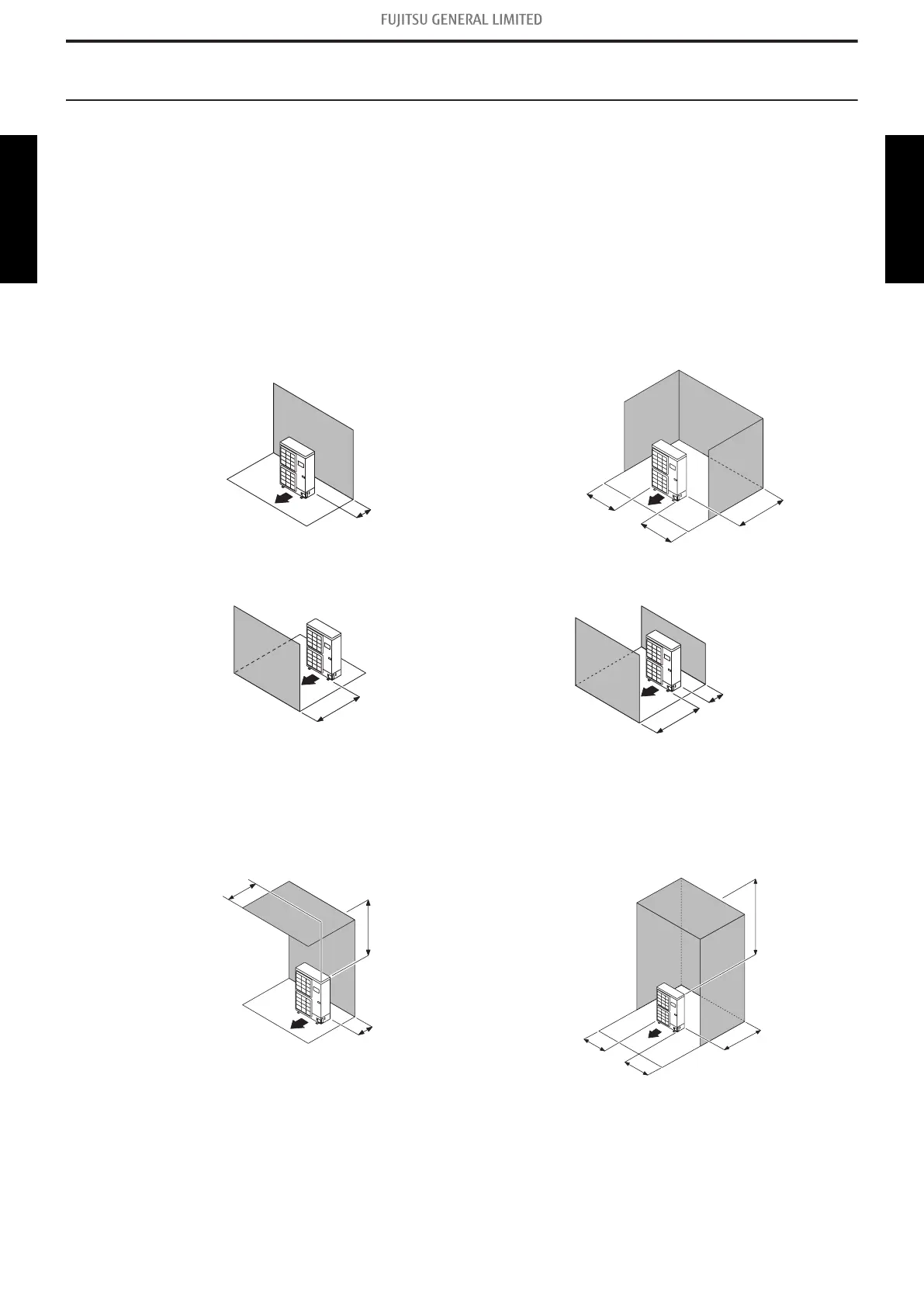

Provide sufficient installation space for product safety.
 Single outdoor unit installation
• When the upper space is open:
Unit: mm
When there are obstacles at the rear only. When there are obstacles at the rear and
sides.
100 or more
100 or more
300 or
more
80 or
more
When there are obstacles at the front only. When there are obstacles at the front and
rear.
1,000 or more
1,000 or more
100 or more
• When there is an obstruction in the upper space:
Unit: mm
When there are obstacles at the rear and
above.
When there are obstacles at the rear, sides,
and above.
100 or more
Max. 500
1,000 or more
1,500 or
more
80 or
more
100 or more
300 or
more
