Fujitsu AGU9RLF Service Manual

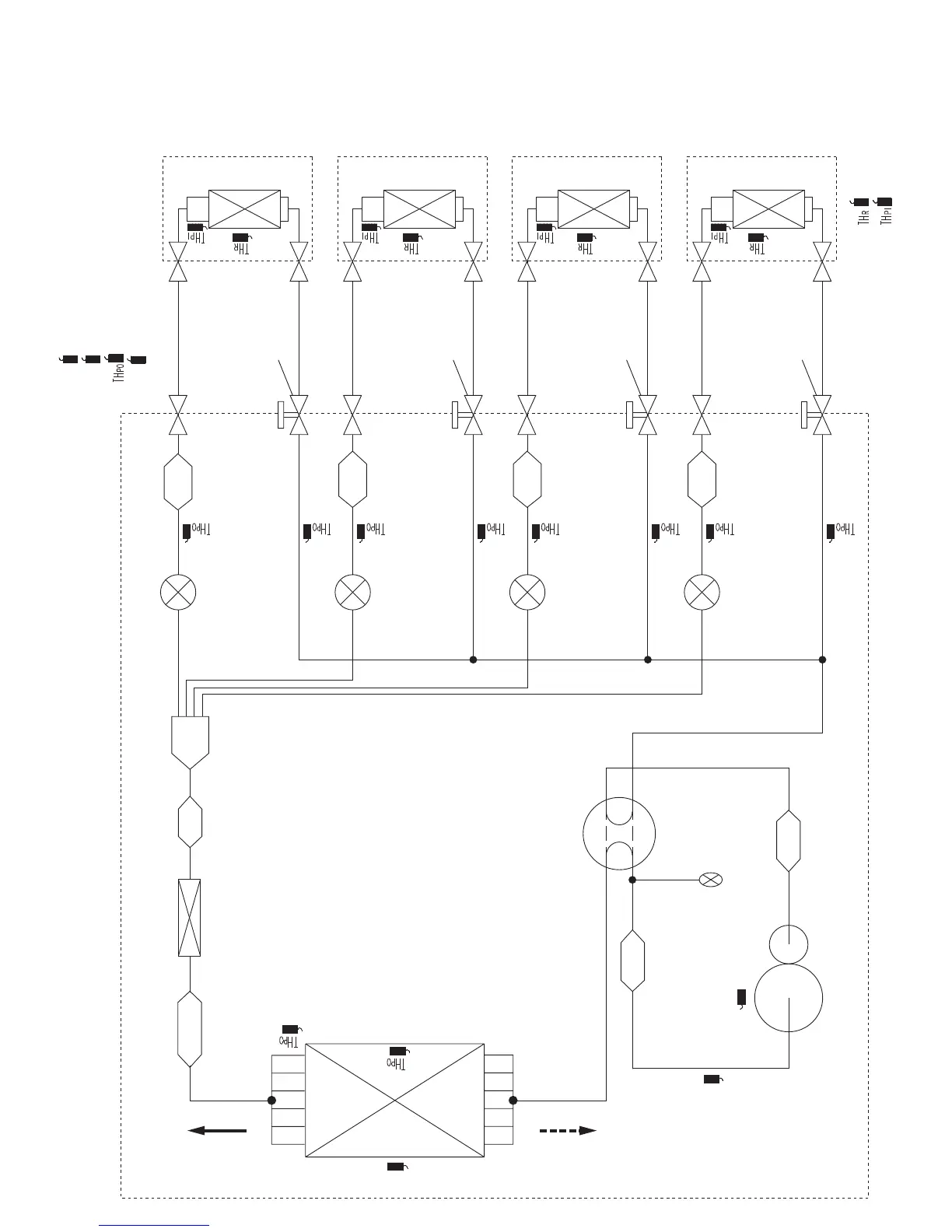

REFRIGERANT SYSTEM DIAGRAM
112015.02.17
TH
C
TH D
TH O
TH
C
TH
D
TH
O
1/4” 6.35 mm 3/8” 9.52 mm 3/8” 9.52 mm 3/8” 9.52 mm 1/2” 12.7 mm 1/4” 6.35 mm 1/4” 6.35 mm 1/4” 6.35 mm
Heat
exchanger
Pressure switch
Compressor
Accumulator
4-way valve
Heating
flow
Cooling
flow
Receiver
tank
Condenser
Muffler
OUTDOOR UNIT
INDOOR UNIT A INDOOR UNIT B INDOOR UNIT C INDOOR UNIT D
Heat exchanger Heat exchanger Heat exchanger Heat exchanger
Charging valve Charging valve Charging valve Charging valve
Strainer
Strainer Strainer Strainer
Expansion
valve
Expansion
valve
Expansion
valve
Expansion
valve
Strainer
Distributor
: Thermistor (Discharge temp.) : Thermistor (Compressor temp.)
: Thermistor (Room temp.) : Thermistor (Pipe temp.)
: Thermistor (Pipe temp.) : Thermistor (Outdoor temp.)
