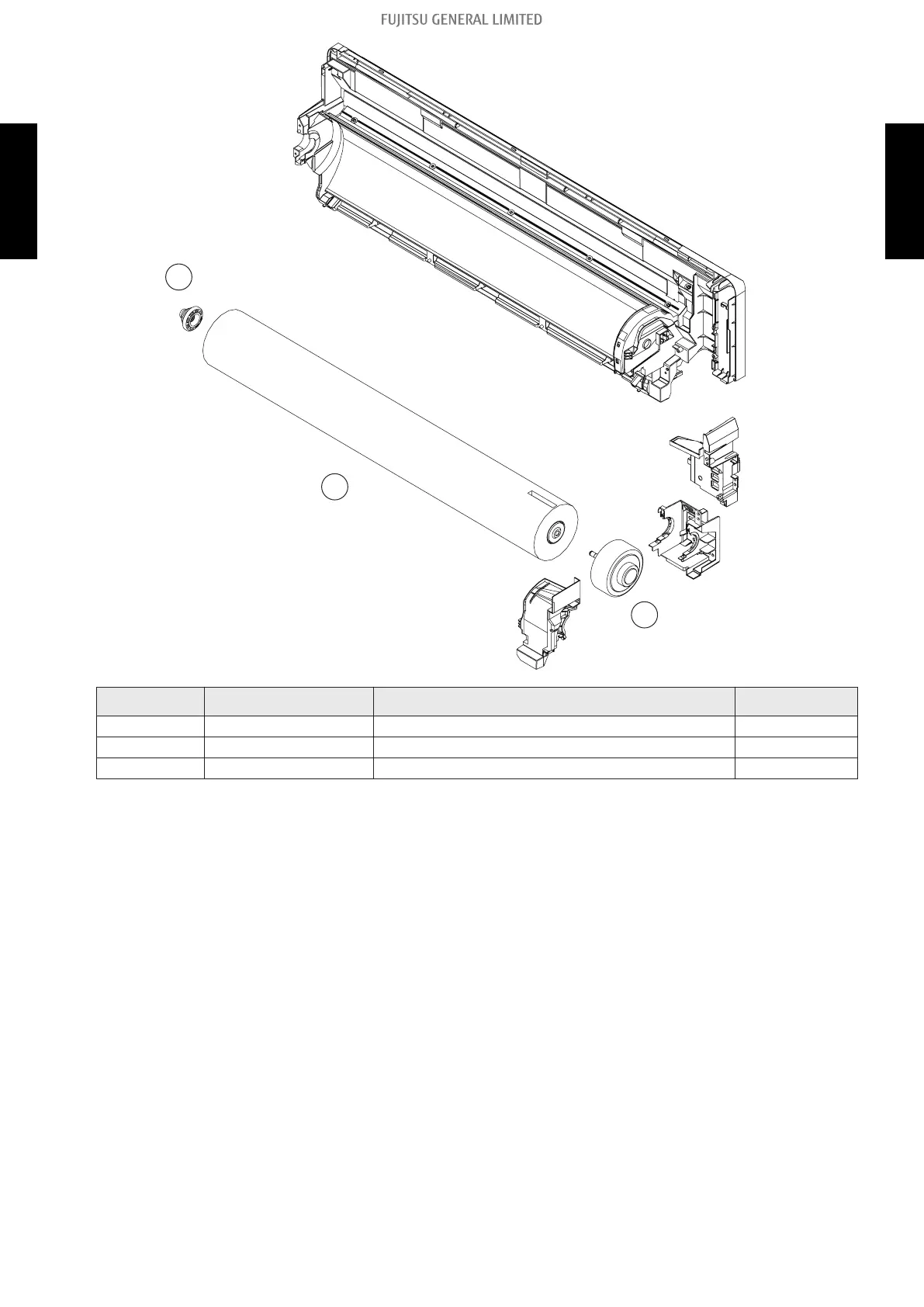

Base total assy
Motor cover assy
Fan motor
Motor case
Pipe bracket
Motor cover assy
Base assy
73
72
71
Item no. Part no. Part name Service part
71 9603631000 Brushless motor ♦
72 9387055054 Crossflow fan assy ♦
73 9333628004 Bearing D assy ♦
3-5. Wall mounted type - (02-44) - 3. Indoor unit parts list
