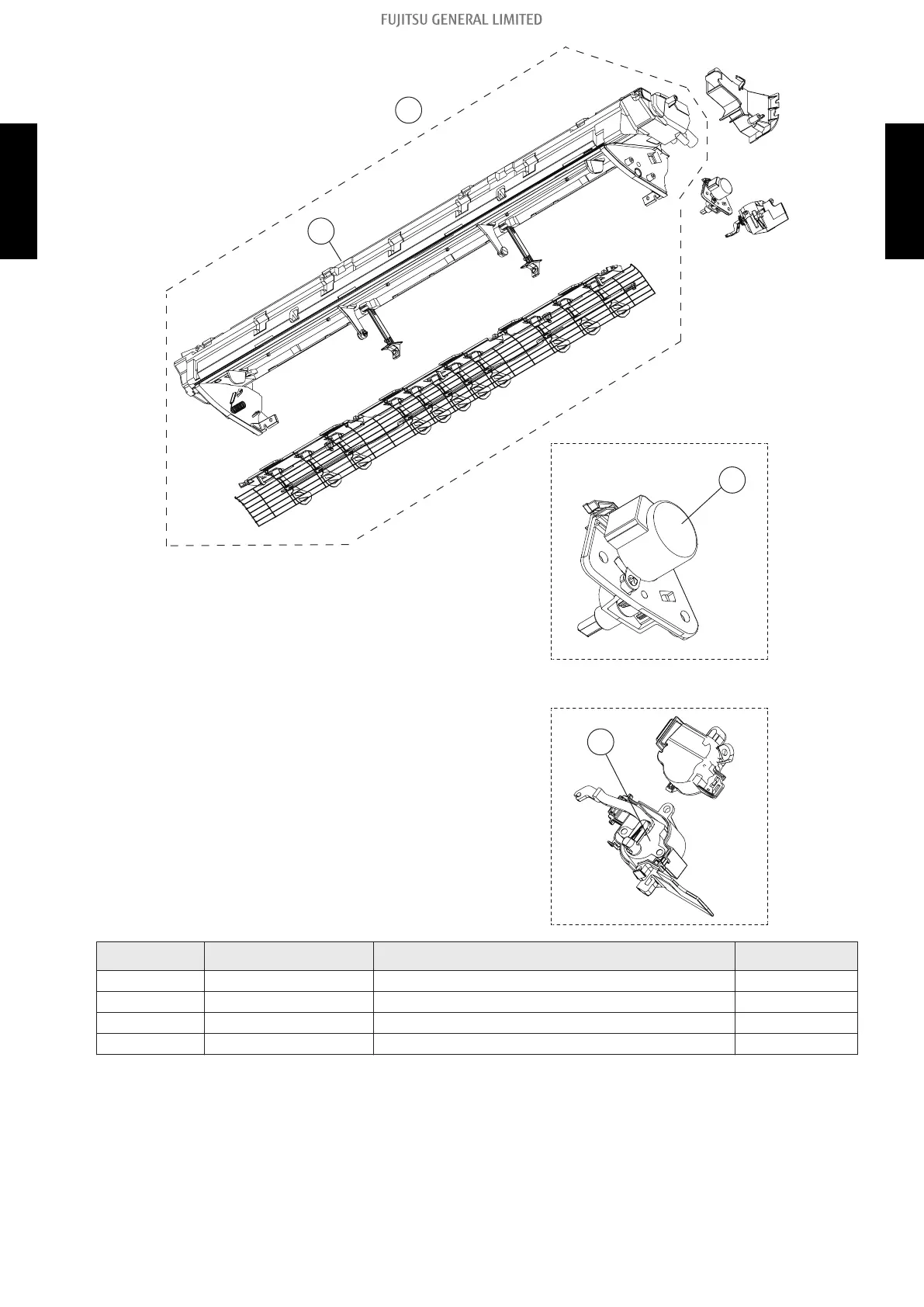

Vertical louver stepping motor assy
Gear case assy
Cable guide
84
83
82
Drain pan total assy
Vertical louver stepping motor assy
Gear case assy
Specer K assy
81
Item no. Part no. Part name Service part
81 9387590142 Drain pan total assy ♦
82 9901011016 Stepping motor ♦
83 9901011023 Stepping motor ♦
84 9387590142 Drain pan assy ♦
3-5. Wall mounted type - (02-45) - 3. Indoor unit parts list
