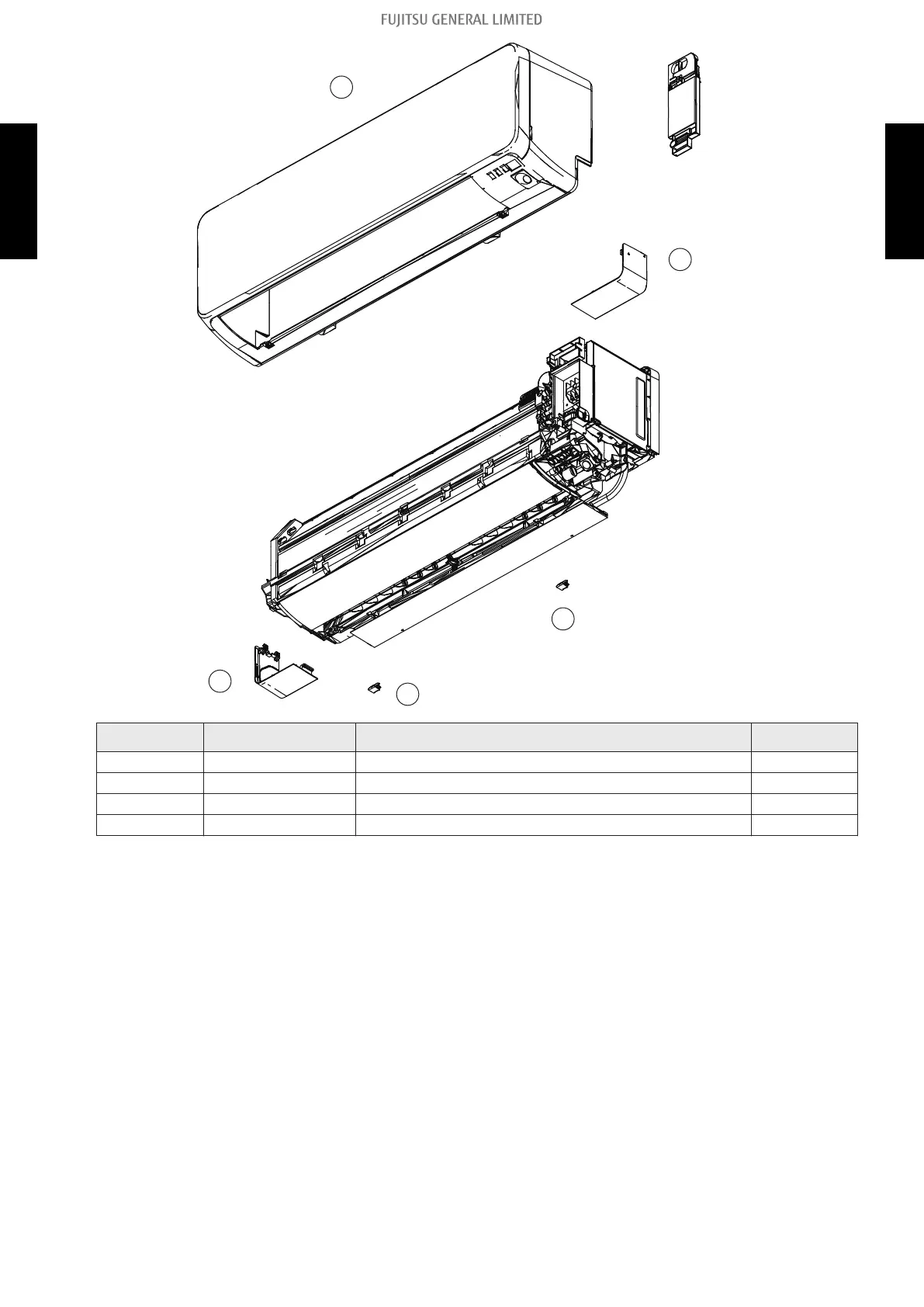

Wire cover assy
14
11
12
13
11
Item no. Part no. Part name Service part
11 9387476002 Screw cover ♦
12 9387477009 Under cover L ♦
13 9387478006 Under cover R ♦
14 9387596007 Front panel total assy ♦
3-5. Wall mounted type - (02-27) - 3. Indoor unit parts list
