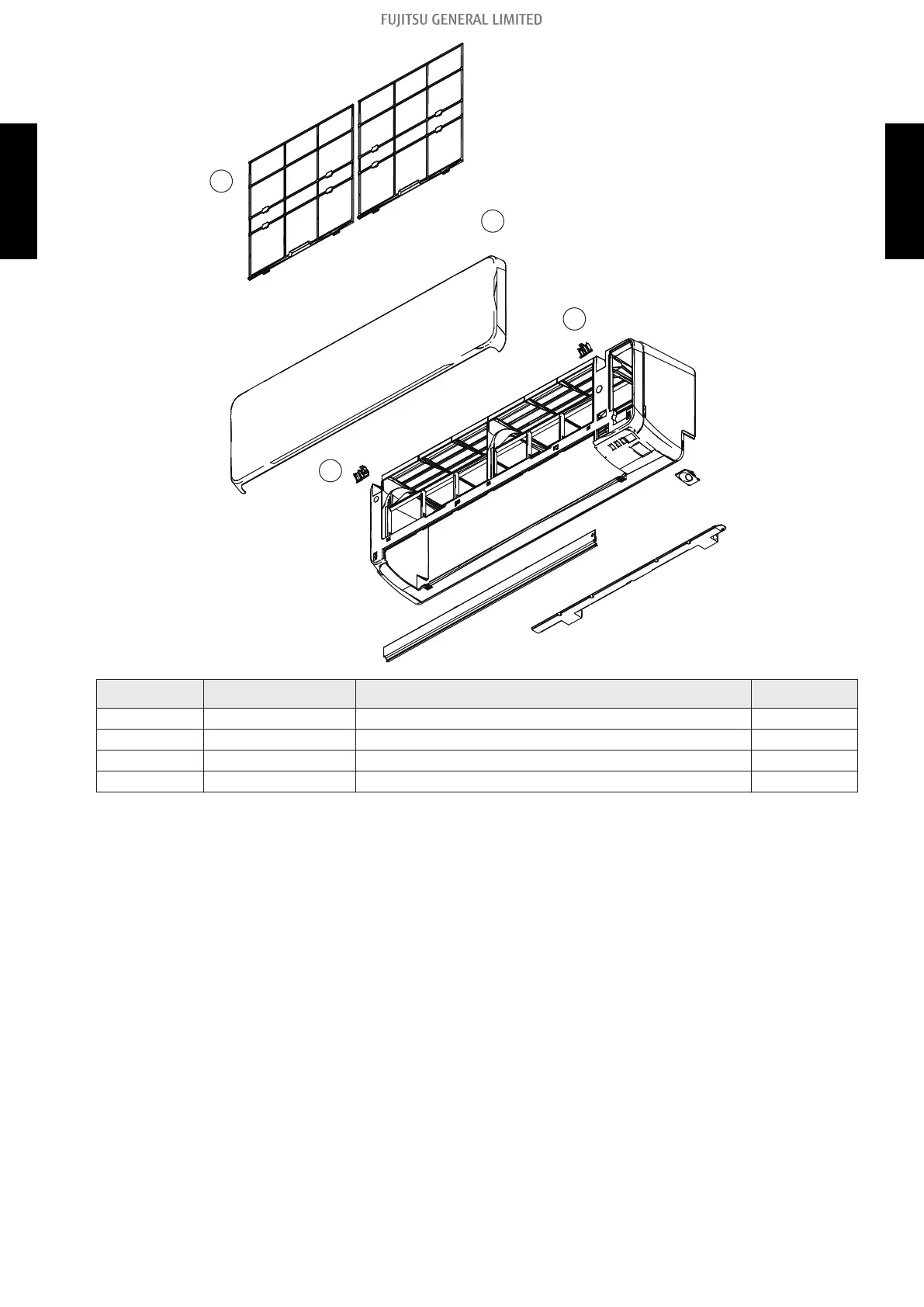

Front panel B
Panel cover
Front panel
Frontpanel
cover
22
21
23
24
Item no. Part no. Part name Service part
21 9387473001 Air filter ♦
22 9387756005 Intake grille assy ♦
23 9333719009 Grille clamper L ♦
24 9333704005 Grille clamper R ♦
3-5. Wall mounted type - (02-28) - 3. Indoor unit parts list
