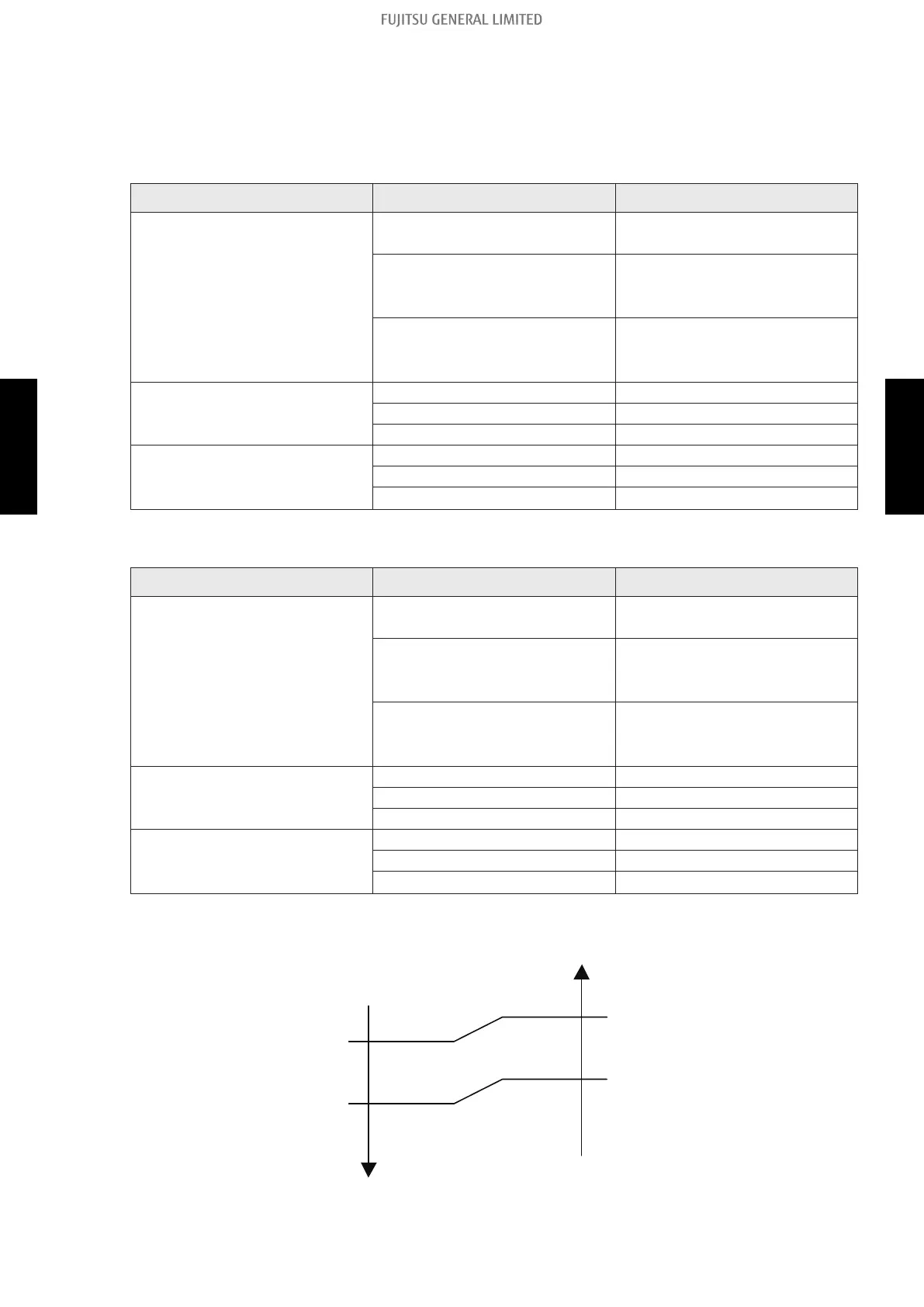

Fujitsu AO G12KATA Series User Manual

¢ Wall mounted type (For KMTB, KMCC, and KMCE)
• Rotation number range of compressor
Unit: rps
– Model: AOHG14KBTA2
Model name Outdoor temperature zone Operating rotation number
ASHG07KMTB
ASHG09KMTB
X zone 28
ASHG12KMTB
ASHG14KMTB
ASHG07KMCC
J zone 28
ASHG09KMCC
ASHG12KMCC
ASHG14KMCC
Y zone 0
ASHG07KMCE
X zone 18
J zone 18
Y zone 0
ASHG09KMCE
ASHG12KMCE
ASHG14KMCE
X zone 14
J zone 14
Y zone 0
– Model: AOHG18KBTA2
Model name Outdoor temperature zone Operating rotation number
ASHG07KMTB
ASHG09KMTB
X zone 24
ASHG12KMTB
ASHG14KMTB
ASHG07KMCC
J zone 24
ASHG09KMCC
ASHG12KMCC
ASHG14KMCC
Y zone 0
ASHG07KMCE
X zone 14
J zone 14
Y zone 0
ASHG09KMCE
ASHG12KMCE
ASHG14KMCE
X zone 10
J zone 10
Y zone 0
• Compressor control based on room temperature
Ts+0.5°C
Ts -1.5°C
Ts-0.5°C
Ts+1.5°C
X zone
J zone
Y zone
Room temperature drops
Room temperature rises
Ts: Set temperature
1-3. Dry operation
- (04-19) - 1. Rotation number control of compressor
CONTROL AND FUNCTIONS CONTROL AND FUNCTIONS
