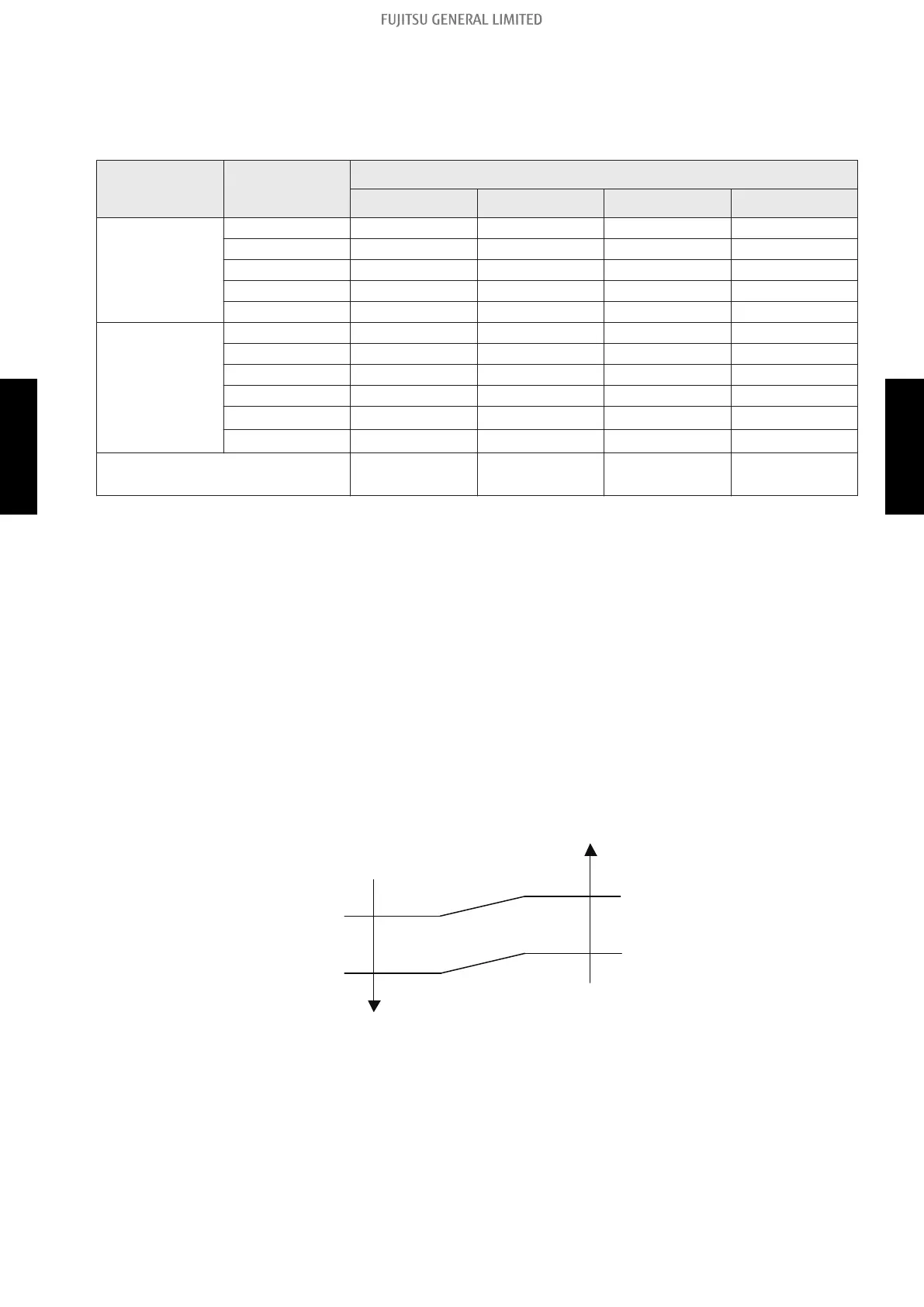

Fujitsu AO G12KATA Series User Manual

¢ Slim duct type
 Fan speed
Indoor fan speed is defined as below.
Operation mode Fan mode
Speed (rpm)
ARXG07KLLAP ARXG09KLLAP ARXG12KLLAP ARXG14KLLAP
Heating
HIGH 1,160 1,260 1,340 1,560
MED 1,000 1,160 1,240 1,400
LOW 940 1,060 1,140 1,240
QUIET 880 960 1,030 1,030
S-LOW 500 500 500 500
Cooling/Fan
HIGH 1,160 1,260 1,340 1,560
MED 1,000 1,160 1,240 1,400
LOW 940 1,060 1,140 1,240
QUIET 880 960 1,030 1,030
Soft quiet
500*
1
500*
1
500*
1
500*
1
S-LOW
500*
2
500*
2
500*
2
500*
2
Dry
X zone: 880
J zone: 880
X zone: 960
J zone: 960
X zone: 1,030
J zone: 1,030
X zone: 1,030
J zone: 1,030
*1: Fan mode only
*2: Cooling mode only
 Fan operation
Airflow can be switched in 5 steps such as AUTO, QUIET, LOW, MED, HIGH while indoor unit fan
only runs.
When fan mode is set at AUTO, it operates on MED fan speed.
 Cooling operation
Switch the airflow AUTO, and indoor fan motor will run according to room temperature, as below.
On the other hand, if switched in HIGH—QUIET, indoor motor will run at a constant airflow of COOL
operation modes QUIET, LOW, MED, HIGH as shown in “Fan speed” above.
Airflow change over (Cooling: Auto)
When room
temperature rises
When room
temperature drops
Tr - Ts ≥ 1.5°C
MED mode
LOW mode
LOW mode
1.5
°C > Tr - Ts ≥ 0.5°C
0.5°C > Tr - Ts
Tr - Ts ≥ 2.5°C
2.5
°C > Tr - Ts ≥ 1.5°C
1.5°C > Tr - Ts
 Dry operation
During dry operation, fan speed setting can not be changed as shown in “Fan speed” above.
3-1. Indoor fan control
- (04-35) - 3. Fan control
