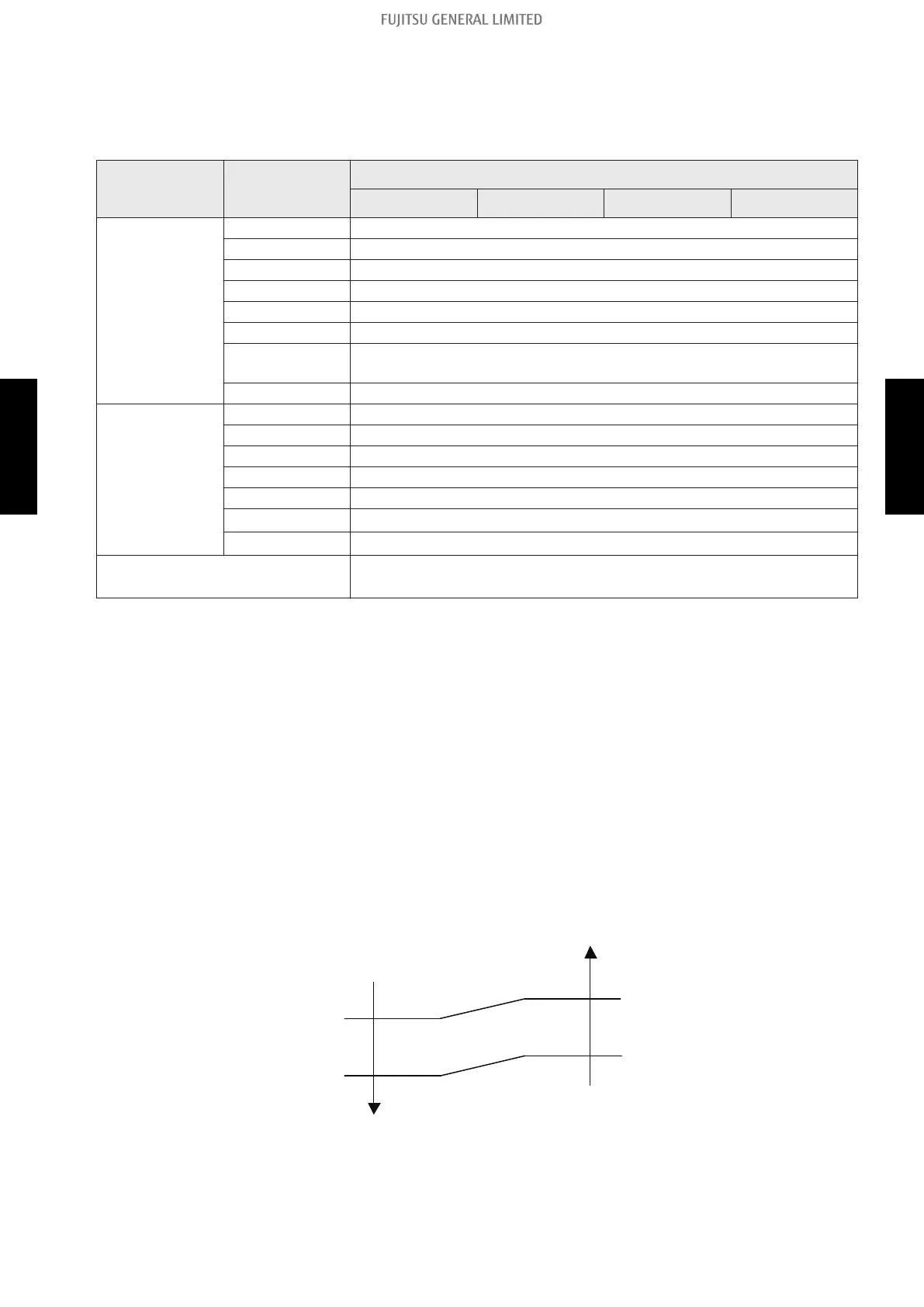

¢ Wall mounted type (For KGTE)
Fan speed
Indoor fan speed is defined as below.
Operation mode Fan mode
Speed (rpm)
ASHG07KGTE ASHG09KGTE ASHG12KGTE ASHG14KGTE
Heating
POWERFUL 1,140
HIGH 1,090
MED+ 1,040
MED 980
LOW 850
QUIET 710
Cool air
prevention
600
S-LOW 480
Cooling/Fan
POWERFUL 1,140
HIGH 1,090
MED 980
LOW 850
QUIET 680
Soft quiet
600*
1
S-LOW
480*
2
Dry
X zone: 680
J zone: 680
*1: Fan mode only
*2: Cooling mode only
Fan operation
Airflow can be switched in 6 steps such as AUTO, QUIET, LOW, MED, MED—HIGH, HIGH while
indoor unit fan only runs.
When fan mode is set at AUTO, it operates on MED fan speed.
Cooling operation
Switch the airflow AUTO, and indoor fan motor will run according to room temperature, as below.
On the other hand, if switched in HIGH—QUIET, indoor motor will run at a constant airflow of COOL
operation modes QUIET, LOW, MED, HIGH as shown in “Fan speed” above.
Airflow change over (Cooling: Auto)
When room
temperature rises
When room
temperature drops
Tr - Ts ≥ 1.5°C
MED mode
LOW mode
LOW mode
1.5
°C > Tr - Ts ≥ 0.5°C
0.5°C > Tr - Ts
Tr - Ts ≥ 2.5°C
2.5
°C > Tr - Ts ≥ 1.5°C
1.5°C > Tr - Ts
3-1. Indoor fan control
