¢ Wall mounted type (For KMCE)

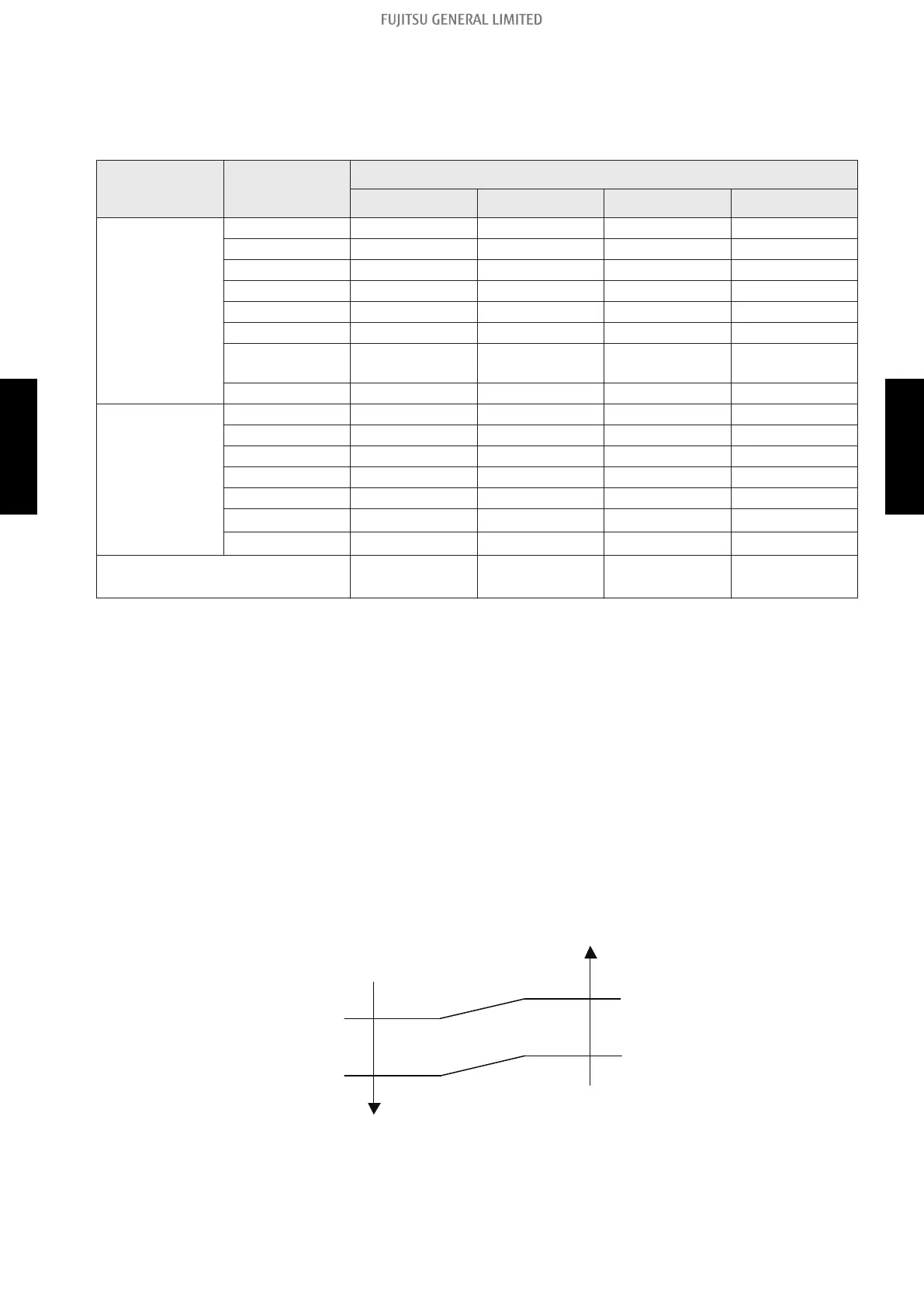

 Fan speed
Indoor fan speed is defined as below.
Operation mode Fan mode
Speed (rpm)
ASHG07KMCE ASHG09KMCE ASHG12KMCE ASHG14KMCE
Heating
POWERFUL 1,230 1,270 1,310 1,400
HIGH 1,160 1,200 1,240 1,330
MED+ 1,060 1,060 1,120 1,160
MED 970 990 1,050 1,100
LOW 820 830 900 910
QUIET 650 650 650 670
Cool air
prevention
570 570 570 580
S-LOW 420 420 420 470
Cooling/Fan
POWERFUL 1,140 1,200 1,200 1,320
HIGH 1,070 1,130 1,130 1,250
MED 920 940 940 1,020
LOW 780 780 780 810
QUIET 630 630 630 630
Soft quiet
490*
1
490*
1
490*
1
510*
1
S-LOW
420*
2
420*
2
420*
2
470*
2
Dry
X zone: 630
J zone: 630
X zone: 630
J zone: 630
X zone: 630
J zone: 630
X zone: 630
J zone: 630
*1: Fan mode only
*2: Cooling mode only
 Fan operation
Airflow can be switched in 5 steps such as AUTO, QUIET, LOW, MED, HIGH while indoor unit fan
only runs.
When fan mode is set at AUTO, it operates on MED fan speed.
 Cooling operation
Switch the airflow AUTO, and indoor fan motor will run according to room temperature, as below.
On the other hand, if switched in HIGH—QUIET, indoor motor will run at a constant airflow of COOL
operation modes QUIET, LOW, MED, HIGH as shown in “Fan speed” above.
Airflow change over (Cooling: Auto)
When room
temperature rises
When room
temperature drops
Tr - Ts ≥ 1.5°C
MED mode
LOW mode
LOW mode
1.5
°C > Tr - Ts ≥ 0.5°C
0.5°C > Tr - Ts
Tr - Ts ≥ 2.5°C
2.5
°C > Tr - Ts ≥ 1.5°C
1.5°C > Tr - Ts
 Dry operation
During dry operation, fan speed setting can not be changed as shown in “Fan speed” above.
3-1. Indoor fan control
- (04-46) - 3. Fan control
CONTROL AND FUNCTIONS CONTROL AND FUNCTIONS
