2-1. HORIZONTAL LOUVER CONTROL
Each time the button is pressed, the air direction range will
change as follows:
Cooling / Heating / Dry / Fan mode :
Use the air direction adjustments within the ranges shown above.
(Function Range)
(

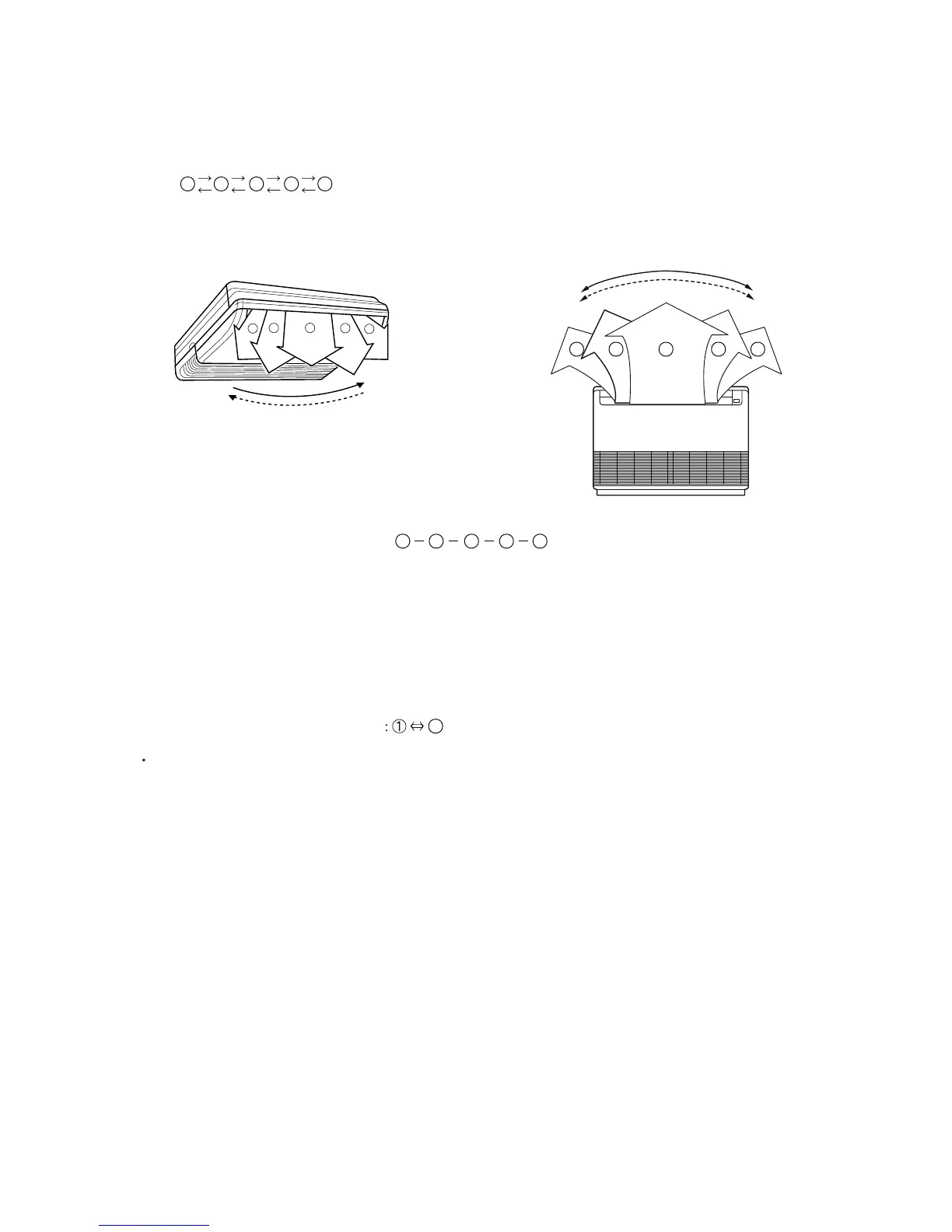

Fig.13 : Air Direction Range : Ceiling installation)
(Operation Range)
2-2. SWING OPERATION
When the swing signal is received from the remote controller, the horizontal louver starts to swing.
The range of swing depends on the set airflow direction.
When the indoor fan is either at S-Lo or Stop mode, the swinging operation is interrupted
and it stops at either upper end or bottom end.
01-15
( Stop mode means Operation stop.)
12345
12345
1
3
4
5
2
(Swinging Range)
Cooling / Heating / Dry / Fan mode
5
12 3 45
( Fig.14 : Air Direction Range : Floor installation)
To Next Page
