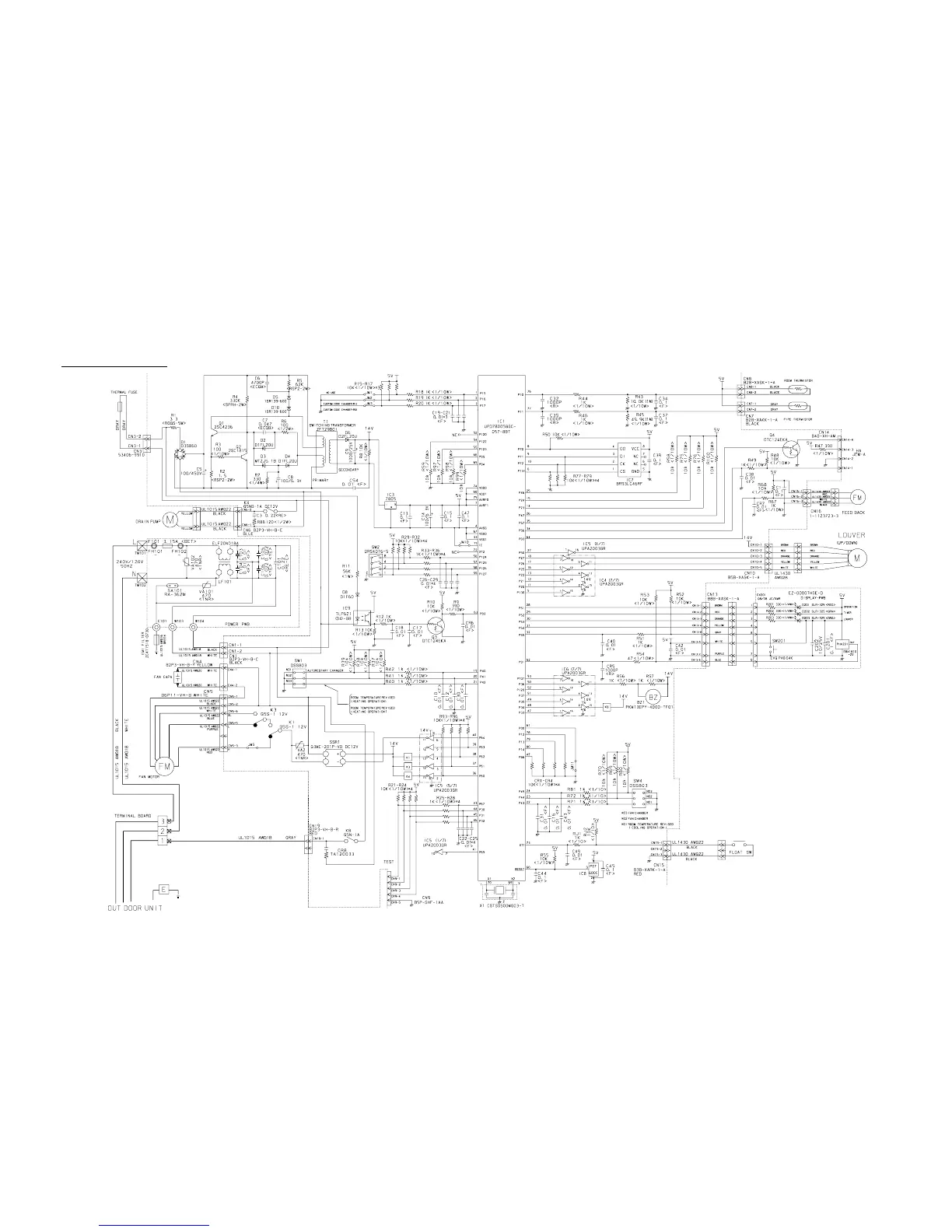

Fujitsu AOG25RNBL - Indoor PCB Circuit Diagram

440V
6uF
MANUAL AUTO
SWITCH
CONTROLLER PCB ASSEMBLY ( MAIN PCB )
ARY25ALC,ARG25ALC,ART25ALC : EZ-00209WSE-C
ARY30ALC,ARG30ALC,ART30ALC : EZ-0020PWSE-C
I N D O O R P R I N T E D C I R C U I T B O A R D
C I R C U I T D I A G R A M
Models : ARY25ALC ARY30ALC
ARG25ALC ARG30ALC
ART25ALC ART30ALC
18
2003.05.08
