Fujitsu AOG30KATA Series Service Instruction

3. Fan control
Tr: Room temperature
Ts: Setting temperature

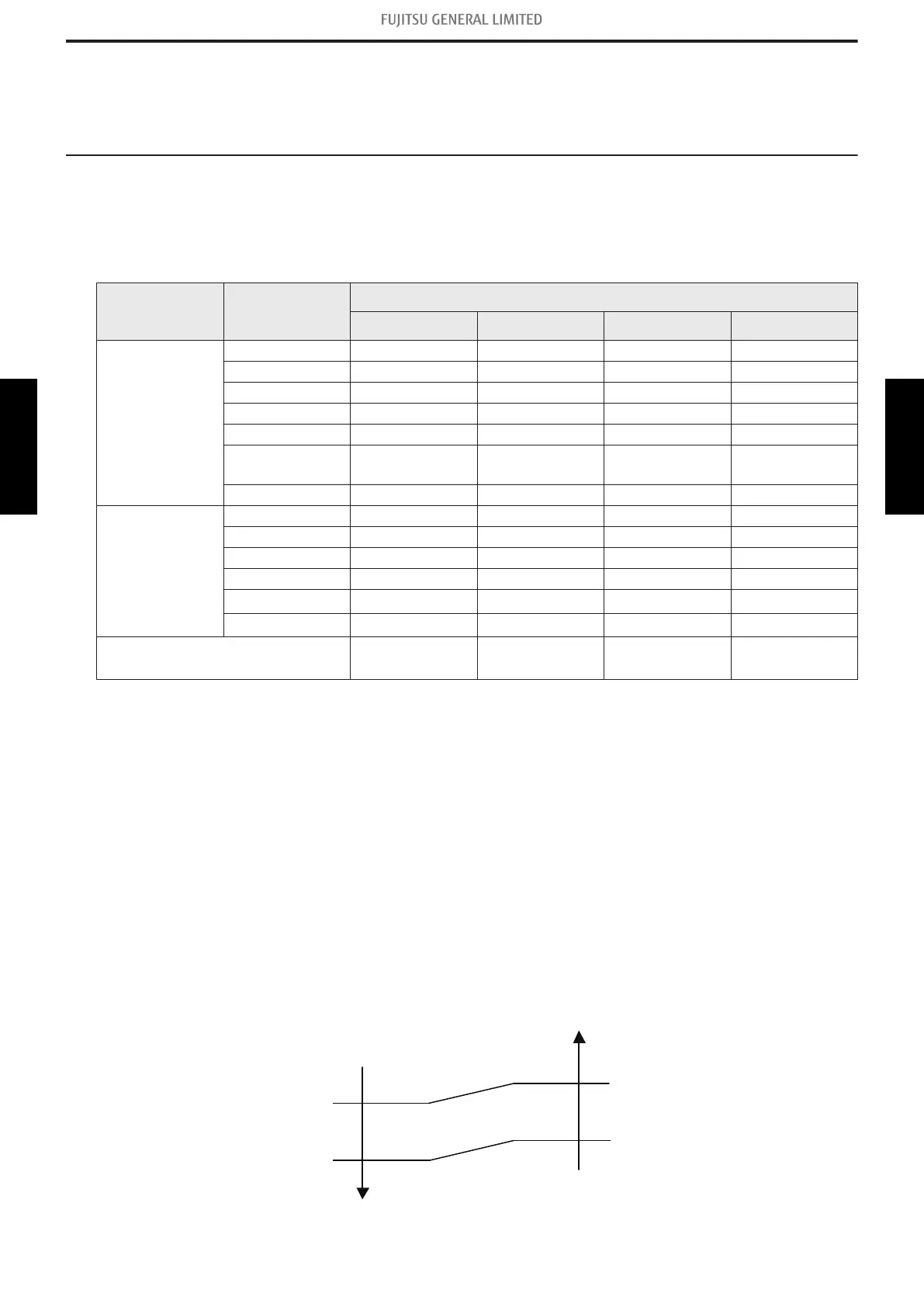

3-1. Indoor fan control
¢ Fan speed
Indoor fan speed is defined as below.
Operation mode Fan mode
Speed (rpm)
AUXG30KRLB AUXG36KRLB AUXG45KRLB AUXG54KRLB
Heating
HIGH 570 640 670 690
MED+ 530 600 630 680
MED 510 560 590 630
LOW 470 510 530 570
QUIET 420 430 470 480
Cool air
prevention
300 300 300 300
S-LOW 270 270 270 270
Cooling/Fan
HIGH 570 640 670 690
MED 510 560 590 630
LOW 470 510 530 570
QUIET 420 430 470 480
Soft quiet
300*
1
300*
1
300*
1
300*
1
S-LOW
270*
2
270*
2
270*
2
270*
2
Dry
X zone: 420
J zone: 420
X zone: 430
J zone: 430
X zone: 470
J zone: 470
X zone: 480
J zone: 480
*1: Fan mode only
*2: Cooling mode only
¢ Fan operation
Airflow can be switched in 5 steps such as AUTO, QUIET, LOW, MED, HIGH while indoor unit fan
only runs.
When fan mode is set at AUTO, it operates on MED fan speed.
¢
Cooling operation
Switch the airflow AUTO, and indoor fan motor will run according to room temperature, as below.
On the other hand, if switched in HIGH—QUIET, indoor motor will run at a constant airflow of COOL
operation modes QUIET, LOW, MED, HIGH as shown in “Fan speed” above.
Airflow change over (Cooling: Auto)
When room
temperature rises
When room
temperature drops
Tr - Ts ≥ 2°C
HIGH mode
MED mode
LOW mode
2°C > Tr - Ts ≥ 1°C
1°C > Tr - Ts
Tr - Ts ≥ 2.5°C
2.5
°C > Tr - Ts ≥ 1.5°C
1.5°C > Tr - Ts
3-1. Indoor fan control
- (04-12) - 3. Fan control
CONTROL AND FUNCTIONS CONTROL AND FUNCTIONS
