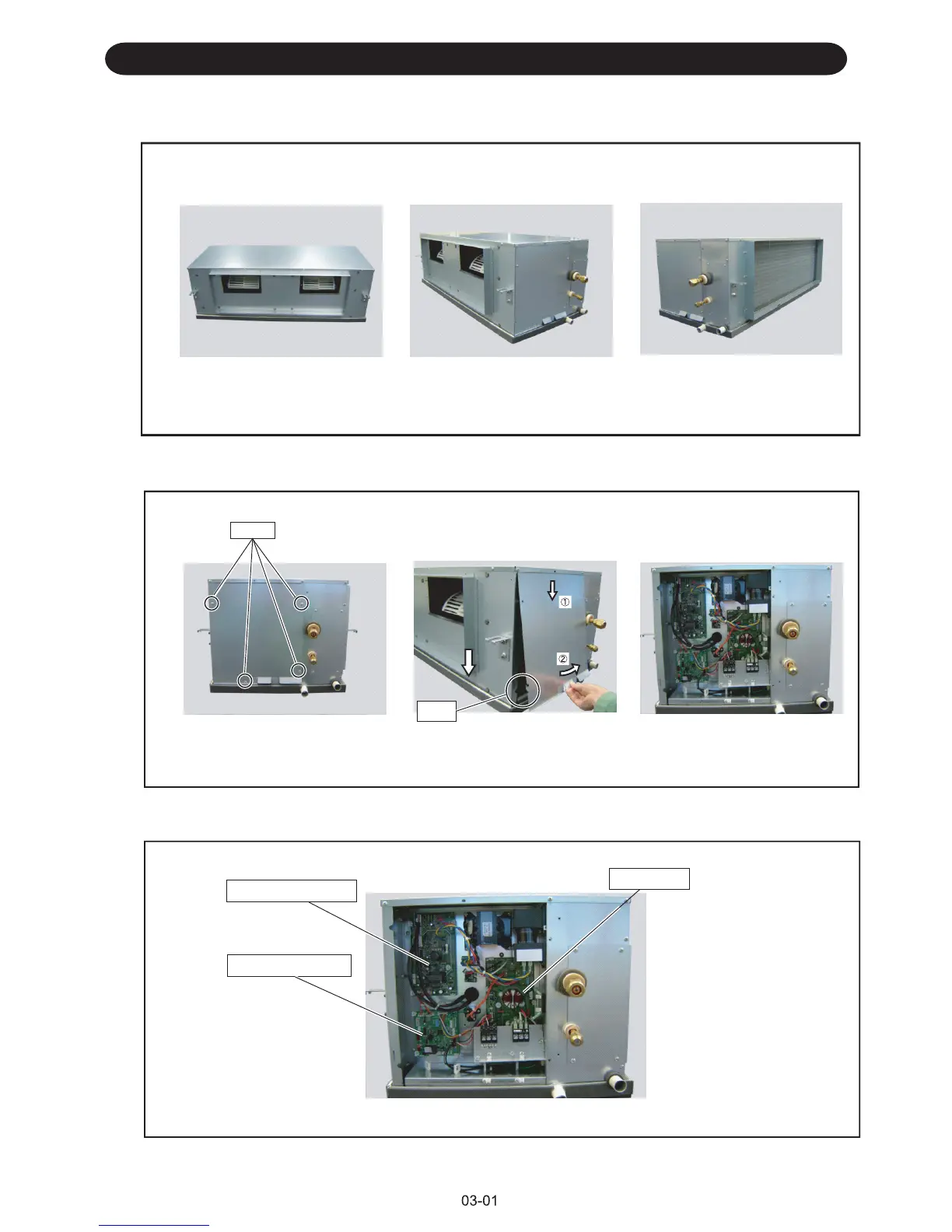

1. Appearance
2. CONTROL BOX COVER removal
3. POWER SUPPLY PCB, CONTROLLER PCB and FILTER PCB removal
DISASSEMBLY PROCESS
POWER SUPPLY PCB
screw
1) Remove the mounting screws
(4 places).
Hook
2) Remove the control box cover.
CONTROLLER PCB
FILTER PCB
FRONTVIEW
SIDEVIEW
MODEL : ARTG45 / 54LHTA
BACKVIEW
