Fujitsu AOU12RLFF Design & Technical Manual

- (02 - 08) -
OUTDOOR UNIT AOU9-15RLFF OUTDOOR UNIT AOU9-15RLFF
MODEL

: AOU15RLFF

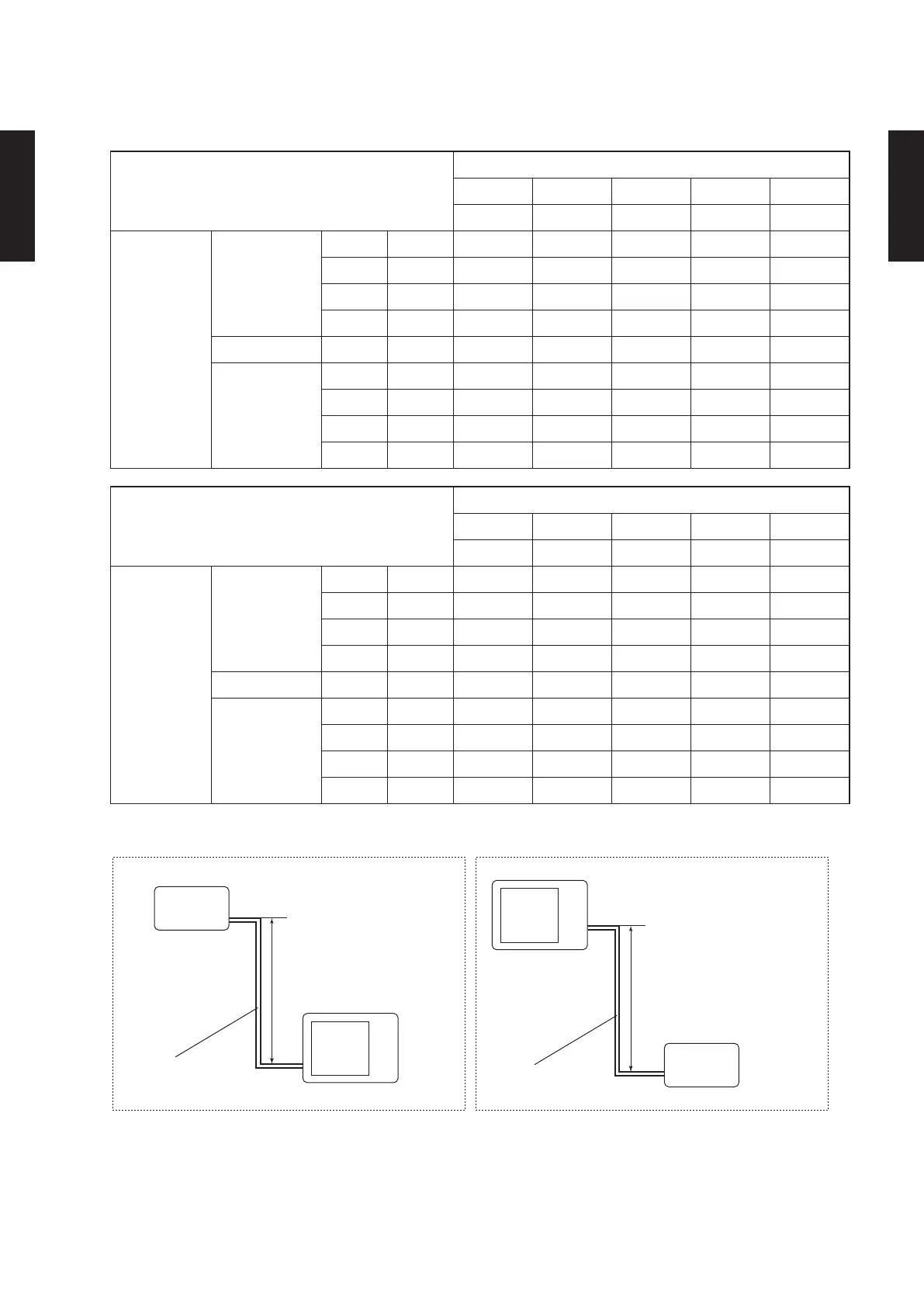

Height difference H

1 Indoor unit is higher than outdoor unit.

2 Indoor unit is lower than outdoor unit.
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
HEATING
Pipe length (m)
5m 7.5m 10m 15m 20m
17ft. 25ft. 33ft. 50ft. 67ft.
Height
difference H
Û
1
Indoor unit is
higher than
outdoor unit.
15m 50ft. - - - 0.994 0.979
10m 33ft. - - 1.012 0.994 0.979
7.5m 25ft. - 1.000 1.012 0.994 0.979
5m 17ft. 0.969 1.000 1.012 0.994 0.979
0m 0ft. 0.969 1.000 1.012 0.994 0.979
Û
2
Indoor unit is
lower than
outdoor unit
-5m -17ft. 0.964 0.995 1.007 0.989 0.974
-7. 5 m -25ft. - 0.993 1.004 0.986 0.972
-10m -33ft. - - 1.002 0.984 0.969
-15m -50ft. - - - 0.974 0.959
COOLING
Pipe length (m)
5m 7.5m 10m 15m 20m
17ft. 25ft. 33ft. 50ft. 67ft.
Height
difference H
Û
1
Indoor unit is
higher than
outdoor unit.
15m 50ft. - - - 0.951 0.950
10m 33ft. - - 0.979 0.967 0.966
7.5m 25ft. - 0.988 0.983 0.971 0.970
5m 17ft. 0.994 0.992 0.987 0.975 0.974
0m 0ft. 1.002 1.000 0.995 0.983 0.982
Û
2
Indoor unit is
lower than
outdoor unit
-5m -17ft. 1.002 1.000 0.995 0.983 0.982
-7. 5 m -25ft. - 1.000 0.995 0.983 0.982
-10m -33ft. - - 0.995 0.983 0.982
-15m -50ft. - - - 0.983 0.982
H
H
