Fujitsu AOU18RLX Service Instruction

03-19

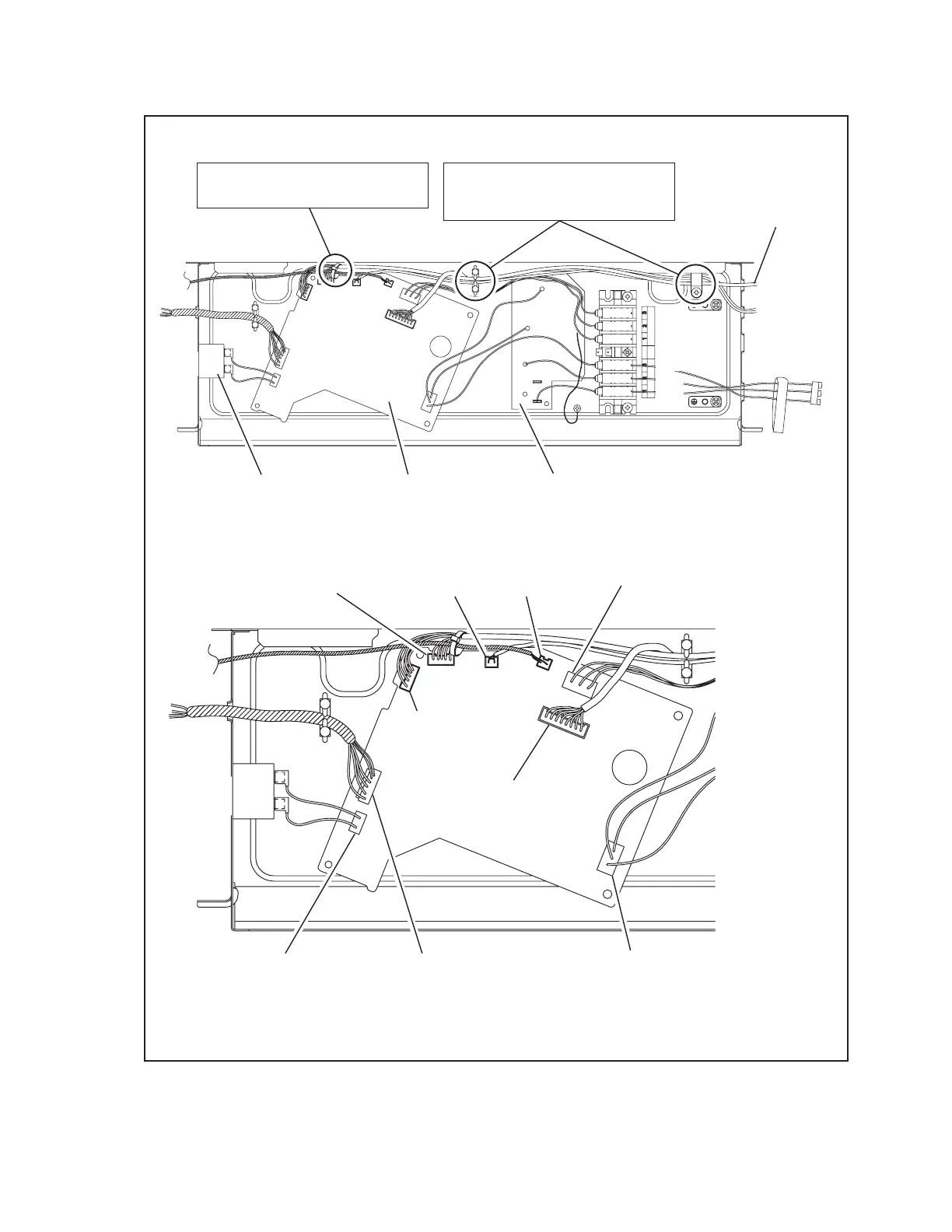

6. Wiring and Parts layout
BIND
(Wire with connector (For Stepping motor))
(Thermistor (Room temp.))
CLAMP
(Wire with connector (For Stepping motor))
(Thermistor (Pipe temp.))
(Wire with connector (For Display))
CN17
(Remocon)
CN8
Thermistor
(Room temp.)
CN7
Thermistor
(Pipe temp.)
CN11
Stepping motor
(Left / Right)
CN10
Stepping motor
(Up / Down)
CN13
(Display)
CN4
(Capacitor)
CN5
(FAN MOTOR)
CN1
(Noise Filter PCB)
Wire with connector
(For Stepping motor)
Capacitor,Plastic
WHITE
BLACK
RED
Detail View
BLACK
WHITE
RED
RED
WHITE
BLACK
GREEN
WHITE
BLACK
CONTROLLER PCB
Power Supply PCB
