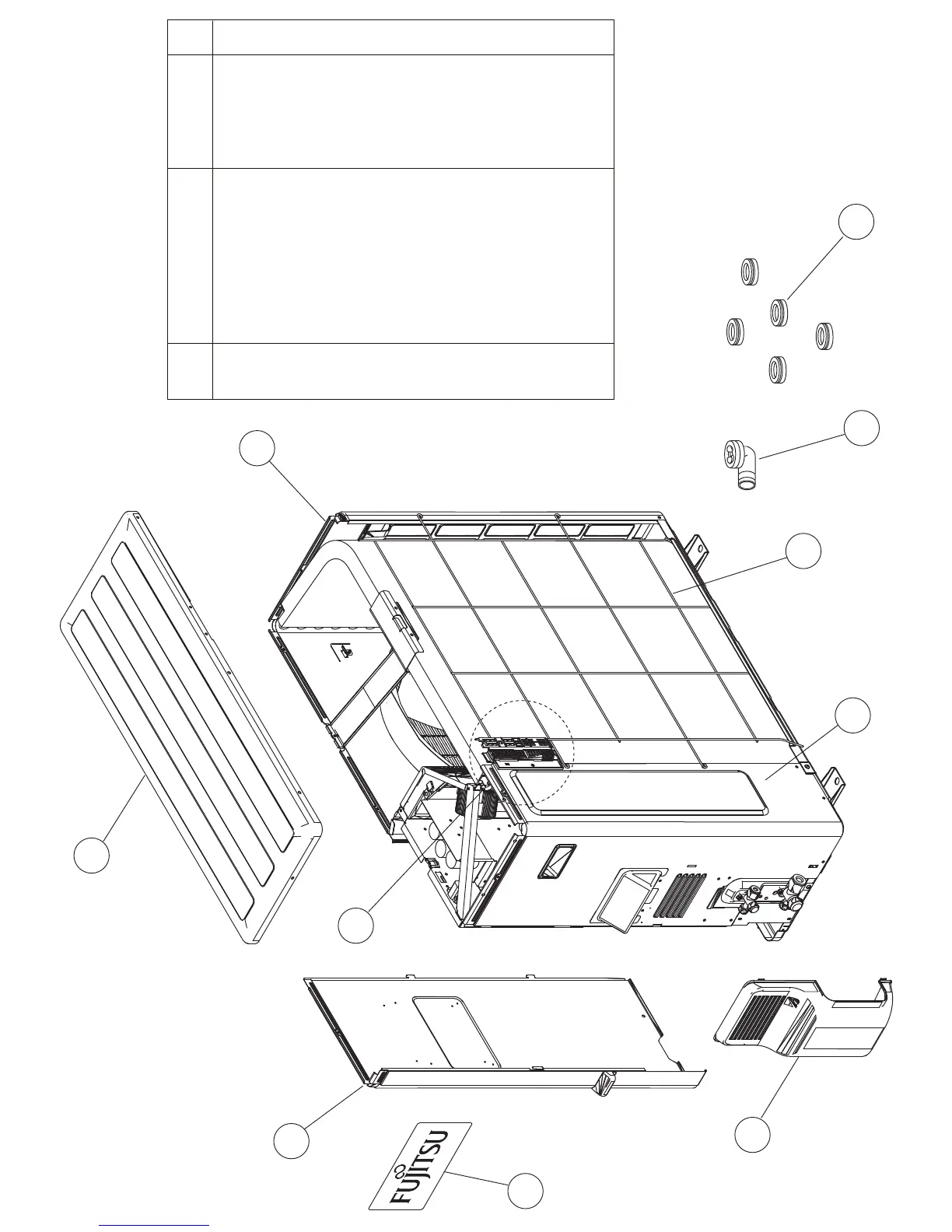

OUTDOOR UNIT
AOU18RLXFW1
AOU24RLXFW1
PARTS
2016.01.12 15
7
2
1
8
9
6
5
4
3
3 Top Panel Sub Assy 9374417032
4 Front Panel Sub Assy 9374414079
1 Protective Net 9375381011
9 Drain Assy 9303029015
10 Drain Cap 313166024302
5 Service Panel Sub Assy 9374415052
7 Right Panel Sub Assy 9374416134
6 Emblem Rear 9351355005
8 Valve Cover 9374174010
2 Thermo Holder 9375211011
Ref. Part numberDescription
10
To Next Page
