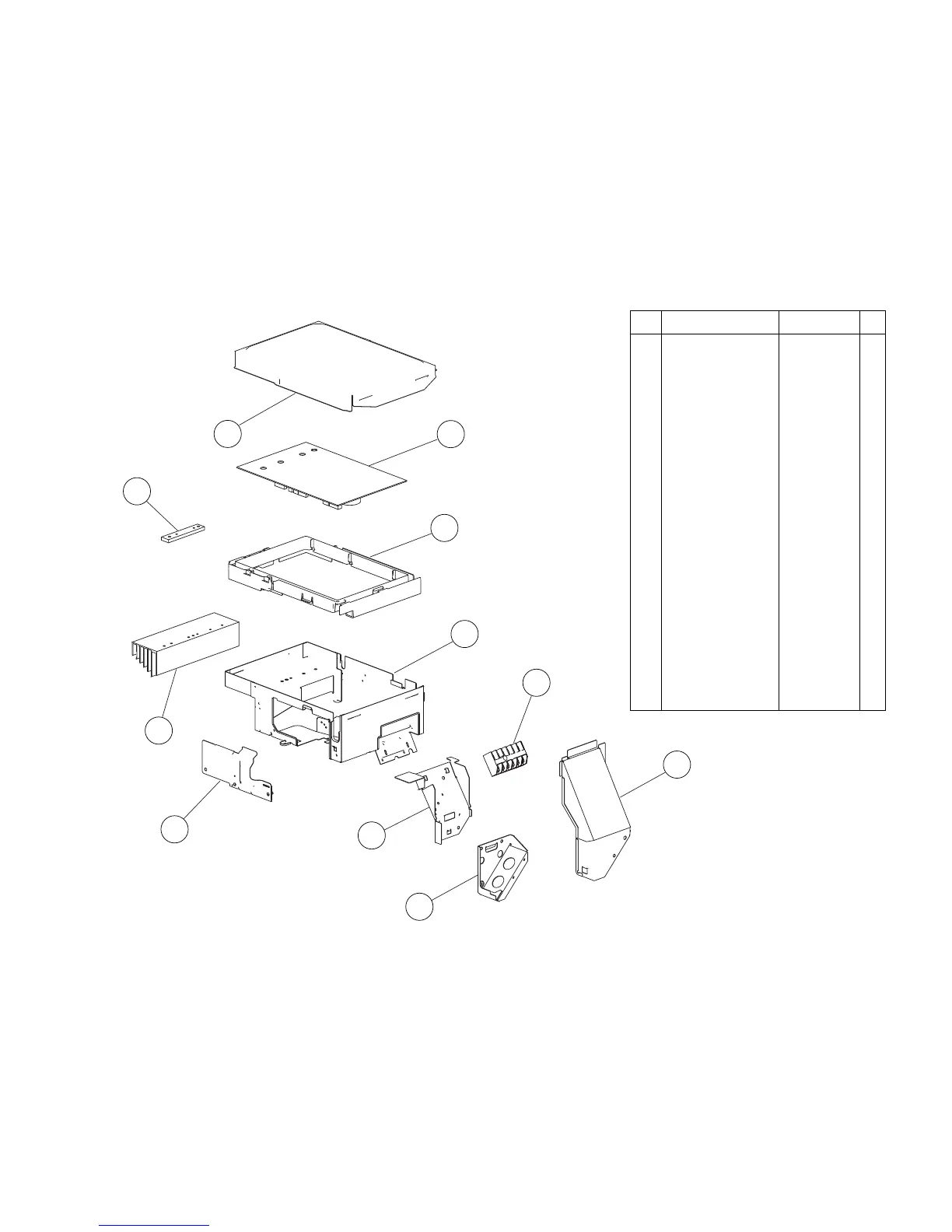

OUTDOOR UNIT
2012.11.07 17
-- Outdoor Thermistor 9900565008
26 Terminal Bracket 9317689021
27 Terminal 6P 9900016098
28
Inverter Case Cover
9331258012
Terminal Cover Assy 9317898041
29 Bracket Conduit 9313938017
30 Heat Sink A 9331263030
31 Heat Sink B 9314090028
24
Main PCB (09)
9331279086
25
-- Thermistor Assy 9900628000
21 Sealed Panel 9331256025
22
Inverter Case Assy
9709369005
Main PCB (12)22 9709369012
23 PCB Holder 9331261012
Ref. Description Part number
