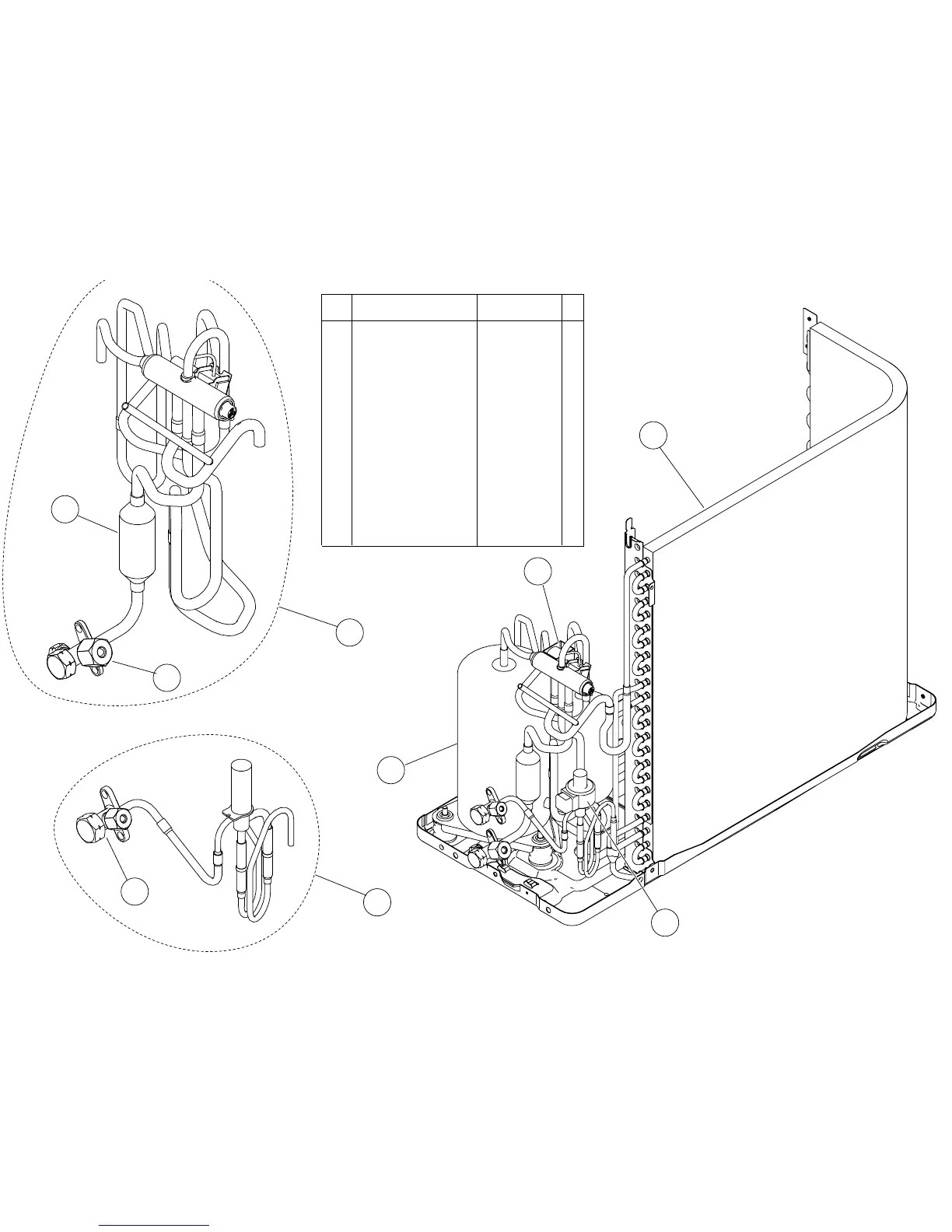

OUTDOOR UNIT
AOU9RL2
2012.10.31
18
42
Compressor Assy
9332603002
46
3-way Valve Assy
9332653007
49
2-way Valve Assy
9332652000
43
Solenoid
9970048029
41
Condenser Total Assy
9332837001
45
Muffler
9317398008
44
4-way Valve Assy
9332830002
48
Pulse Motor Valve Sub Assy
9332836004
47
Expansion Valve Coil
9970103025
Ref.
Description
Part number
42
48
41
45
46
44
49
43
47
18
20
Table of Contents
Table of Contents
1
Room Air Conditioner
1
Wall Mounted Type
1
Specifications
2
Dimensions
3
Refrigerant System Diagram
4
Circuit Diagram
5
Indoor Pcb Circuit Diagram
6
Outdoor Pcb Circuit Diagram
9
Error Detection
11
Parts (Indoor Unit)
12
Parts (Outdoor Unit)
17
Accessories
21
