9. Function settings
To adjust the functions of this product according to the installation environment, various types of
function settings are available.
NOTE:
Incorrect settings can cause a product malfunction.
9-1. Function settings on indoor unit
By using some components on the PCB, you can change the function settings.
Related components on the PCB and the applicable settings:
Component Setting content
DIP switch SW101
1 Drainage function setting
2 Auto louver grille setting
3 Fan delay setting
¢ Component location

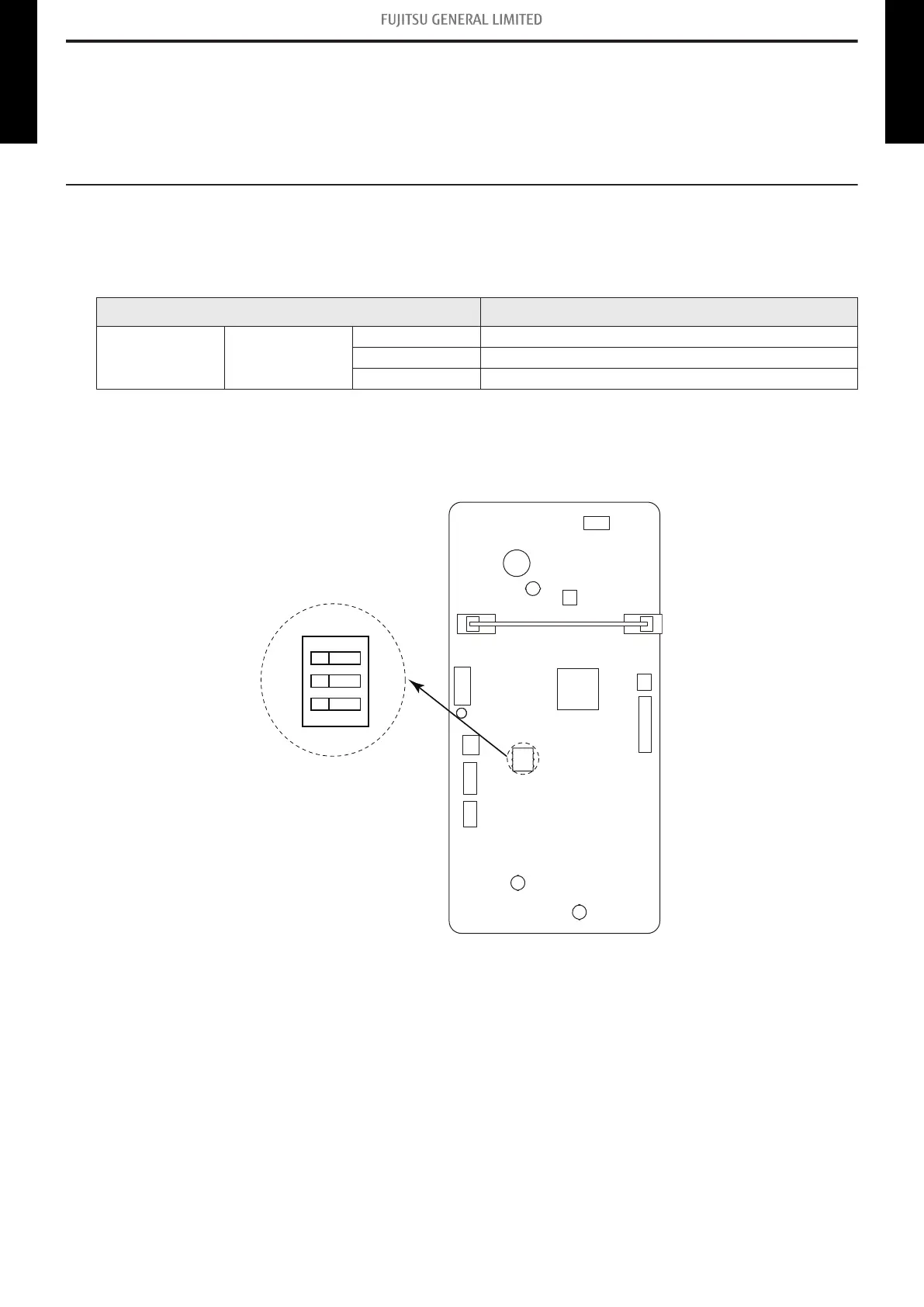

Components on the indoor unit main PCB used for the function settings are located as shown in
the following figure.
- 64 -
