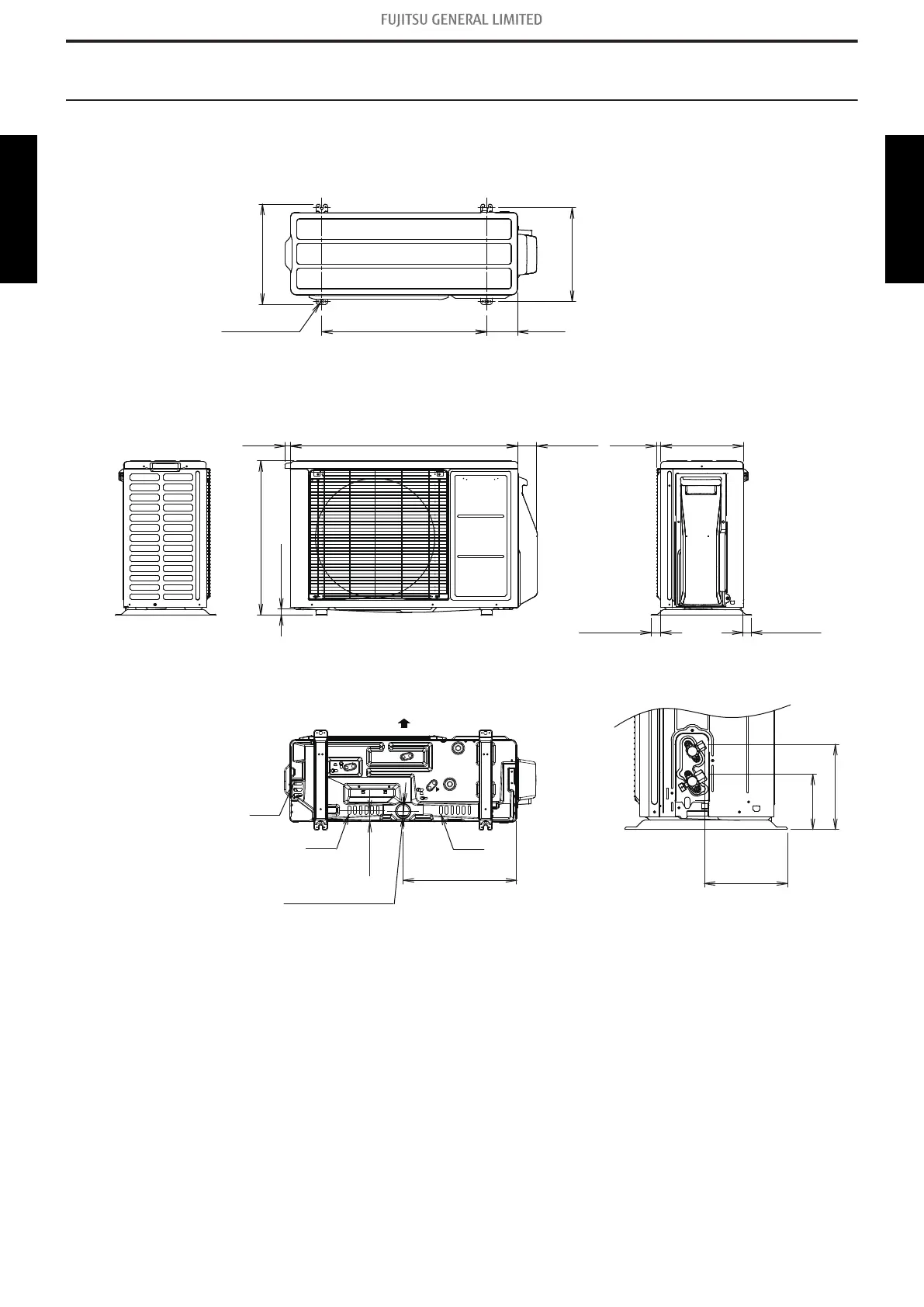

2. Dimensions

2-1. Models: AOUH09LUAS1

Top view

22-13/16 (580) 4-5/16 (109)

13 (330)

13-7/8 (353)

Pitch of bolts

for installation

Pitch of bolts for installation

0 hole

31-7/16 (799) 2-11/16 (68)

1-5/16 (33) 1-3/16 (30)

3/4 (19)

21-5/16 (542)

13/16 (20)

Side viewSide view

Front view

11-7/16 (290)1/2 (13)

Unit: in (mm)

Bottom view

Airflow

Drain port Ø1-5/8 (42)

Side view (Valve part)

4-3/4 (120)

4-1/4 (184)

7-1/16 (180)

1-7/16 (37)

15-11/16 (399)

Hole

- 81 -

2-1. Models: AOUH09LUAS1 2. Dimensions

OUTDOOR UNIT

AOUH09-18LUAS1

OUTDOOR UNIT

AOUH09-18LUAS1
