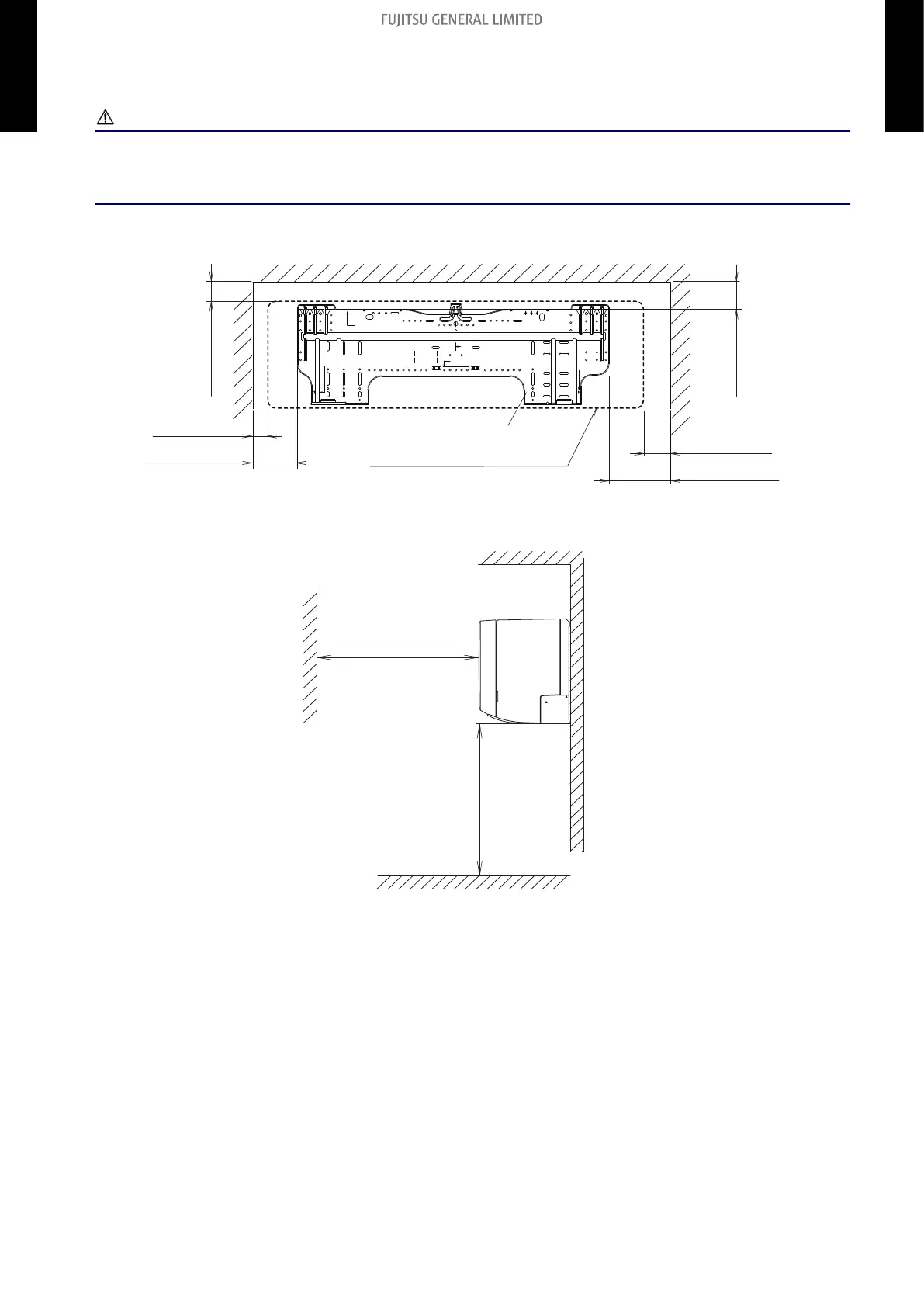

Installation space requirement
Provide sufficient installation space for product safety.
CAUTION
Do not place any other electrical products or household belongings under the product. Condensa-
tion dripping from the product might get them wet, and may cause damage or malfunction to the
property.
Unit: in (mm)
60 (1,500) or more
71 (1,800) or more
2 50) or more
2 (40) or more
5 (117) or more
71 or more
3 (70) or more
7 (160) or more
Wall hook bracket
Outline of the indoor unit
2-1. Indoor unit - (01-5) - 2. Dimensions
