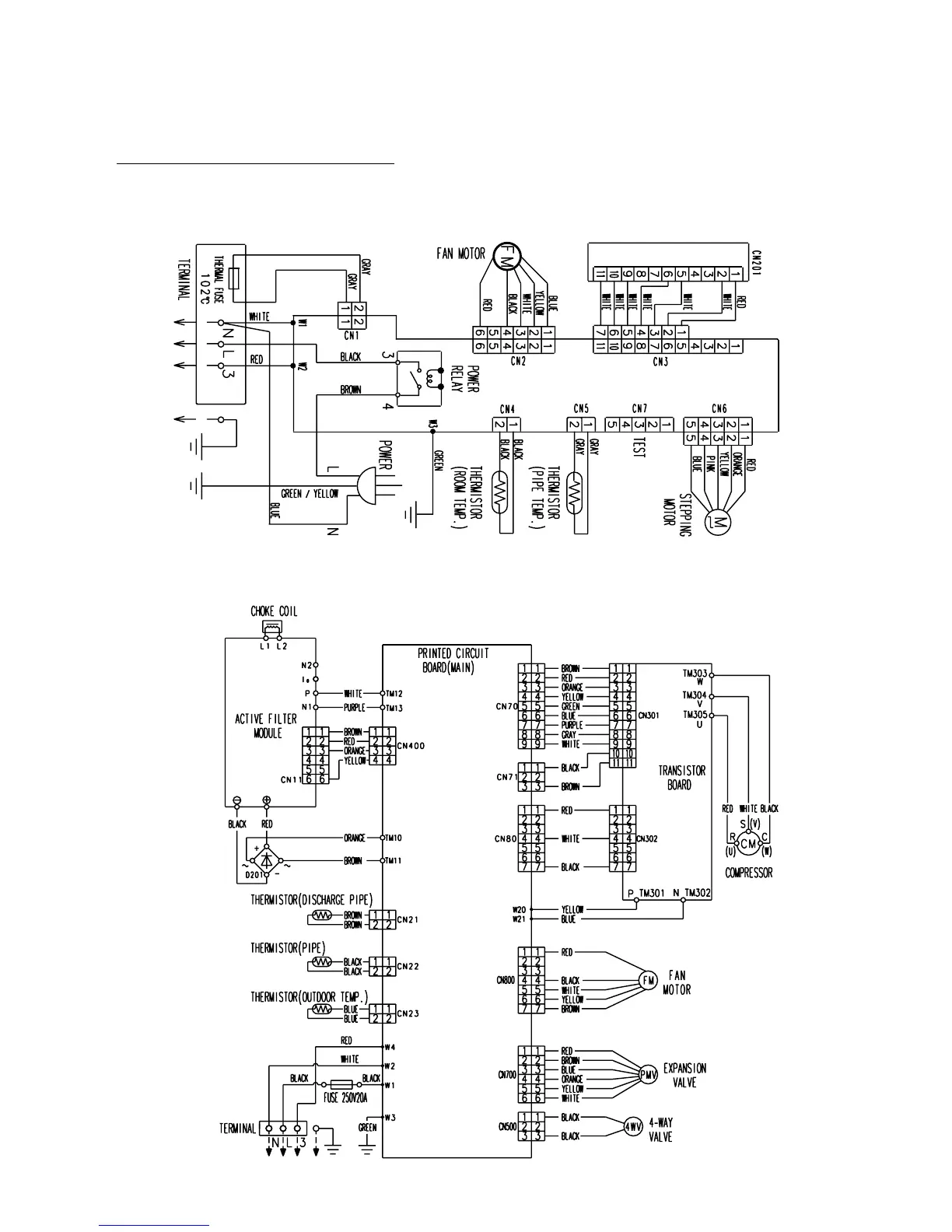

CIRCUIT DIAGRAM
INDOOR UNIT
OUTDOOR UNIT
ASY18LSBCW / AOY18LFBC
Models : ASY14LSBCW / AOY14LFBC
2004.11.09 4
DISPLAY BOARD
CONTROL BOARD
