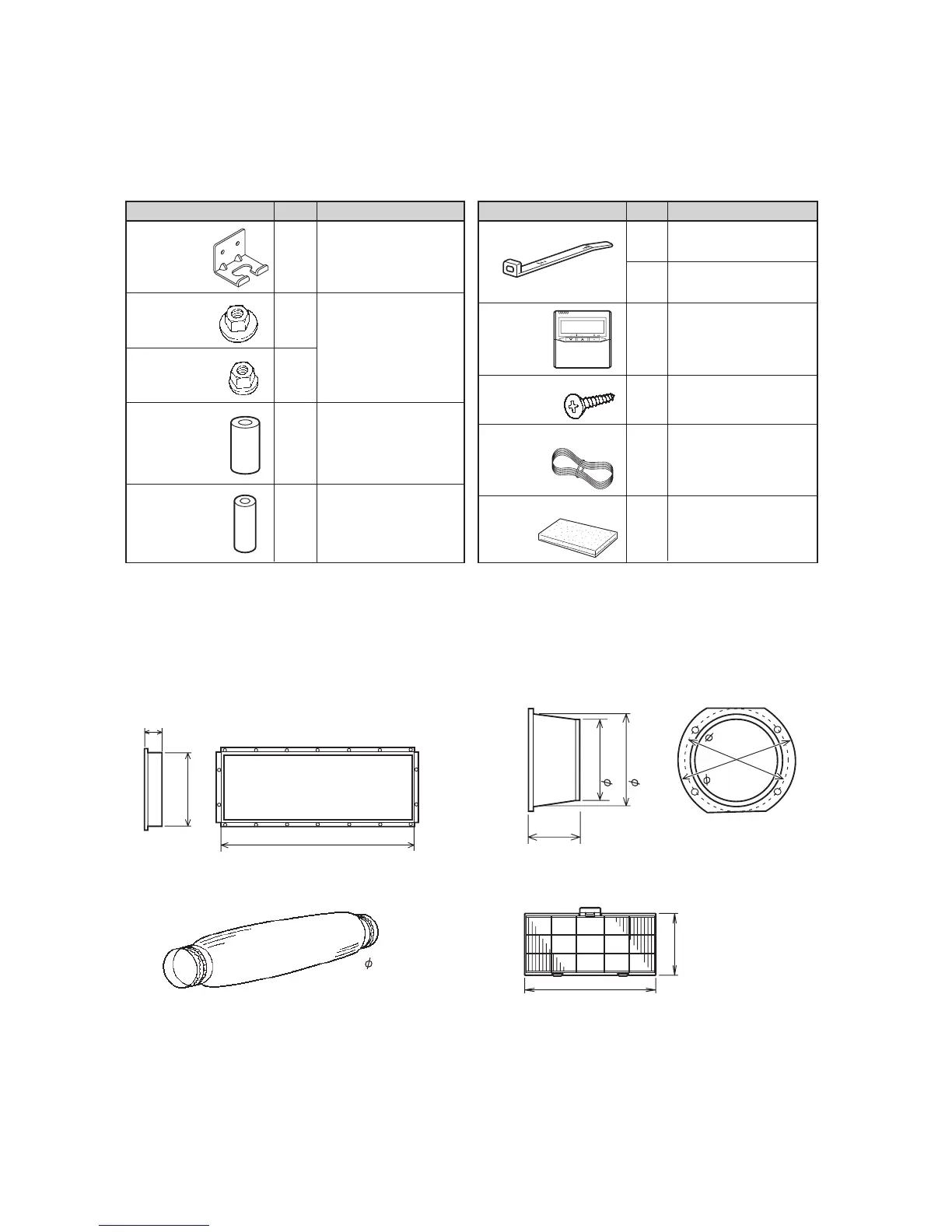

STANDARD ACCESSORIES
The following installation parts are furnished. Use them as required.
INDOOR UNIT ACCESSORIES
Name and Shape
Hanger
Special nut A
(large flange)
Special nut B
(small flange)
Coupler heat
insulation (large)
Coupler heat
insulation (small)
Q'ty
4
4
4
1
1
Application
For suspending the indoor
unit from ceiling
For suspending the indoor
unit from ceiling
For indoor side pipe joint
(large pipe)
For indoor side pipe joint
(small pipe)
Name and Shape
Binder
Remote
controller
Tapping screw
(flush heads)
Remote controller cord
Drain hose insulation
Q'ty
1
(large)
1
(small)
1
2
1
1
Application
For fixing the drain hose
For fixing the remote
controller cord
For installing the remote
controller
For connecting the remote
controller
Insulates the drain hose
and vinyl hose
OPTIONAL PARTS
When connecting the square duct and round duct, use the optional square flange or round flange and flexible duct.
Square flange Round flange
Model name : UTD-SF045T (P/N 9098180007) Model name : UTD-RF204 (P/N 9093160004)
Flexible duct Long-life filter
Model name : UTD-RD202 (P/N 9074165004) Model name : UTD-LF25NA (P/N9079892004)
Simple remote controller
Model name : UTB-YPB (P/N9077582006)
Remote sensor
Model name : UTD-RS100 (P/N9072619004)
40 mm
204 mm
1065 mm
L 2 m
507 mm
239 mm
85 mm
195 mm
205 mm
22
5
mm
23
5
mm
200 mm
2006.08.21 23
