2003.08.28
- 17 -
1
4
4
4
2
1
1
1
10
10
1
1
Name and Shape Q'ty Application Parts No.
Installation
template
Hanger
Special nut A
(large flange)
Special nut B
(small flange)
Coupler heat
insulation
(large)
Coupler heat
insulation
(small)
Nylon fastener
Remote
control unit
Remote
control unit
cord clamp
Tapping screw
(flush heads)
Auxiliary pipe assembly
Drain hose insulation
,,,
For positioning the indoor
unit
For suspending the indoor
unit from ceiling
For suspending the indoor
unit from ceiling
For indoor side pipe joint
(large pipe)
For indoor side pipe joint
(small pipe)
For fixing the drain hose
For installing the remote
control unit cord
For installing the remote
control unit cord clamp
For wiring conduit
(gas side) connection
Insulates the drain hose
and vinyl hose connection
9357036007
9356563009
313005446653
313005446759
9350716029
9352766015
312300787605
9371438030
313714181904
301141153027
9357038001
313806217708

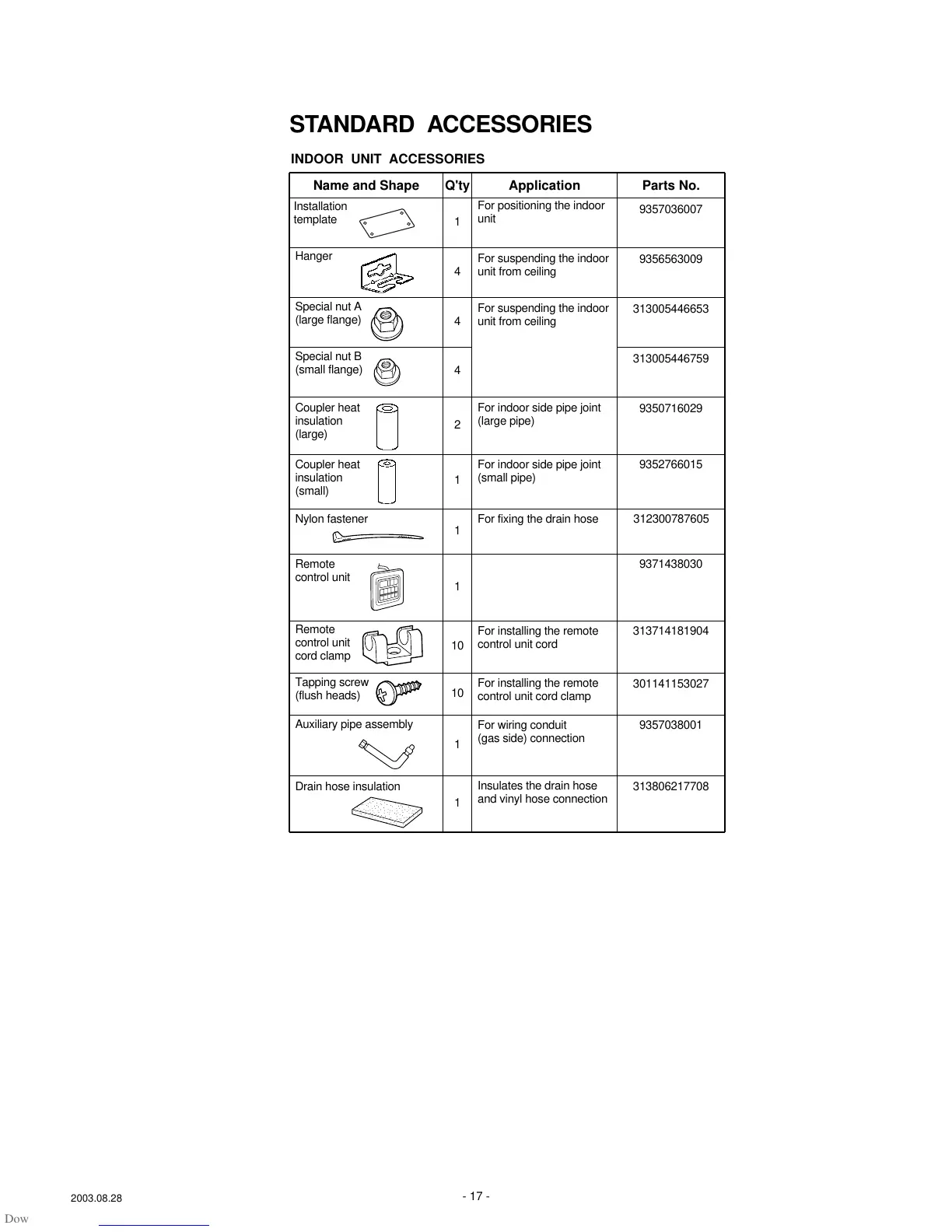

INDOOR UNIT ACCESSORIES
STANDARD ACCESSORIES
