- 18 -
2003.08.28
For outdoor unit drain
piping work
(Heat & Cool model only.)
Cap (drain)
Pipe (drain)
Flexible tube
313728031005
313013042915
313166024302
1
1
1
2
1
1
2
1
1
1
Name and Shape Q'ty Application Parts No.
Power cap
Auxiliary pipe assembly
Edge cover
Tapping screw
Binder
Putty
Coupler heat
insulation
For power cord installation
For wiring conduit (gas
side) connection (May not
be supplied, depending on
the model)
For wiring conduit
installation hole edge
protection
• For cabinet A and
cabinet D mounting (1)
• Spare (1)
For power cord binding
For sealing
For outdoor side pipe joint
9352173011
9355292016
9352436000
301463040100
313035356905
303020200114
313005074759

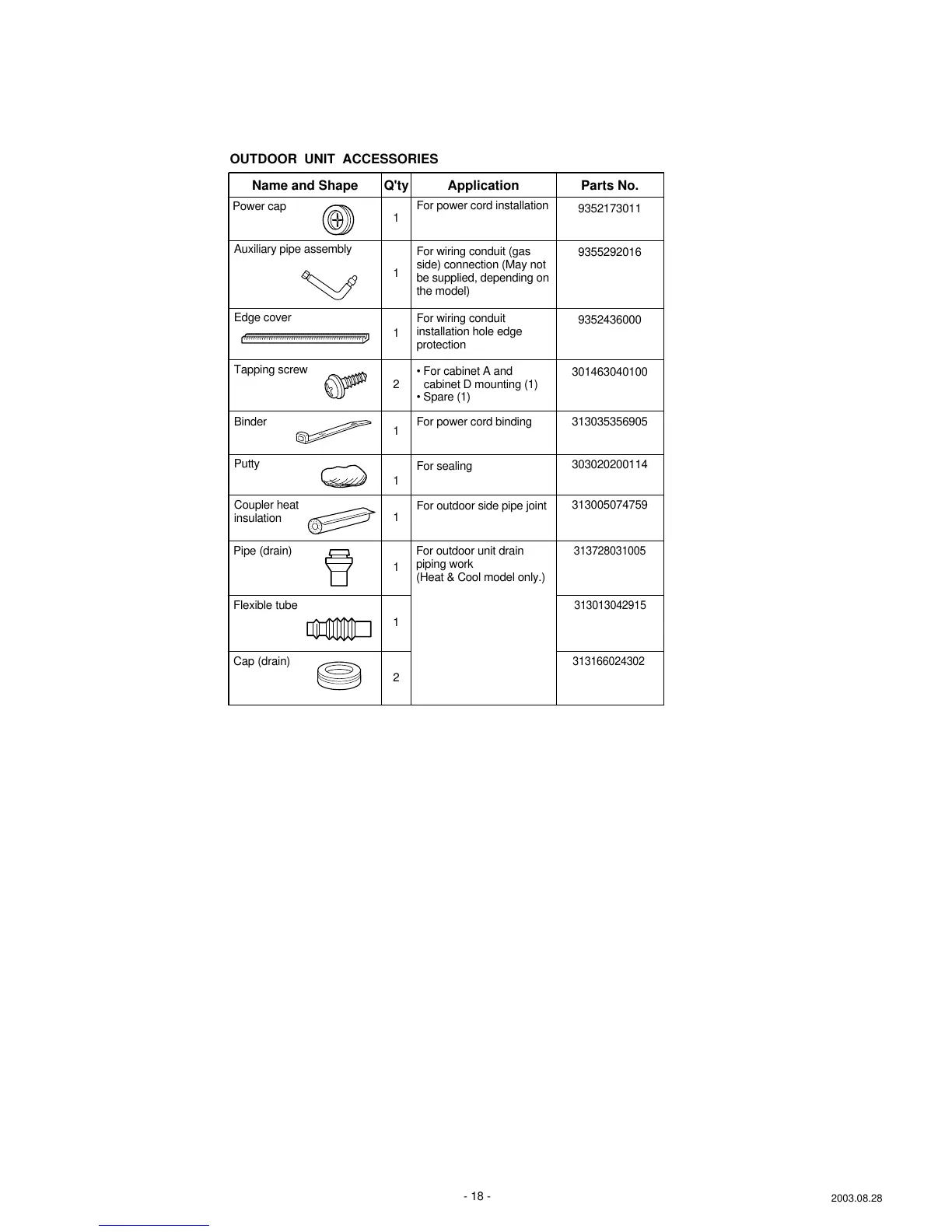

OUTDOOR UNIT ACCESSORIES
