Horizontal Air Direction Adjustment
This instructions are applicable to "CEILING SUSPENSION
TYPE", "FLOOR CONSOLE/UNDER CEILING DUAL TYPE" and
"WALL MOUNTED TYPE".

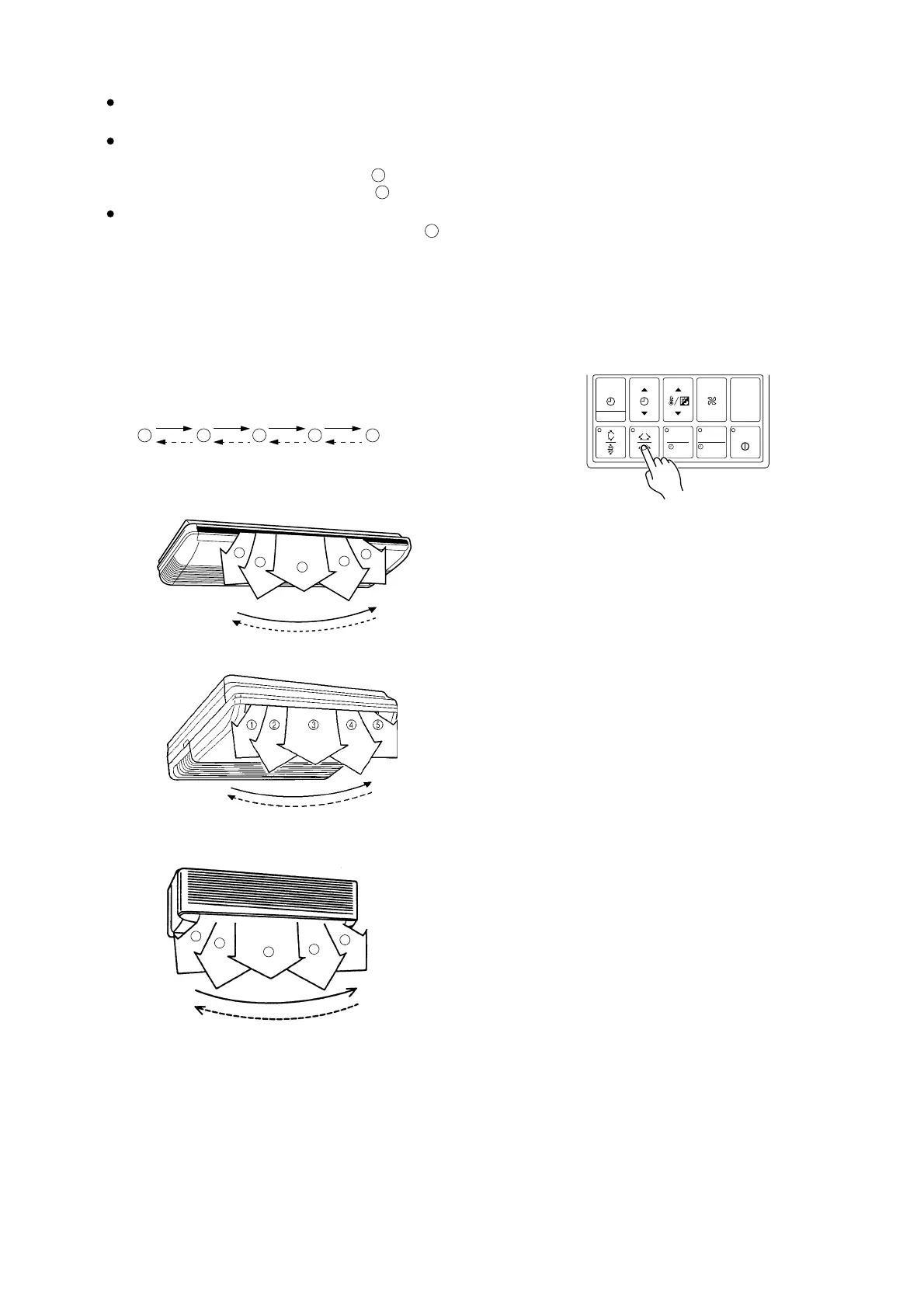

Press the HORIZONTAL AIR FLOW DIRECTION SET button.
Each time the button is pressed, the air direction range will
change as follows:
The remote controller's display does not change.
■ CEILING SUSPENSION TYPE
■ FLOOR CONSOLE/UNDER CEILING DUAL TYPE
■ WALL MOUNTED TYPE
Example : When set to horizontal air direction.
Use the air direction adjustments within the ranges shown
above.
The vertical airflow direction is set automatically as shown,
in accordance with the type of operation selected.
During Cooling mode : Horizontal flow
∗ During Heating mode : Downward flow
During AUTO mode operation, for the first minute after
beginning operation, airflow will be horizontal ; the air
direction cannot be adjusted during this period.
MASTER
CONTROL
FAN
CONTROL
TIMER
MODE
TEMP./DAY
SET TIME
CLOCK ADJUST
START/STOP
SET
DAY OFF
ZONE
ENERGY SAVE
(2) SWING OPERATION
Instructions relating to "the indoor unit's indicator lamp" (∗∗) are
applicable to "CEILING SUSPENSION TYPE", "FLOOR CONSOLE
/UNDER CEILING DUAL TYPE", "CASSETTE TYPE", "WALL MOUNTED
TYPE".
Begin air conditioner operation before performing this procedure.
To select Vertical airflow SWING Operation
This instructions are applicable to "CEILING SUSPENSION
TYPE", "FLOOR CONSOLE/UNDER CEILING DUAL TYPE",
"CASSETTE TYPE" and "WALL MOUNTED TYPE".
1
4
1
1 2 3 4 5
1
3
4
5
1
2
3
4
5
2
– 72 –
