Instructions relating to "the indoor unit's indicator lamp" (**) are
applicable to "CEILING SUSPENSION TYPE", "FLOOR CONSOLE
/UNDER CEILING DUAL TYPE", "CASSETTE TYPE" and "WALL
MOUNTED TYPE".
About Vertical Airflow Swing Operation
The range of swing is relative to the currently set airflow direc-
tion.
If the swing range is not as desired, use the remote controller's
VERTICAL AIR FLOW DIRECTION SET button to change the
range of swing.
The SWING operation may stop temporarily when the air condi-
tioner's fan is not operating, or when operating at very low
speeds.
During use of the Cooling mode, do not set the air UP/ DOWN
direction flap, in the position for long periods of time, since
water vapor may condense near the outlet port and drops of
water may drip from the air conditioner.
About Horizontal Airflow Swing Operation
The range of swing is relative to the currently set airflow direc-
tion.
If the swing range is not as desired, use the remote controller's
HORIZONTAL AIR FLOW DIRECTION SET button to change
the range of swing.
The SWING operation may stop temporarily when the air condi-
tioner's fan is not operating, or when operating at very low
speeds.
Air flow direction set
Range of swing
to
to
to
to (All range)
Air direction range (See page 22)
Air direction range (See page 23)

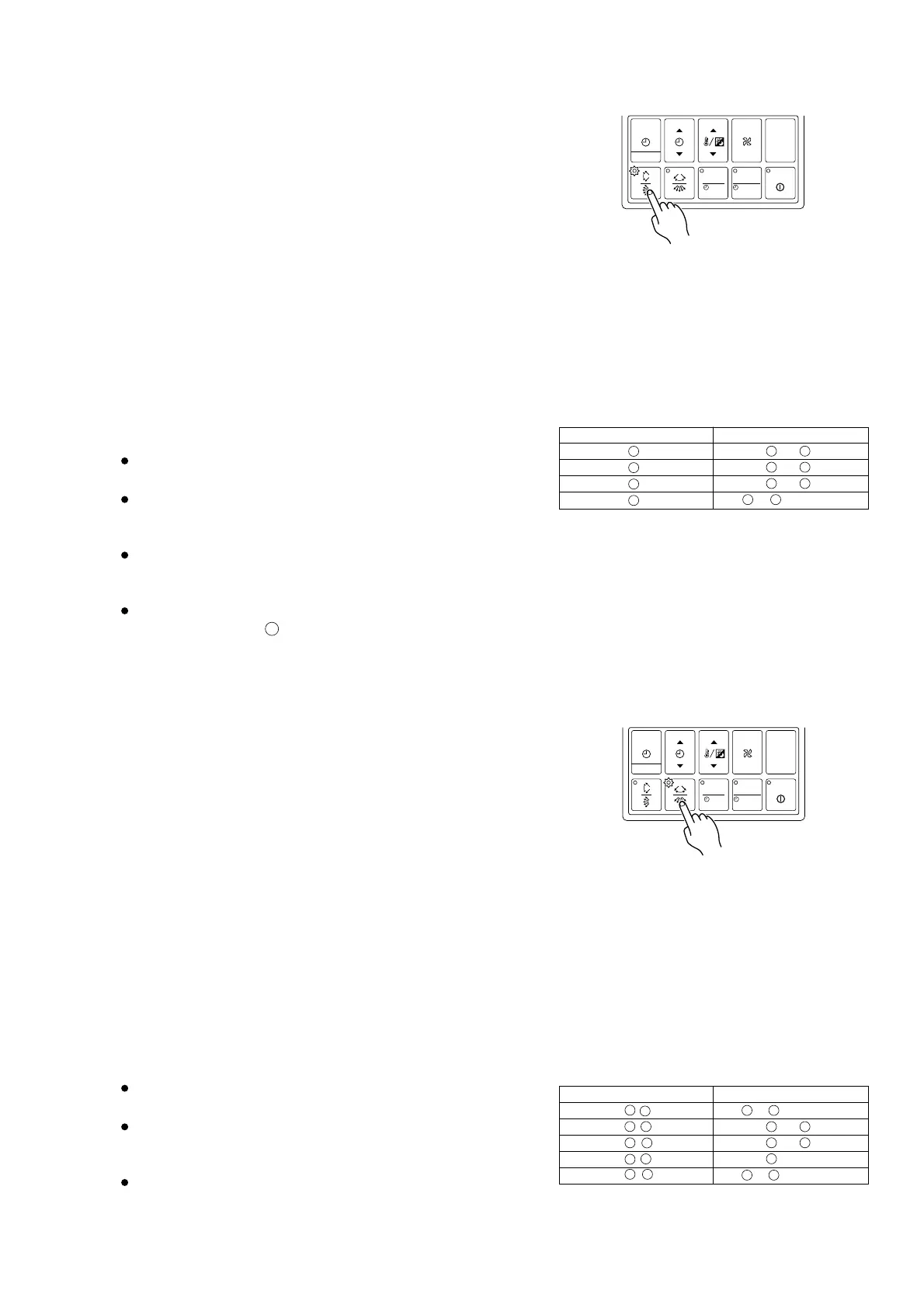

To select Horizontal Airflow SWING Operation
This instructions are applicable to "CEILING SUSPENSION
TYPE", "FLOOR CONSOLE/UNDER CEILING DUAL TYPE" and
"WALL MOUNTED TYPE".
Press the HORIZONTAL SWING button for more than two seconds.
The remote controller's HORIZONTAL SWING lamp (orange)
**and indoor unit's SWING indicator lamp (HORIZONTAL
SWING) (orange) will light up.
In this mode, the RIGHT/LEFT air direction louvers will swing
automatically to direct the airflow both right and left.
To Stop Horizontal airflow SWING Operation
Press the HORIZONTAL SWING button for more than two seconds
once again.
The remote controller's HORIZONTAL SWING lamp **and indoor
unit's SWING indicator lamp (HORIZONTAL SWING) will go out.
Airflow direction will return to the setting before swing was begun.
Example : When set to horizontal swing.
Example : When set to vertical swing.
Press the VERTICAL SWING button for more than two seconds.
The remote controller's VERTICAL SWING lamp (orange) **and
indoor unit's SWING indicator lamp (VERTICAL SWING)
(orange) will light up.
In this mode, the UP/DOWN air direction flaps will swing automat-
ically to direct the air flow both up and down.
To Stop Vertical airflow SWING Operation
Press the VERTICAL SWING button for more than two seconds
once again.
The remote controller's VERTICAL SWING lamp **and indoor
unit's SWING indicator lamp (VERTICAL SWING) will go out.
Airflow direction will return to the setting before swing was begun.
MASTER
CONTROL
FAN
CONTROL
TIMER
MODE
TEMP./DAY
SET TIME
CLOCK ADJUST
START/STOP
SET DAY OFF
ZONE ENERGY SAVE
MASTER
CONTROL
FAN
CONTROL
TIMER
MODE
TEMP./DAY
SET TIME
CLOCK ADJUST
START/STOP
SET DAY OFF
ZONE ENERGY SAVE
Air flow direction set
Range of swing
to (All range)
to
to
to
to (All range)
4
1
2
3
4
1
2
2
3
4
4
1 4
1
1
1
1
1
1
1
2
3
1 5
3
4
5
– 73 –
