92003.10.17

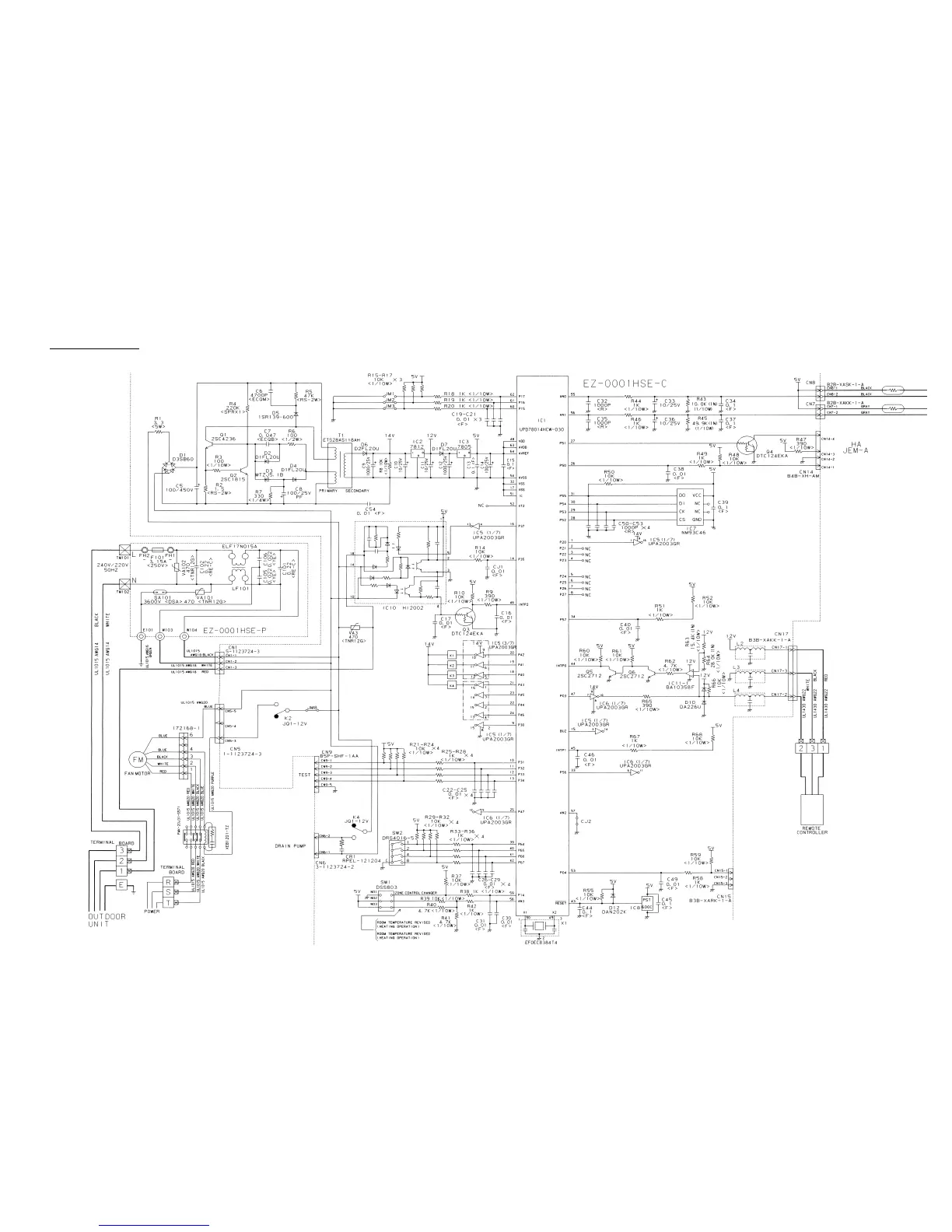

IN DOOR PR IN T E D CIR CU IT B O A R D
CIR CU IT DIA G R A M
Model : ARG90ELC3
ARY90ELC3
ROOM TEMP. CORRECTION (COOL)
FREEZING PREVENTION
TEMPERATURE CHANGER
SWITCHING TRANSFOR MER
POWER SUPPLY PCB
CR COMPOSITE
ELECTRO-
MAGNETIC
SWITCH A
415V/380V
50Hz
ROOM TEMPERATURE THERMISTOR
HEAT EXCHANGER THERMISTOR
EZÐ0001WSEÐR
CONTROLLER PCB ASSEMBLY (MAIN PCB)
