Fujitsu AOY90TPC3L User Manual

142003.10.17
Models : ARG90ELC3 / AOG90EPD3L
ARY90ELC3 / AOY90EPD3L

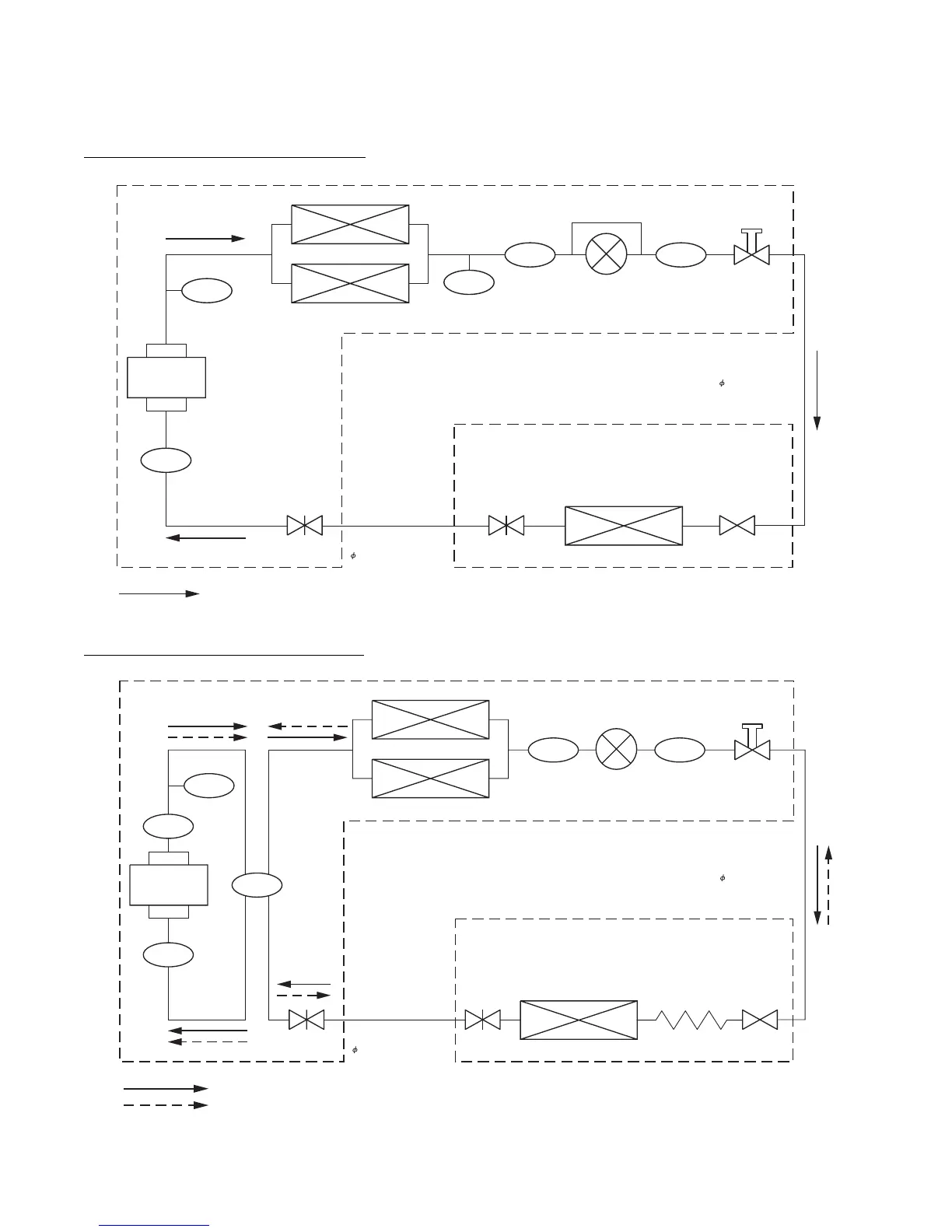

R E FR IG E R A N T S Y S T E M DIA G R A M
Models : ARG90TLC3 / AOG90TPC3L
ARY90TLC3 / AOY90TPC3L
Cooling
Heating
Dryer
Check Valve
Pressure SW
4Way Valve
Accumulator
Condenser
Tandem
Compressor
Evaporator
FlangeRefrigerant Pipe
28.58 mm (1-1/8")
Electronic
Expansion
Valve
Charging Valve
Strainer
FlareCapillary TubeFlange
Refrigerant Pipe
12.7 mm (1/2")
Dryer
Check Valve
Pressure SW
Accumulator
Condenser
Tandem
Compressor
Evaporator
FlangeRefrigerant Pipe
28.58 mm (1-1/8")
Electronic
Expansion
Valve
Charging Valve
Strainer
FlareFlange
Refrigerant Pipe
12.7 mm (1/2")
Cooling

Fujitsu AOY90TPC3L Specifications

General

Brand	Fujitsu
Model	AOY90TPC3L
Category	Air Conditioner
Language	English
