En-11

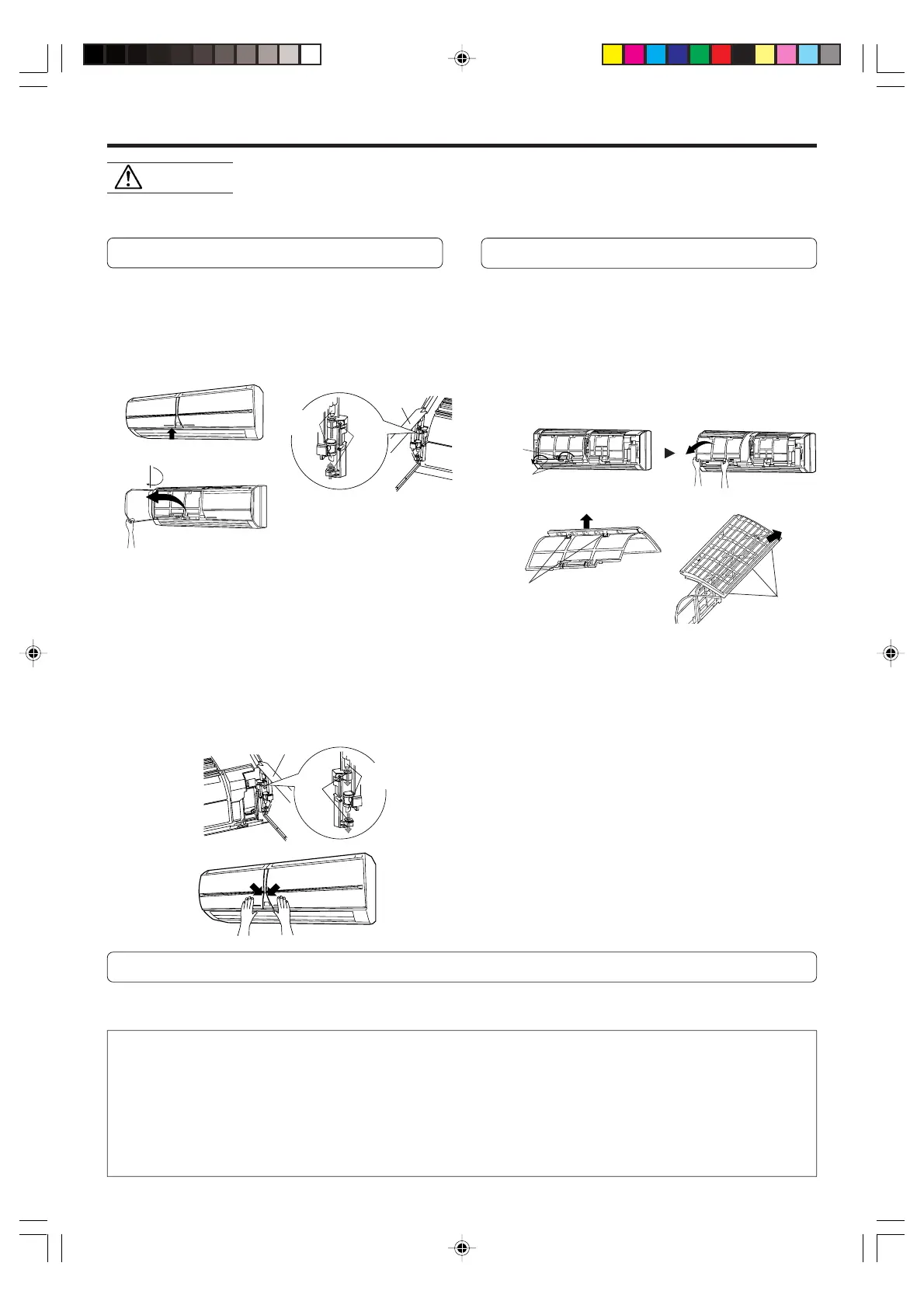

Cleaning the Air Filter
1. Open the Open Panel, and remove the Air
Filter.
1 Raise the Air Filter handle and remove the bottom of
hooks (two places). Hold both sides with hand and
pull it out (At this time, the Grill will be pulled out to-
gether with the Air filter).
2 Raise the hooks of the Grille close to you and remove.
3 Remove the hooks at the back of the Grille.
2. Remove dust with a vacuum cleaner or by
washing.
After washing, allow to dry thoroughly in a shaded place.
3. Replace the Air Filter and close the Open
Panel.
Install the Air Filter in the adverse procedure with 1.
● Dust can be cleaned from the Air Filter either with a
vacuum cleaner, or by washing the filter in a solution of
mild detergent and warm water. If you wash the filter, be
sure to allow it to dry thoroughly in a shady place before
reinstalling.
● If dirt is allowed to accumulate on the Air Filter, air flow
will be reduced, lowering operating efficiency and increas-
ing noise.
● During periods of normal use, the Air Filters should be
cleaned every two weeks.
Cleaning the Open Panel
1. Remove the Open Panel.
1 Put the hand at the arrowhead and pull the Open Panel
to 90°C ahead of you, then open it.
2 Raise the Open Panel and remove it.
3 Remove the other side Open Panel in the same proce-
dure of 1 and 2.
2. Clean with water.
Remove dust with a vacuum cleaner; wipe the unit with
warm water, then dry with a clean, soft cloth.
3. Replace the Open Panel.
1 Insert the mounting shafts of the Open Panel into the
hole of the hinge and install it.
2 Install the Open Panel at the other side in the same
procedure with 1 .
3 Press the place where the arrow on the diagram indi-
cates and close the Open Panel.
CLEANING AND CARE
CAUTION!
● Before cleaning the air conditioner, be sure to turn it off and disconnect the Power Supply Cord.
● Be sure the Open Panel (Fig. 1 0) is installed securely.
● When removing and replacing the Air Filters, be sure not to touch the heat exchanger, as per-
sonal injury may result.
When using the optional Air Cleaning Filter
● Install the optional Air Cleaning Filter set (UTR-FA11-1) as instructed (installation instructions are furnished with the Air
Cleaning Filter set).
● When used for extended periods, the unit may accumulate dirt inside, reducing its performance. We recommend that the
unit be inspected regularly, in addition to your own cleaning and care. For more information, consult authorized service
personnel.
● When cleaning the unit’s body, do not use water hotter than 40 °C, harsh abrasive cleansers, or volatile agents like
benzene or thinner.
● Do not expose the unit body to liquid insecticides or hairsprays.
● When shutting down the unit for one month or more, first allow the fan mode to operate continuously for about one-half
day to allow internal parts to dry thoroughly.
Hooks
(two places)
Hinge
hole
Open Panel
Mounting
shaft
Hinge
hole
Open Panel
Handle
Hooks
(two places)
Hooks
(three places)
Mounting
shaft
9312556014-En.pm6.5 2003.1.28, 6:41 PM11
