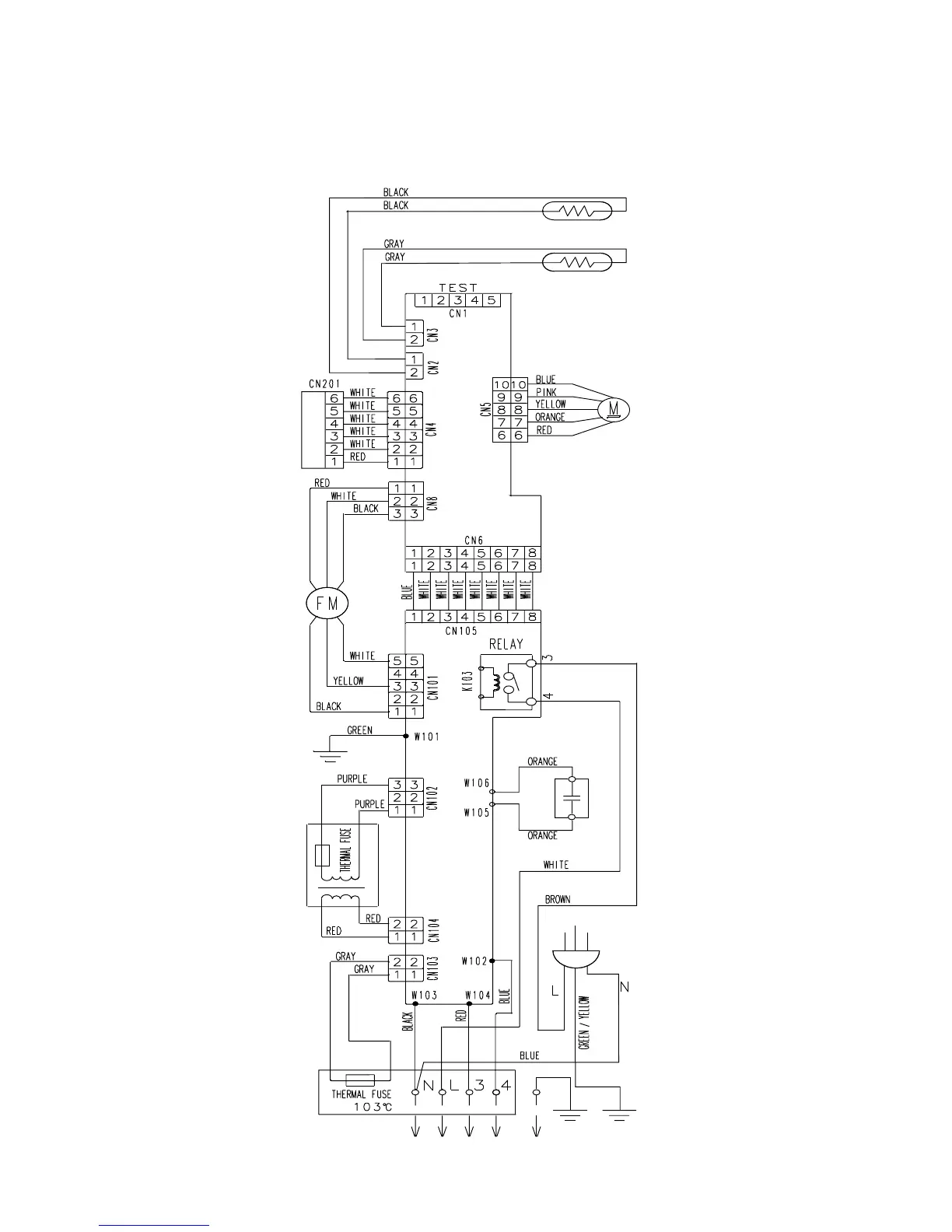

CIRCUIT DIAGRAM
INDOOR UNIT
Thermistor
(Room Temp.)
Thermistor
(Pipe Temp.)
Controller PCB
Display PCB
Terminal
Fan Motor
Capacitor
Stepping Motor
Transformer
Fan Motor
Power Supply PCB
52005.01.07
