21

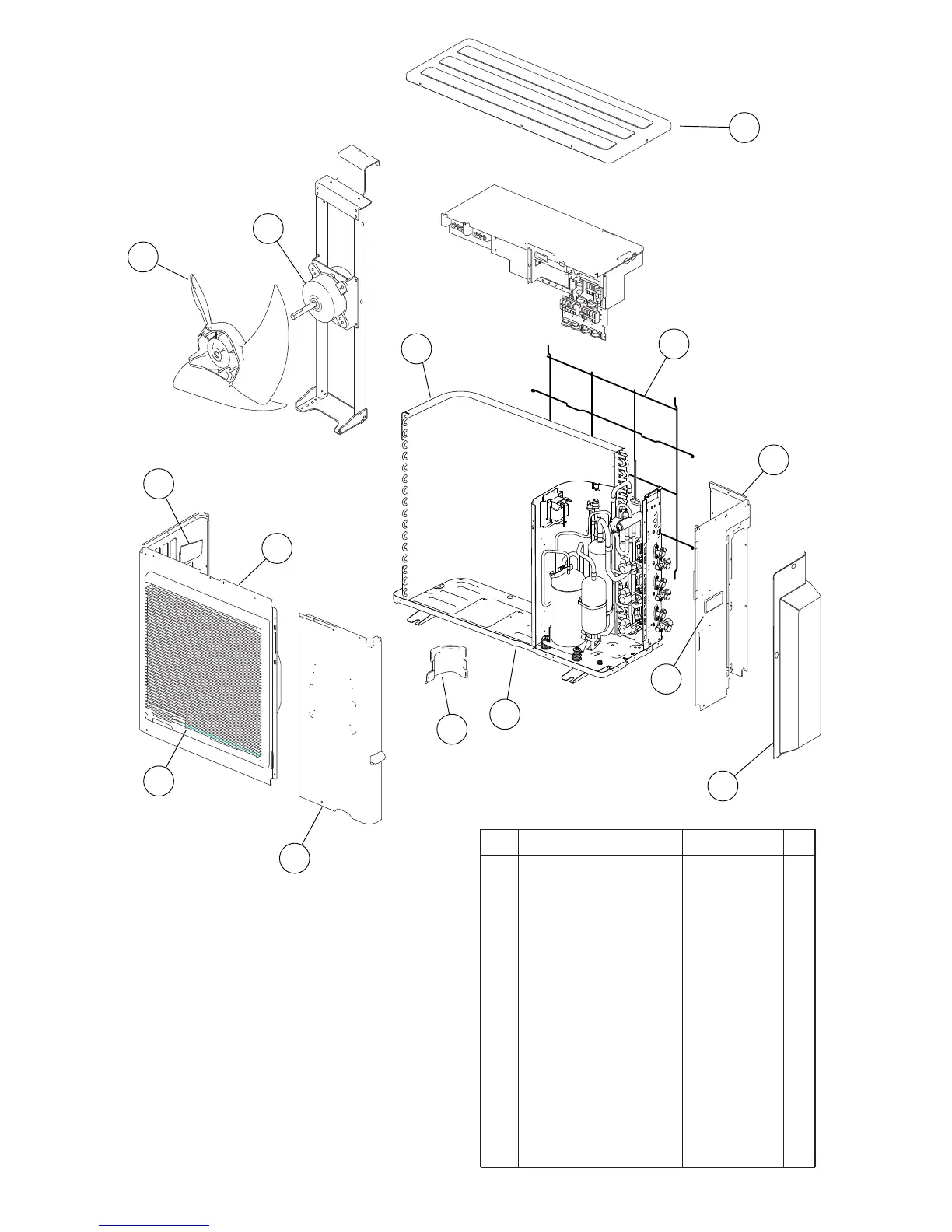

OUTDOOR UNIT
3
4
2
13
8
7
12
11
14
1
10
9
6
5
1 Top Panel Sub Assy
2 Front Panel
5
Service Panel Sub Assy
6
Right Panel
8
Valve Cover Sub Assy
3
Fan Guard
9 Propeller Fan Assy
10 Fan Motor
12
Base Assy
13 Cap Foot
14 Protective Net
9374417049
9374094080
9374415045
9374599042
9374827015
7
Grip
9374172016
9374330010
4
Grip Side 9374173013
9366378020
9601882015
11
Condencer A Assy
9374433179
9374166121
9374345014
9375381028
-- Emblem Rear 9351355005
Ref. Description Part number
2008.01.21
