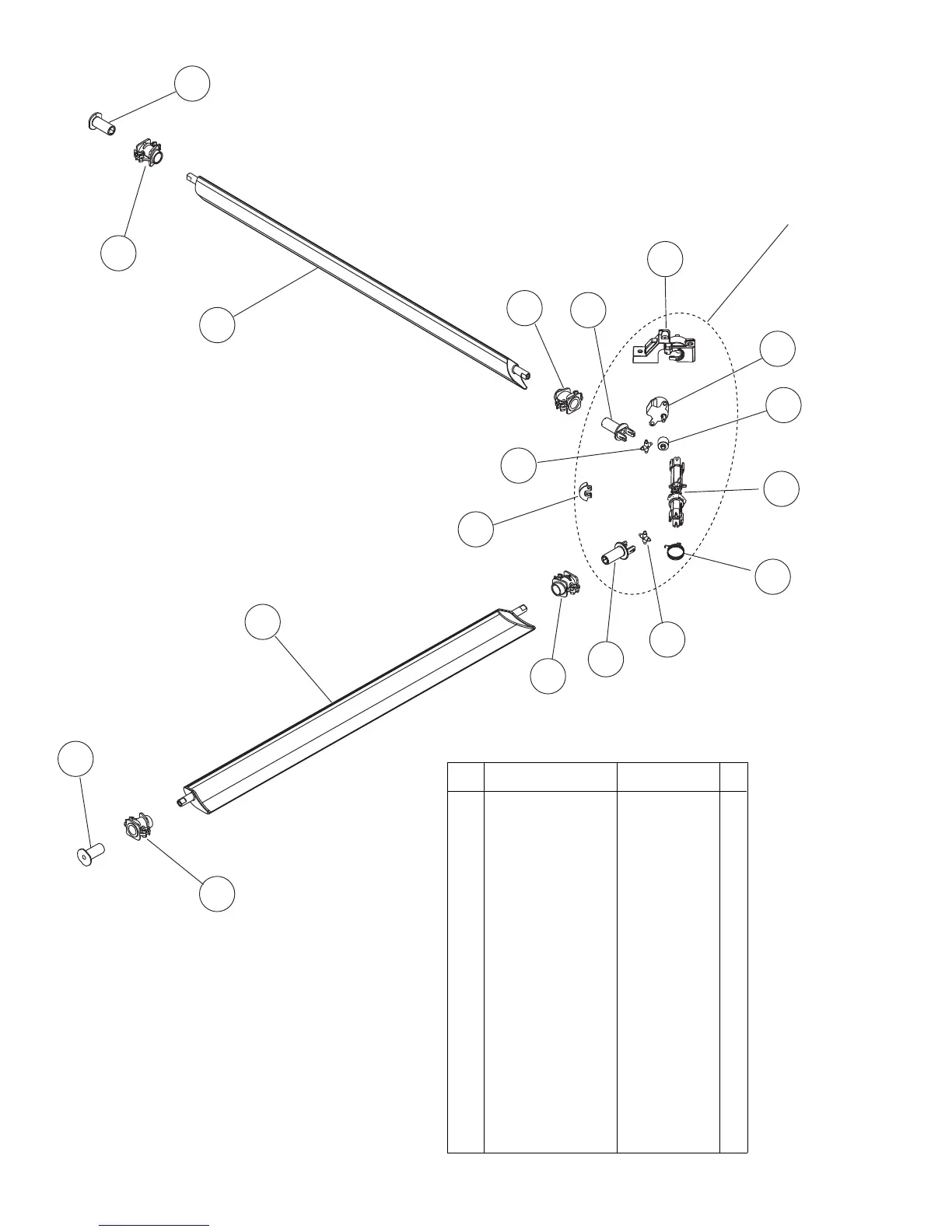

21 Flap
22 Poli Slider
31 Flap Spring
28 Joint B
25 Gear A
26 Motor Holder
24 Step motor
30 Joint Shaft
23 Joint C
2011.02.04
DECORATION PANEL
UTG-UGYA-W
Motor holder assy
23
9378254015
9375541019
27 Joint A 9378258013
9378356016
9378259010
9378256019
9378255012
9900467005
9378260016
9378357013
29 Gear B 9378257016
-- Wire (Step Motor) 9707869019
-- Wire (Step Motor) 9707869026
Ref. Description Part number
24
25
22
23
21
30
29
27
22
27
26
30
22
31
28
23
22
21
